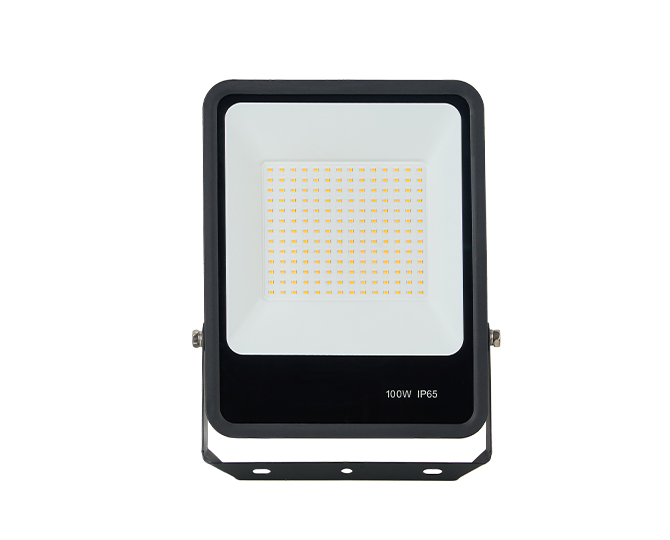

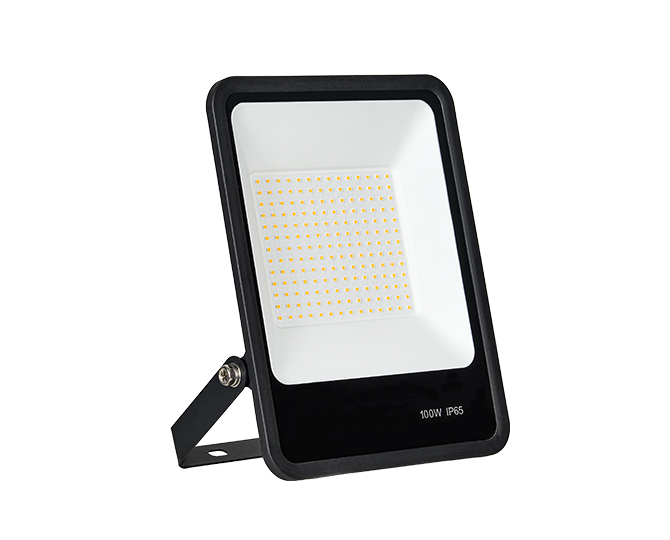

F02-100

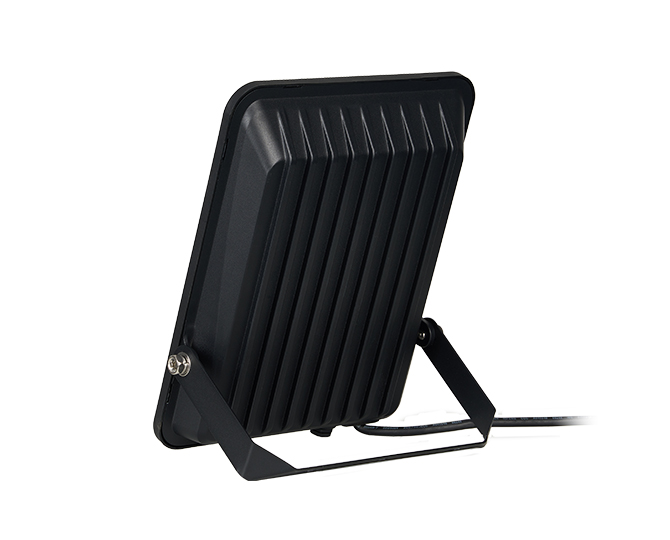

Integrated die-cast shell, anti-corrosion spraying surface, with flow channel heat dissipation, and good heat dissipation effect.

The products have seamless front frame, no screws, smooth lines and simple appearance.

Integrated die-cast shell, anti-corrosion spraying surface, with flow channel heat dissipation, and good heat dissipation effect.

Using tempered glass, with high light transmittance, anti-UV aging, no deformation, and no yellowing.

IP65 & IK06.

Built-in anti-siphon device, it is safe and reliable.

The bracket can be installed directly by an electric batch, making the installation more convenient and flexible.

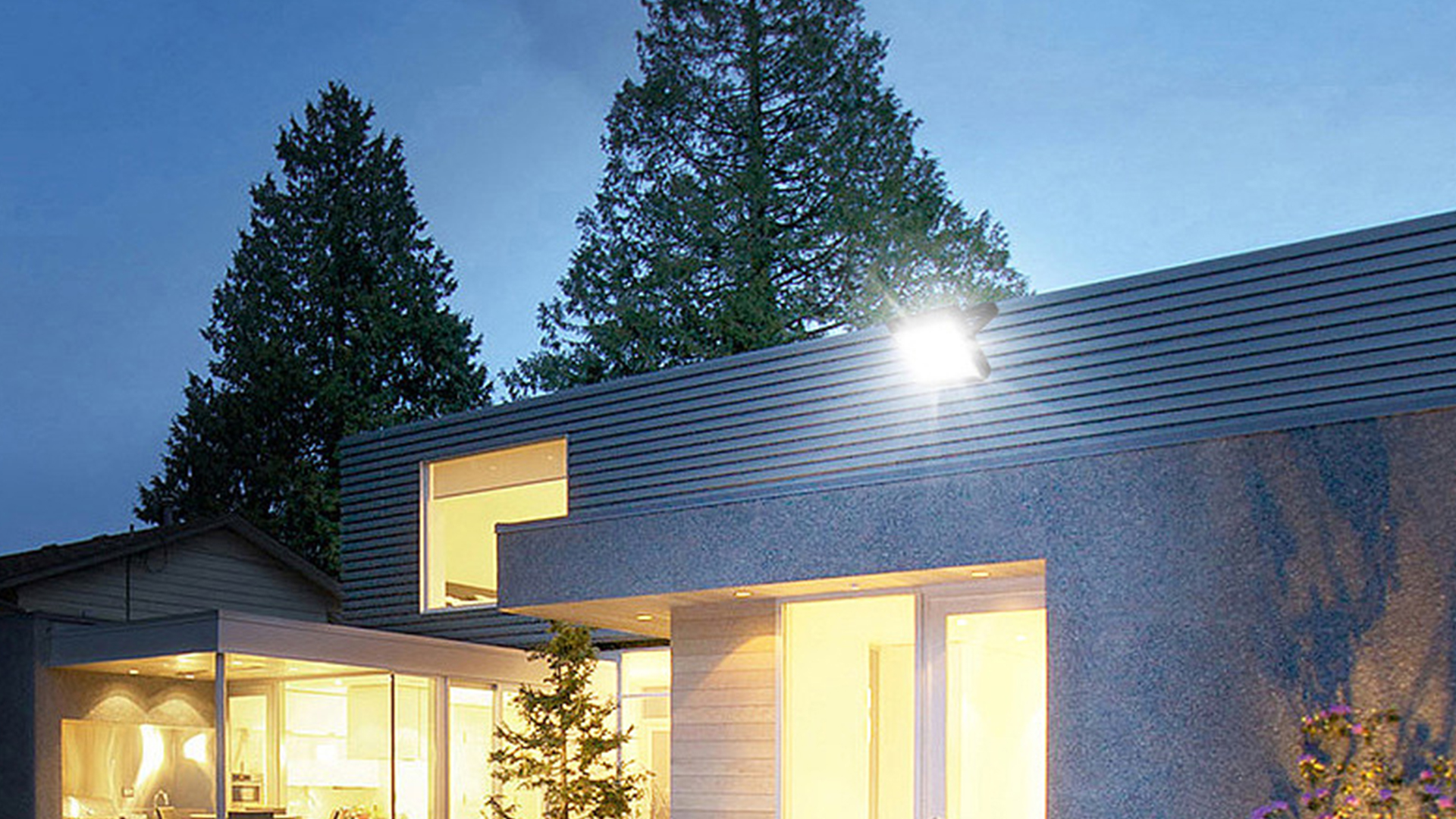

It should be used in outdoor parking lots, courtyards, sports fields, squares, billboards and other indoor or outdoor places.

Quotation
Material
Integrated die-cast housing,tempered glass surface
Light source
High efficiency SMD LEDs
Protection
IP65 & IK06
Specification

Optical Parameters

Model

F02-50

F02-100

F02-150

F02-200

Power

50W

100W

150W

200W

LED Chip

SMD 2835 18V 1W

LED Chip Quantity

70LEDs

140LEDs

210LEDs

280LEDs

Luminous Flux

3000K

4,500lm

8,910lm

13,290lm

17,300lm

4000K

4,800lm

9,750lm

14,540lm

19,010lm

6500K

5,100lm

9,990lm

14,900lm

19,480lm

Luminous Efficiency(3000K)

≥95lm/W

CCT

3000K,4000K ,6500K

CRI

Ra≥80

SDCM

SDCM≤5

Beam Angle

120°

Electrical and Mechanical Performance

Input Voltage

AC200-240V,50/60Hz

Rated Current

0.23A

0.45A

0.68A

0.91A

Power Factor

≥0.92

THD

<20%

Electrical Protection Level

Class I

Surge Protection

L-N 2KV   L/N-PE 4KV

Control Method

ON/OFF

Shell Material

lamp body: die-cast aluminum    light-emitting surface: glass

Surface Treatment

Surface spray / black

Cable

3x0.75mm² rubber thread(L=240mm)

Size(LxWxH)
  (not include stand)

190x165x34mm

270x213x38mm

315x260x46mm

361x301x47mm

Weight

0.55kg

1.13kg

1.6kg

2.2kg

Waterproof

Waterproof structure, built-in   anti-siphon device

Protection Level

IP65    IK06

Installation

Bracket fixed installation

Optional Accessories

/

System Technical Specifications

Applications

Indoor/Outdoor

Working Temperature

-30℃ ~ 45℃

Storage Temperature

-25℃~ 50℃

Lifespan

L70@25℃  30000H

Standards

IEC 60598-1:2014

Certifications

CE


Light Distribution
BEAM ANGLE (50%%)C0-180,C90-270: 107.8 DEG,111.4 DEG
BEAM ANGLE (50%%)C0-180,C90-270: 107.8 DEG,111.4 DEG
C0-180
C90-270

Model

CCT(K)

Beam   Angle

Luminous Flux

(lm)

Luminous Efficiency

(lm/W)

Center   luminous intensity

(cd)

F02-50

3000

120°

4500

93

1900

F02-100

3000

120°

8910

93

3370

F02-150

3000

120°

13290

95

5000

F02-200

3000

120°

17300

98

6600

Dimensions
F02尺寸图01
F02尺寸图02

Models

L

L1

W

H

D1

W1

L3

F02-50

190

224

165

34

ф6.5

12.5

90

F02-100

270

302

213

38

Ф9

15

130

F02-150

315

346

260

46

Ф9

15

130

F02-200

361

395

301

47

Ф9

15

130

Size Unit:mm

×
