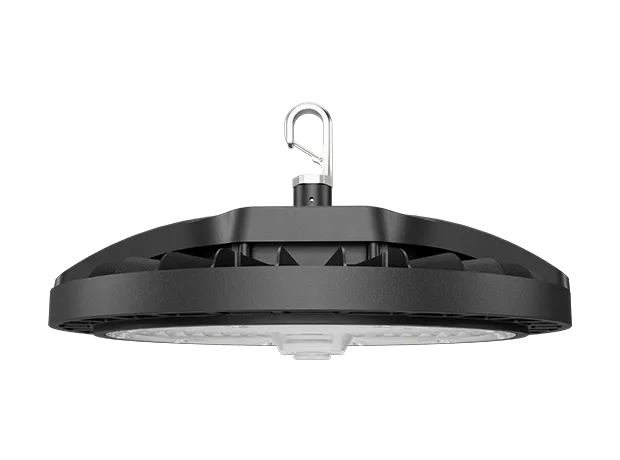

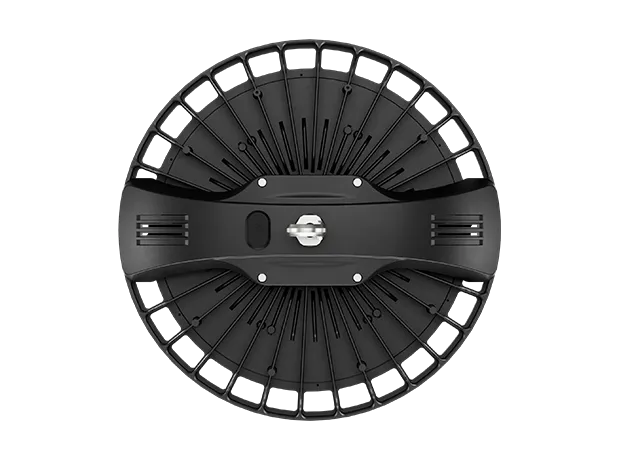

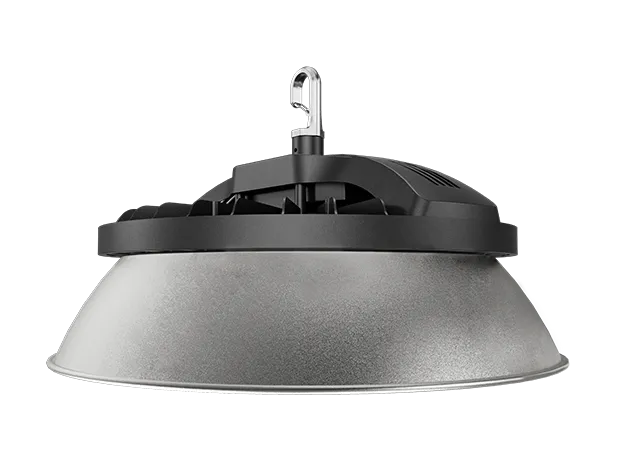

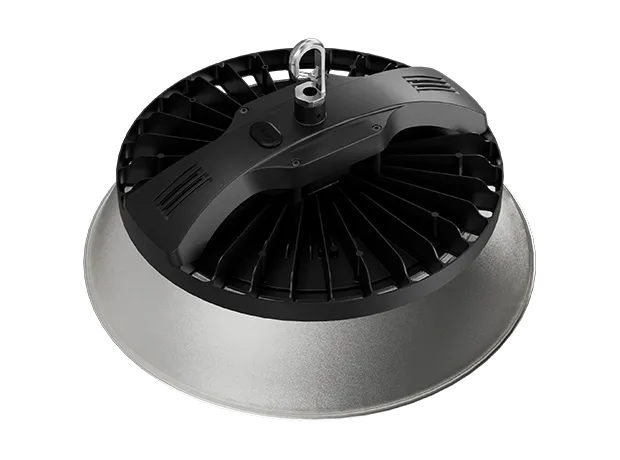

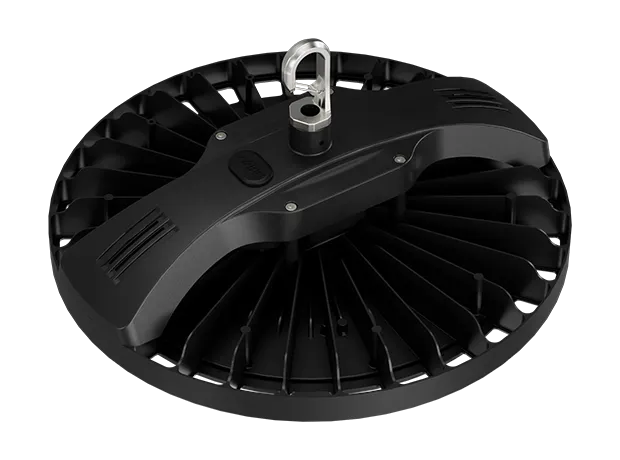

HIPO Industrial LED High Bay Light
1. Patented streamlined exterior design is unique and consistent with visual comfort.
2. Separated modules for driver and housing, which is good for heat dissipation and replacement. Conduction and convection heat dissipation design allows products can be used in-35℃ ~+50℃ environment.
3. Redundant light source design ensures high light efficiency, low light depreciation.
4. Elastic hooks facilitates overhead lifting and prevent loosening without additional locking screws.
5. Integrated round PC optical lens ensure high light transmittance efficiency and uniform light output. Optional light shield accessory can help to reduce glare.
6. Fastening structure between the lens and housing, effectively prevent the lens from heat deformation affecting the light effect.
7. Die-casting aluminum housing and anti-corrosion surface treatment to prevent rust and corrode in complex and harsh environments.
8. Suspension installation by hanging hook or hanger bar, sidewall and ceiling mounting by U-shape bracket are available.
Applications
High shed factory building
Logistics center
Exhibition site
Workshop warehouse，stadium
Specification
| Optical System | |||||
| Model | U03-100 | U03-150 | U03-200 | U03-240 | |
| Power(Tunable) | 60W | 80W | 120W | 150W | |
| 80W | 120W | 150W | 200W | ||
| 100W | 150W | 200W | 240W | ||
| LED type | SMD 2835 | ||||
| LED Chip Quantity | 168LEDs | 252LEDs | 336LEDs | 420LEDs | |
| Luminous output | 4000K | 15,000lm | 23,000 lm | 30,000 lm | 36,000 lm |
| 5700K | 13,500 lm | 19,400 lm | 27,100 lm | 31,000 lm | |
| Luminous Efficiency | 150±10 lm/W | ||||
| CCT(Tunable) | 4000K/5700K | ||||
| CRI | Ra≥80 | ||||
| SDCM | SDCM≤5 | ||||
| Beam Angle | 60° 90° 120° | ||||
| UGR | ＜22 | ||||
| Electrical and Mechanical Performance | |||||
| Input Voltage | AC120~277V 50/60Hz | ||||
| Rated Current | 0.45A | 0.68A | 0.94A | 1.09A | |
| Power Factor | ≥0.92 | ||||
| THD | ＜20% | ||||
| Electrical Protection Level | Class I | ||||
| Surge Protection | L-N 4KV L/N-PE 6KV | ||||
| Control Method | ON/off | ||||
| Material | Housing: die-cast aluminum, Surface: PC | ||||
| Surface Treatment | Surface Painted/Dark Grey | ||||
| Cable | 3x 1mm² rubber thread（L=240mm） | ||||
| Size(Ring and bracket not included) | Ø240×108 | Ø290×110 | Ø330×116 | Ø330×116 | |
| Weight（Net Weight） | 1.6kg | 1.8kg | 2.2kg | 2.3kg | |
| Waterproof mode | Structural waterproof | ||||
| Protection Level | IP65 IK08 | ||||
| Installation | Hanging mounting | ||||
| Optional Accessories | Anti-glare reflector, U-shaped bracket | ||||
| System Technical Specifications | |||||
| Applications | Indoor/outdoor | ||||
| Working Temperature | -35℃ ~ +50℃ | ||||
| Storage Temperature | -40℃~ +85℃ | ||||
| Lifespan | L70@25℃ 30000H | ||||
| Standards | GB7000.1-2015/IEC 60598-1：2014 | ||||

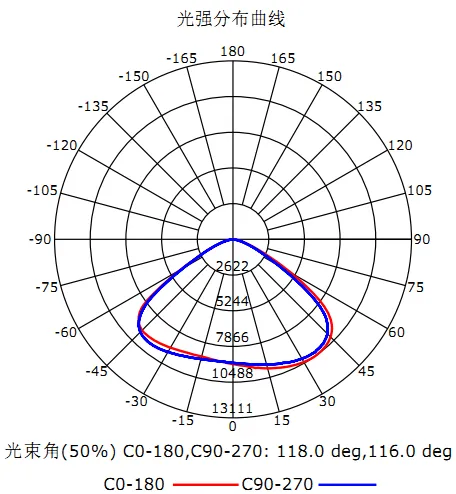

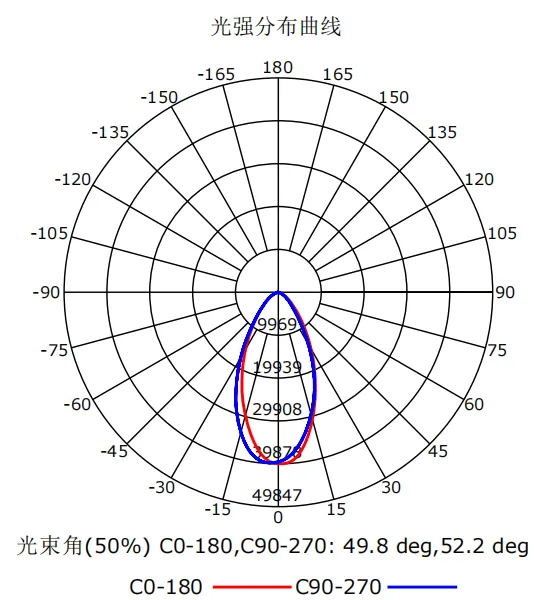

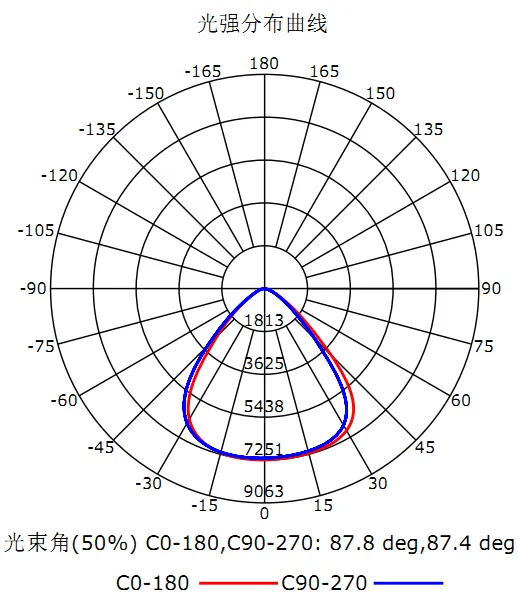

Light Distribution
| Model | CCT | Beam angle | Luminous output(lm) | Efficacy(lm/W) | Center Luminous Intensity(cd) |
| U03-100 | 4000K | 90° | 15950 | 160 | 8360 |
| U03-150 | 4000K | 90° | 25300 | 165 | 13200 |
| U03-200 | 4000K | 90° | 33100 | 165 | 16630 |
| U03-240 | 4000K | 90° | 39800 | 168 | 19550 |

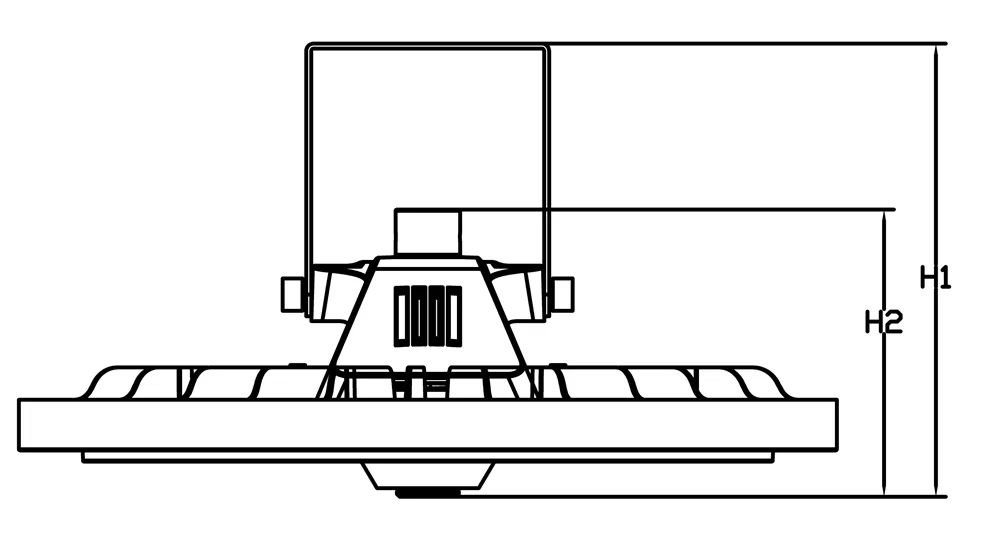

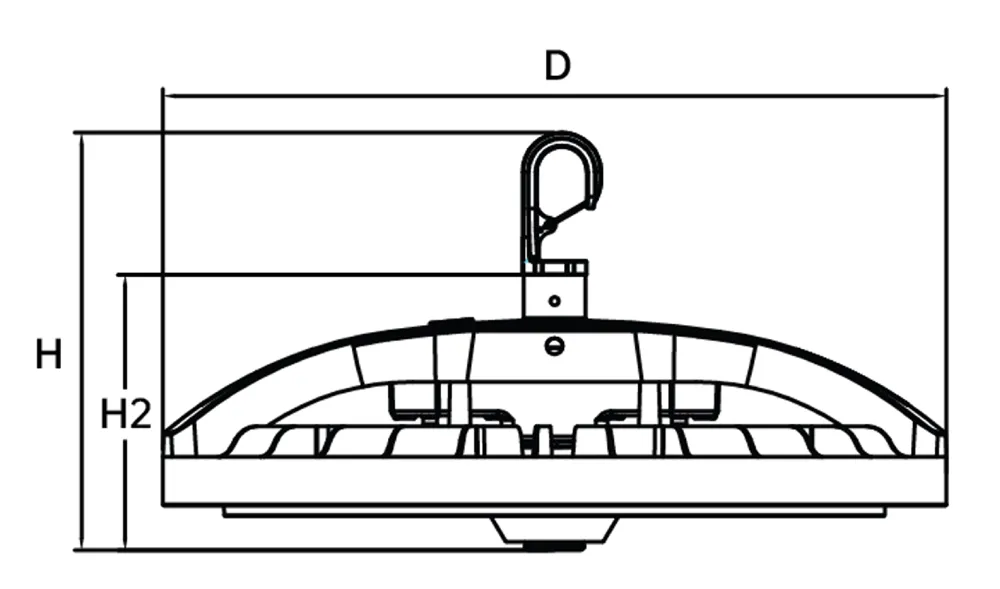

Dimensions
| Model | D | H | H1 | H2 |
| U03-100 | Ø240 | 168 | 175 | 108 |
| U03-150 | Ø290 | 170 | 176 | 110 |
| U03-200 | Ø330 | 176 | 183 | 116 |
| U03-240 | Ø330 | 176 | 183 | 116 |
| Unit:mm | ||||

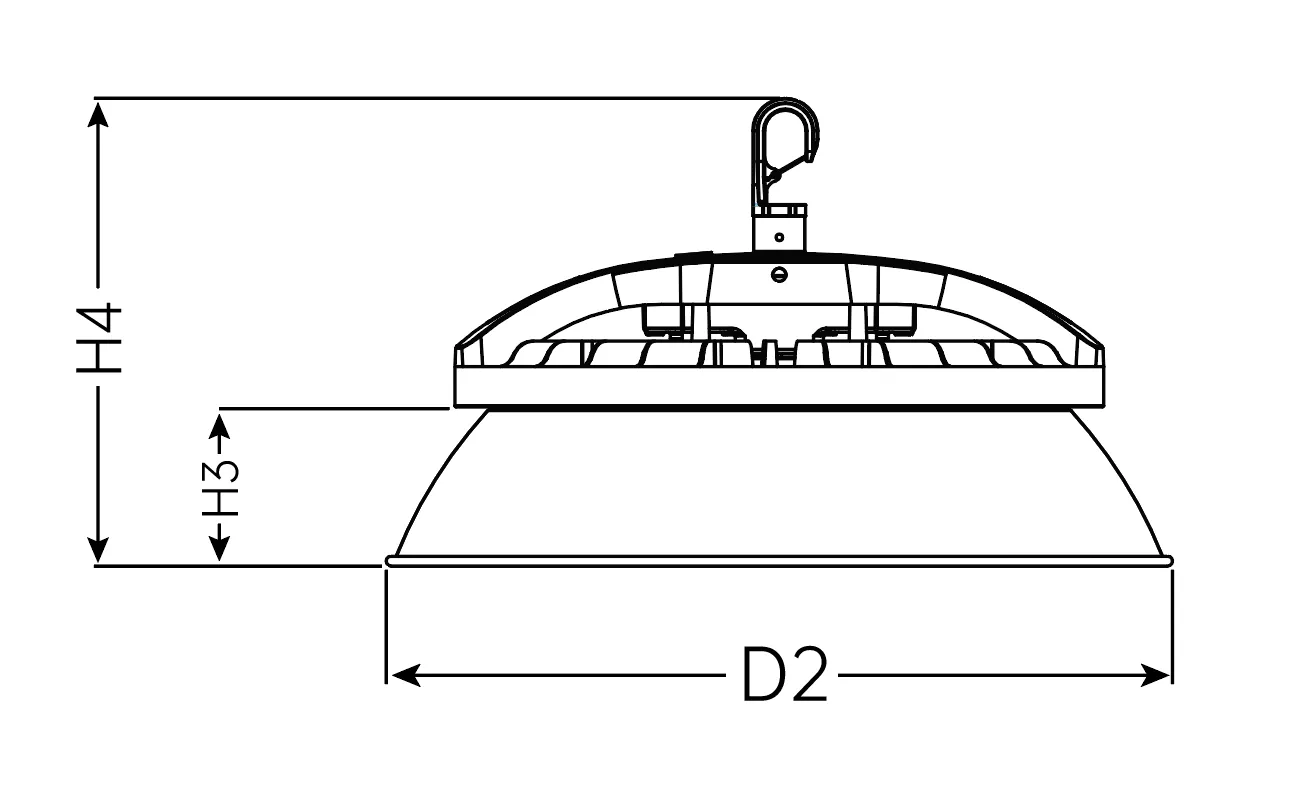

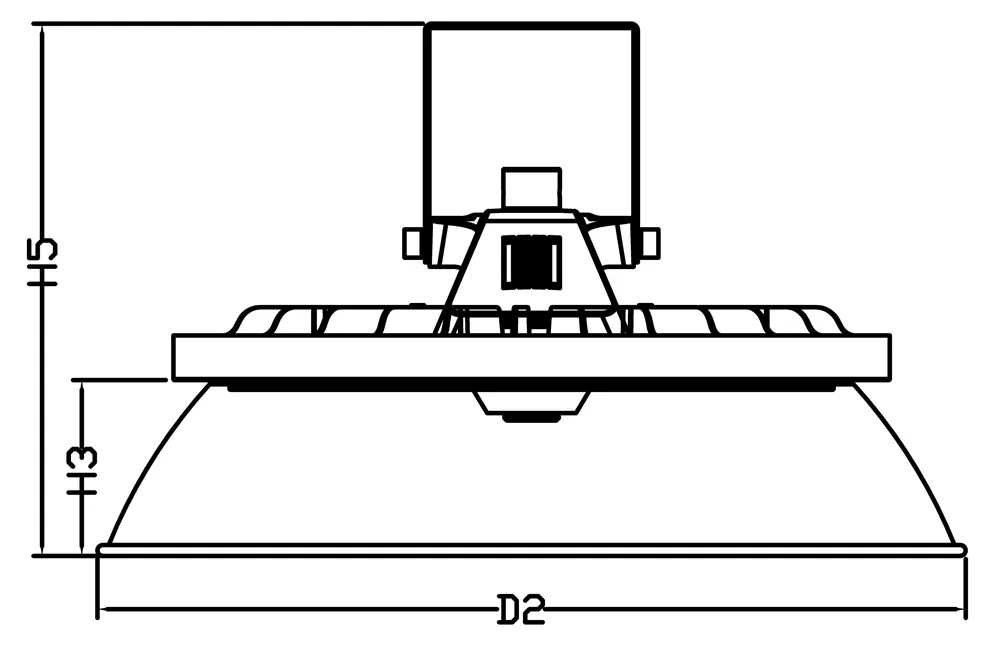

Dimensions of anti-glare cover accessory
| Model | U03-100 | U03-150 | U03-200 | U03-240 |
| D2 | Ø300 | Ø360 | Ø400 | Ø400 |
| H3 | 70 | 75 | 80 | 80 |
| H4 | 220 | 229 | 238 | 238 |
| H5 | 227 | 235 | 245 | 245 |
| Unit：mm | ||||

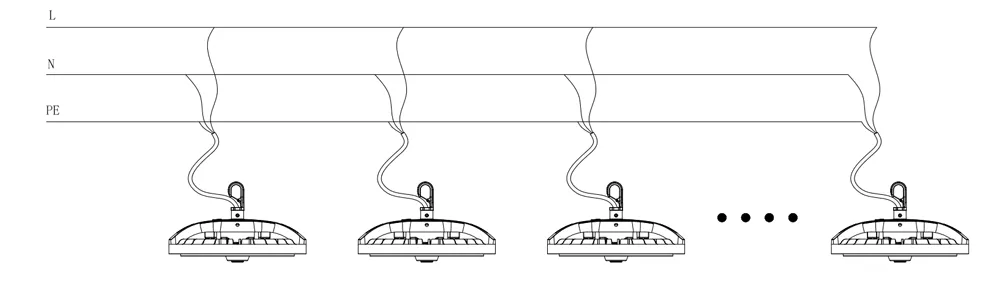

Wiring Diagram

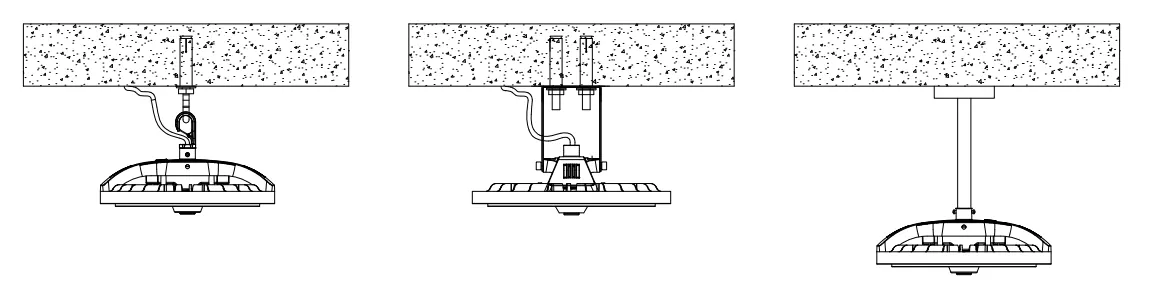

Installation Diagram
Installation instructions: 3 installation method: suspended by hook, by hanger bar,and U-shaped bracket mounted. When suspended mounted, light illuminated downward. When U-shaped bracket mounted, light fixture can be adjusted ±90°.The illumination angle is adjusted according to the actual needs.
Lighting Accessories
Anti-glare Reflector

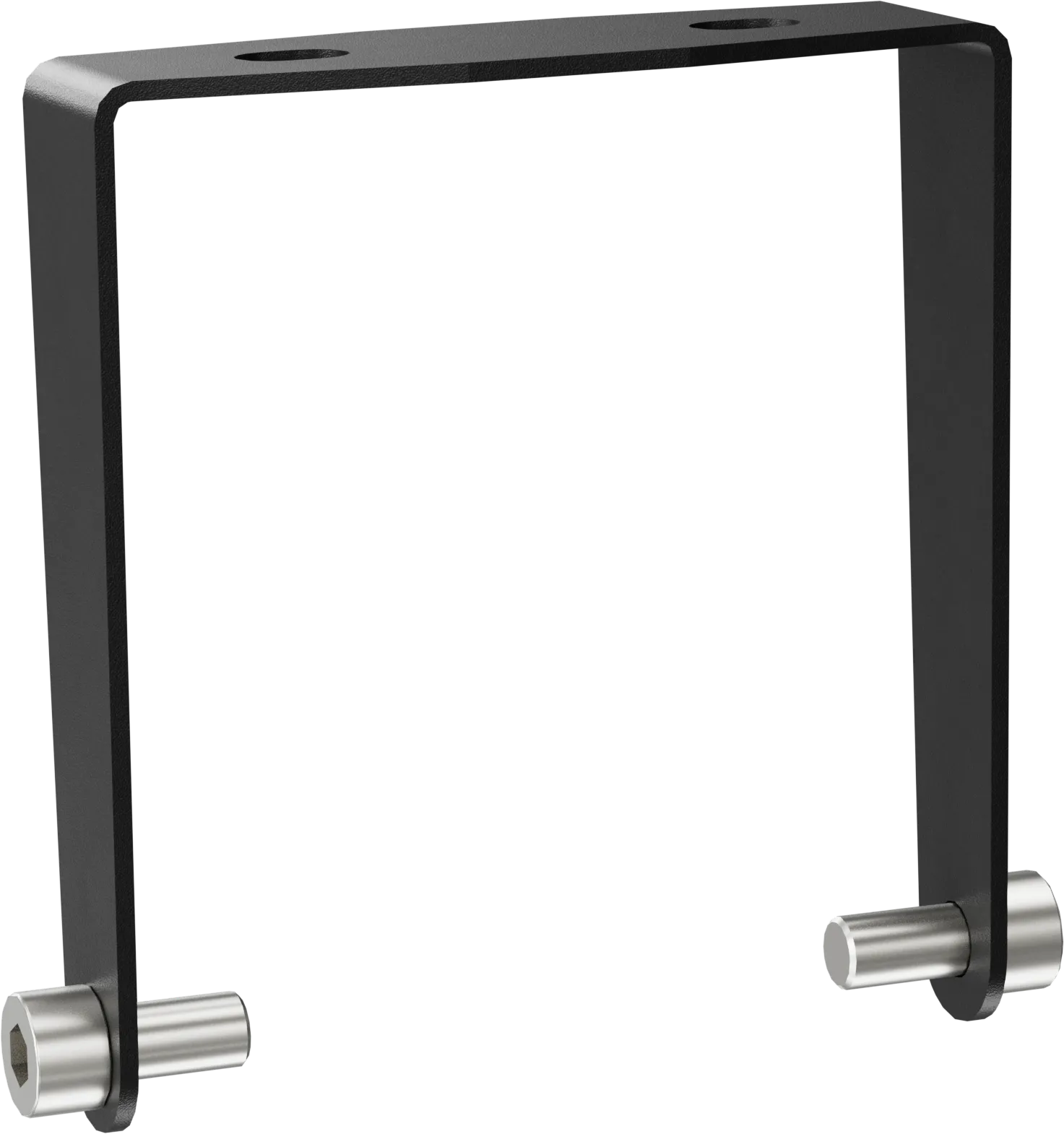

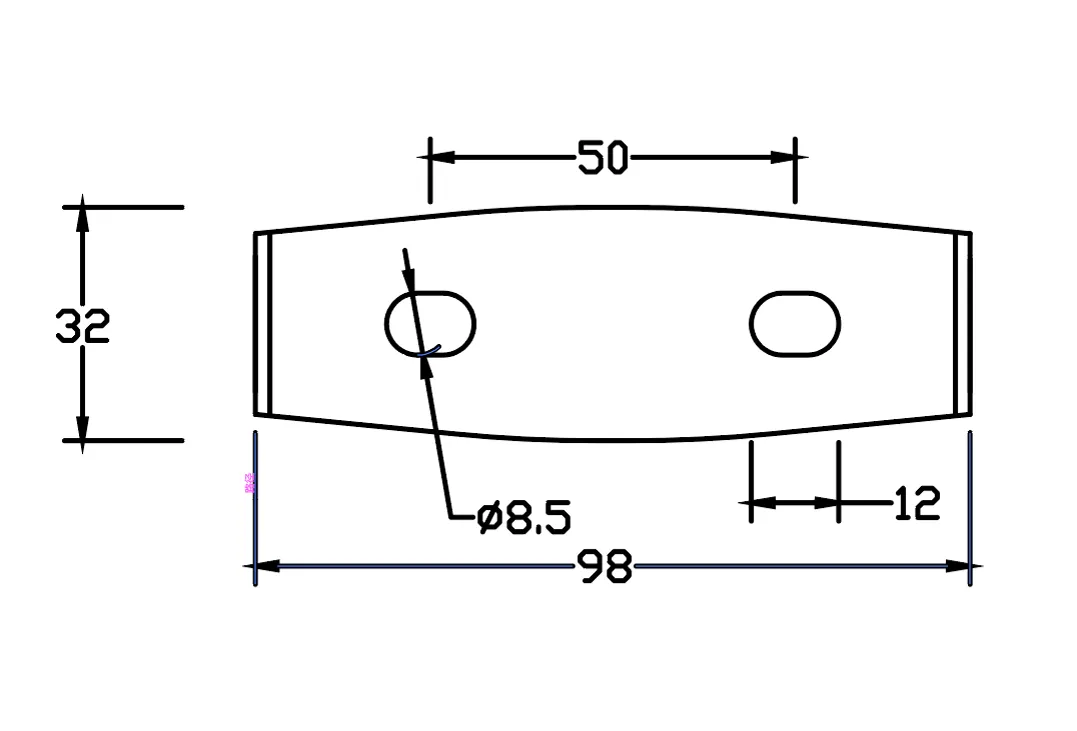

U-shaped Bracket
