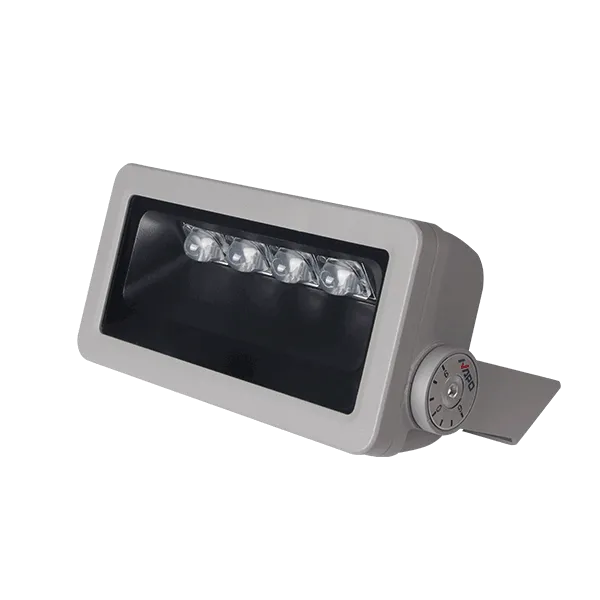

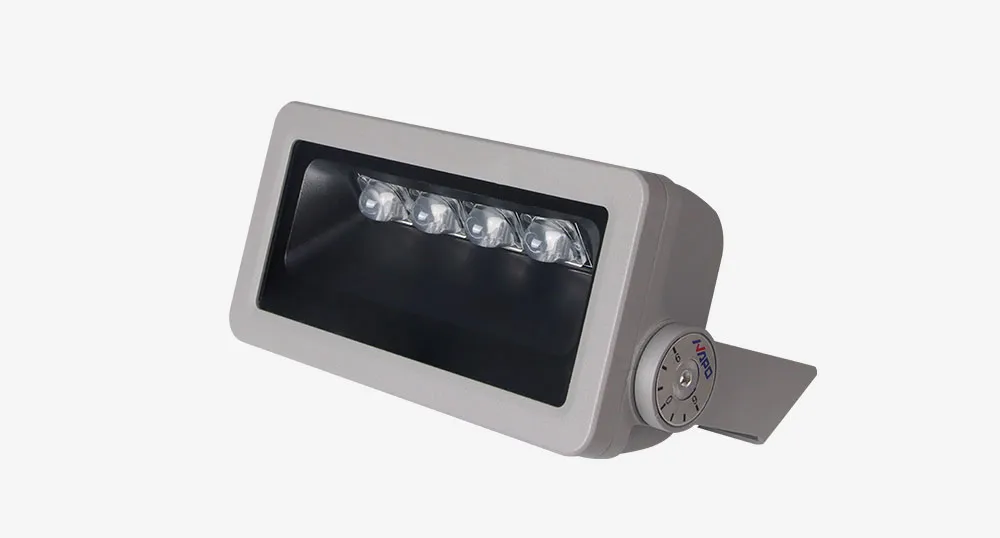

The HLL-915 Low-Level Guardrail Light is a compact LED road lighting solution designed for guardrails, bridges, roads, and other low-level outdoor lighting applications. Its pole-free design integrates directly with low-level structures, eliminating conventional lighting poles while reducing wind load, installation complexity, and maintenance costs.
Featuring a durable aluminum housing and tempered glass, the HLL-915 is built for demanding outdoor environments with IP66 and IK08 protection. Its specialized polarized optical system and anti-glare design provide precise light distribution, uniform illumination, and reduced stray light, helping improve visual comfort and road safety.
With a compact 174 × 75 × 106 mm form factor, 4–8W power range, DC48V input, and 10° × 130° beam distribution, the HLL-915 is an efficient choice for low-level roadway lighting, bridge guardrails, roadside barriers, and infrastructure projects where conventional poles are impractical or undesirable.
Low-Profile Installation
No lighting poles required, reducing wind load, installation complexity, and maintenance costs.
Durable Outdoor Housing
Die-cast aluminum housing and tempered glass with weather-resistant and corrosion-resistant surface treatment for long-term outdoor use.
Uniform&Low-Glare Lighting
Specialized polarized optics provide uniform illumination while minimizing stray light, glare, and light pollution.
Lower Installation&Maintenance Costs
The low-level lighting design eliminates the need for conventional poles, helping reduce infrastructure and maintenance expenses.
Low-glare road lighting combines physical and optical anti-glare technologies to effectively reduce glare while maintaining high road brightness and uniformity.
Equipped with a dedicated anti-glare shield to reduce direct glare and improve visual comfort for drivers.
Precision optical lenses provide controlled light distribution, minimizing stray light and unnecessary glare.
A sealed structure with IP66 protection helps ensure reliable operation in outdoor road lighting environments.

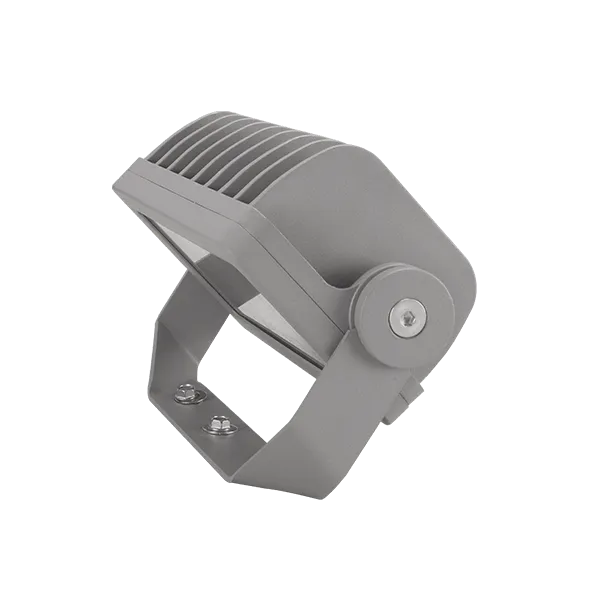

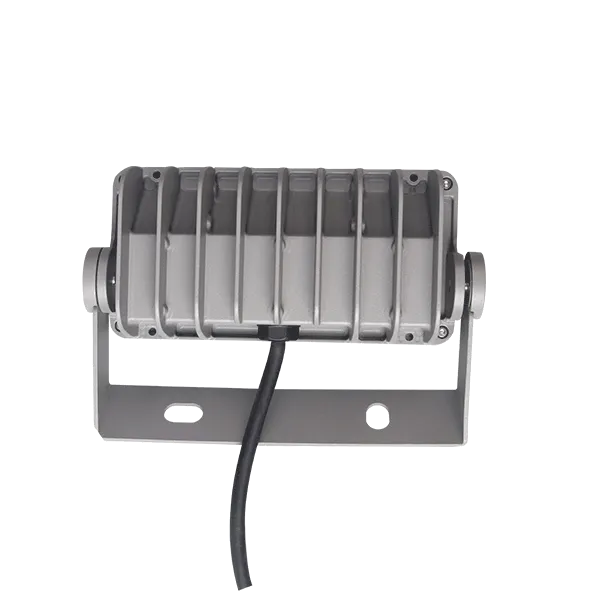

Adjustable side brackets allow flexible adjustment of the luminaire angle for different road lighting applications.
The luminaire features a specialized polarized optical design combined with anti-glare accessories to precisely control light distribution. This helps reduce glare, stray light, and light pollution while delivering uniform and comfortable road illumination.
Specialized polarized optics precisely direct light where it is needed for efficient road illumination.
The polarized lens and anti-glare accessories minimize unwanted glare, stray light, and light pollution.
Delivers consistent illumination across the road surface for improved visual comfort and driving safety.

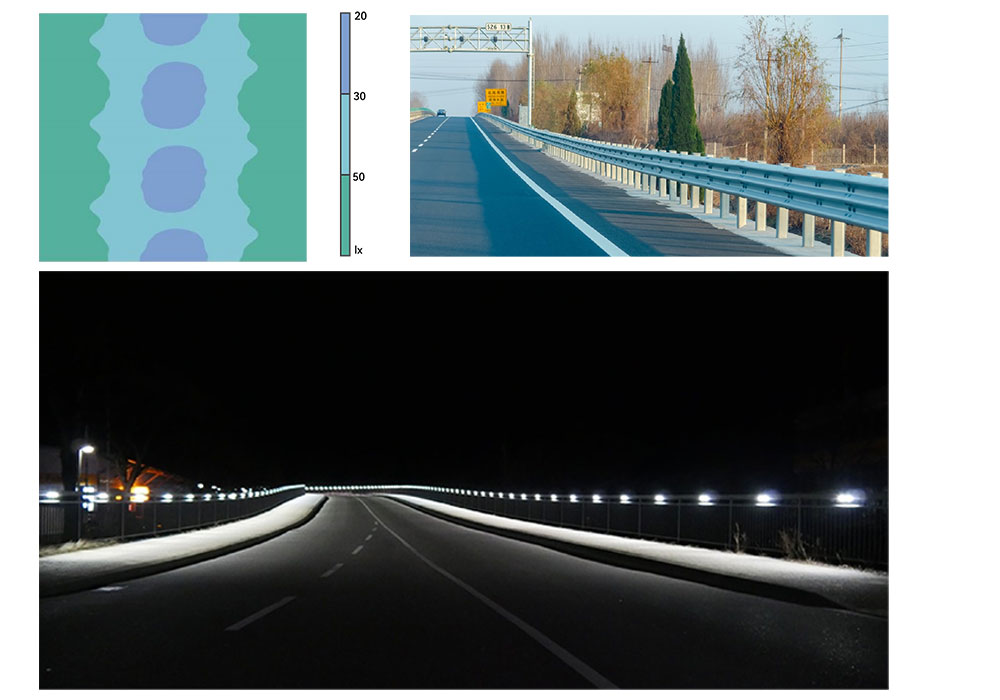

No pole design, free from height restrictions. Lower wind resistance for enhanced safety, reducing installation and maintenance costs.

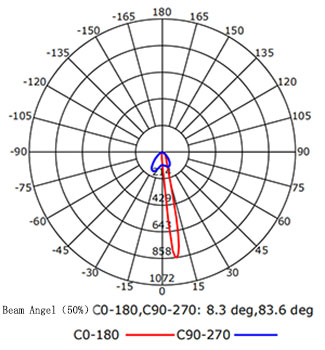

Photometric Curve

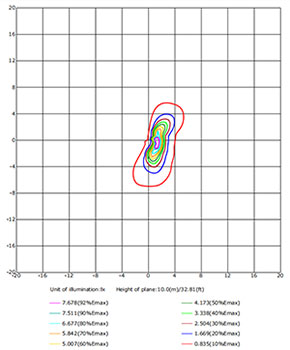

iso-illuminance map

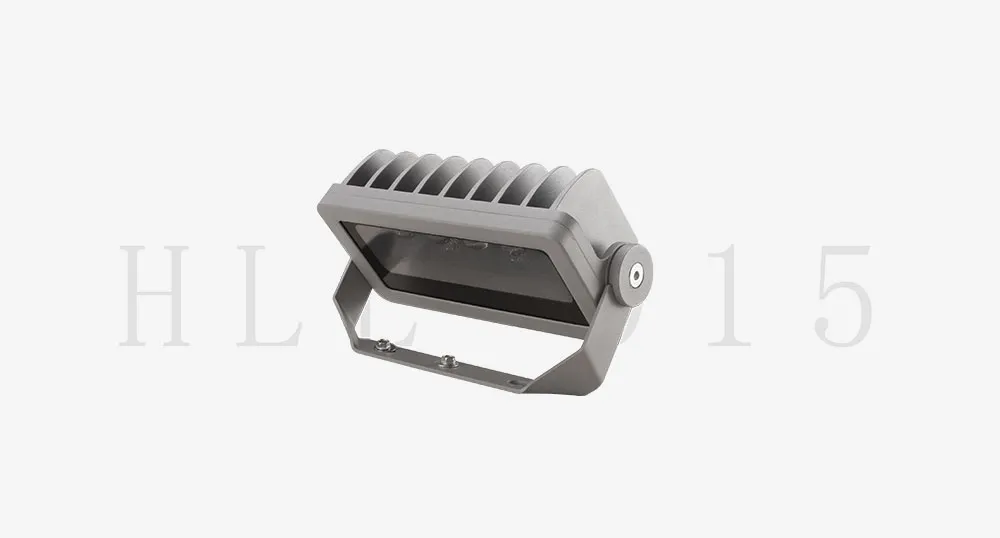

HLL-915
4W~8W
Main technical parameters
| Material | aluminum+glass |
Size | L174*W75*H106mm |
| Wattage | 4W~8W |
LED qty | 4 PCS |
| Efficiency | 70±10 lm/W |
IP grade | IP66 |
IK grade | IK08 |
Class grade | CLASS Ⅲ |
| Input voltage | DC48V |
Working temperature | -35℃-45℃ |
Lifetime | 30000h |
| CCT | 3000K-6500K |
| CRI | ≥80 |
SDCM | ≤5 |
| Beam angle | 10*130° |

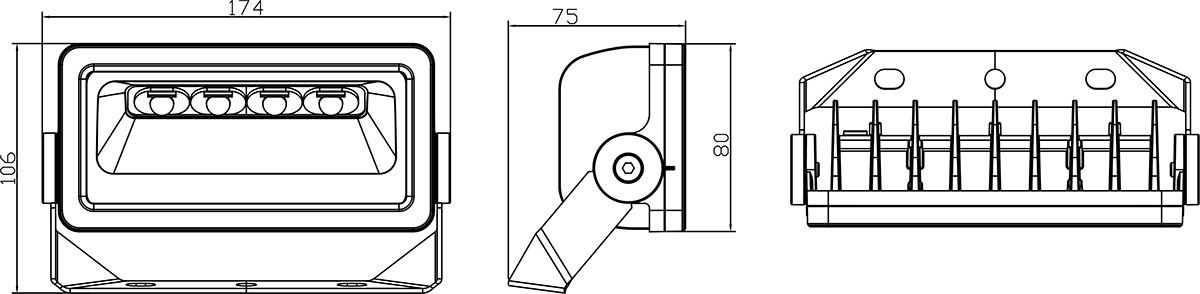

product size
