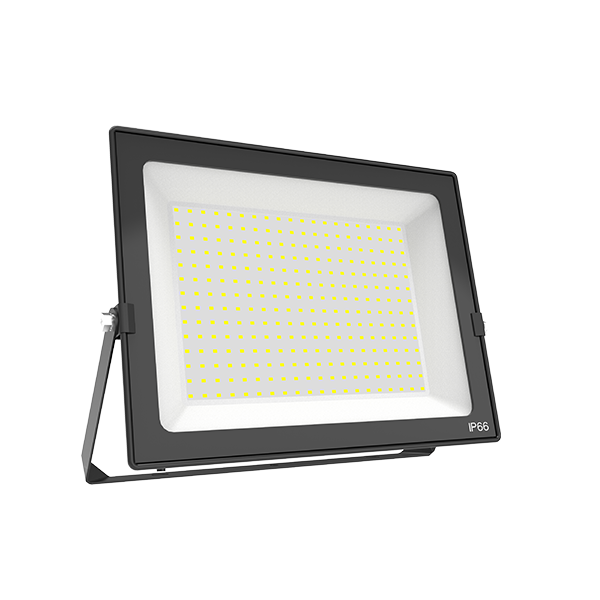

The F04 Flood Light Series is designed for outdoor and large-area illumination where reliability, visual comfort, and efficient performance are essential. Featuring an ultra-slim integrated body, optional textured diffused glass panel, and efficient thermal management system, the F04 floodlight delivers stable and comfortable lighting while maintaining a modern minimalist appearance.
With IP66 protection, strong weather resistance, and surge protection up to 6KV, the F04 series is suitable for demanding outdoor environments such as sports fields, industrial zones, container yards, and building facade lighting.
Simple and beautiful design, built-in power supply
The thinnest 31 mm tick
*take F04-200 size data as an example

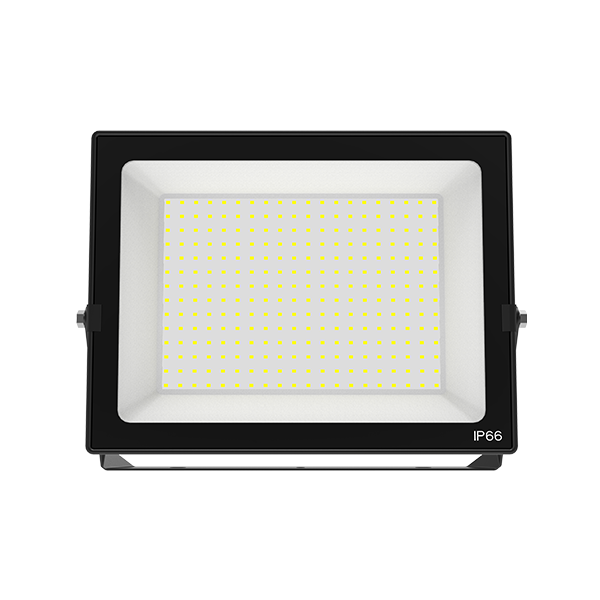

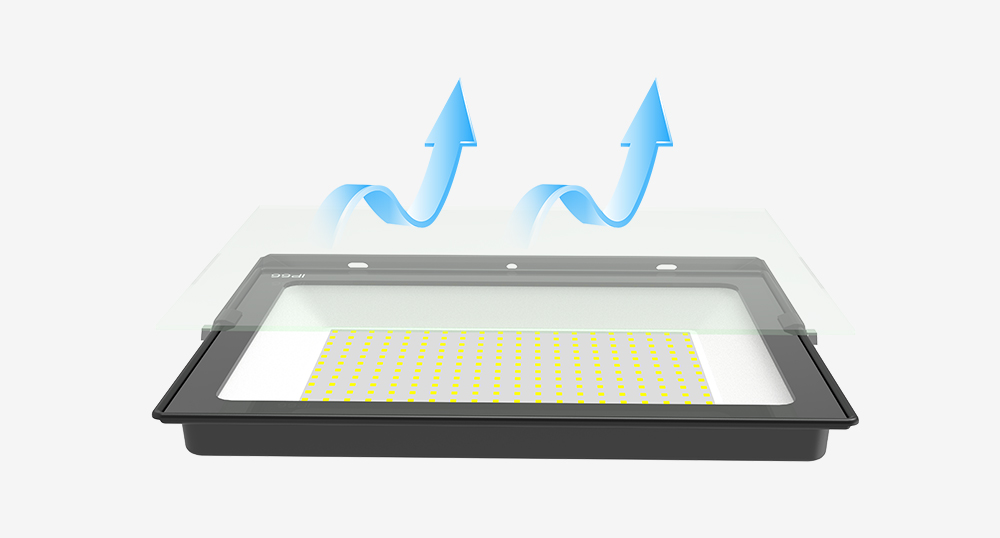

Professional fabric-patterned glass, soft light
High light transmittance, less light loss
Panel Optional
High-transmittance tempered glass
Fabric-patterned soft-light glass

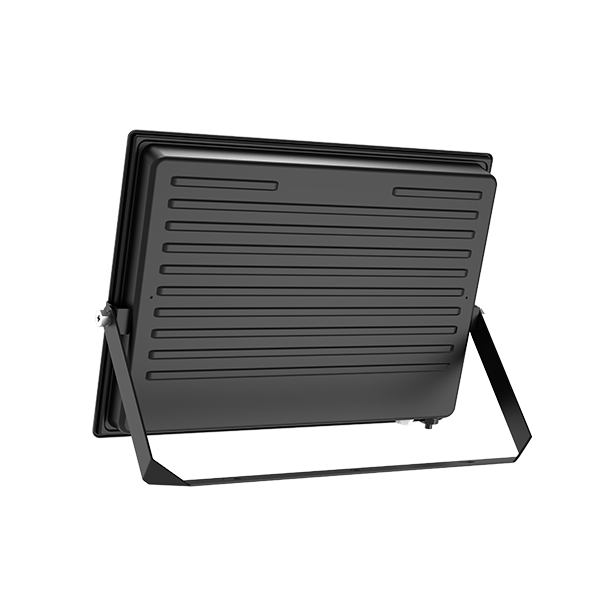

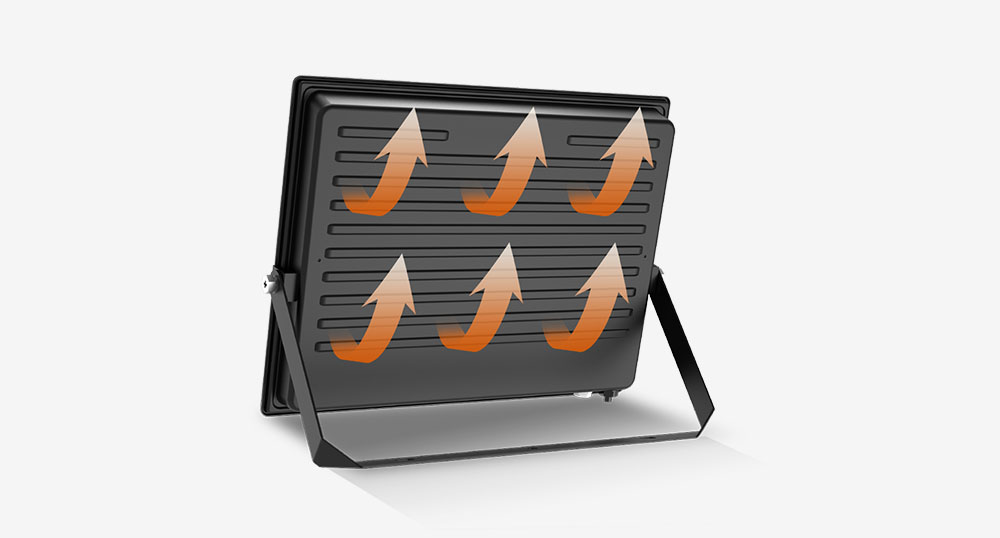

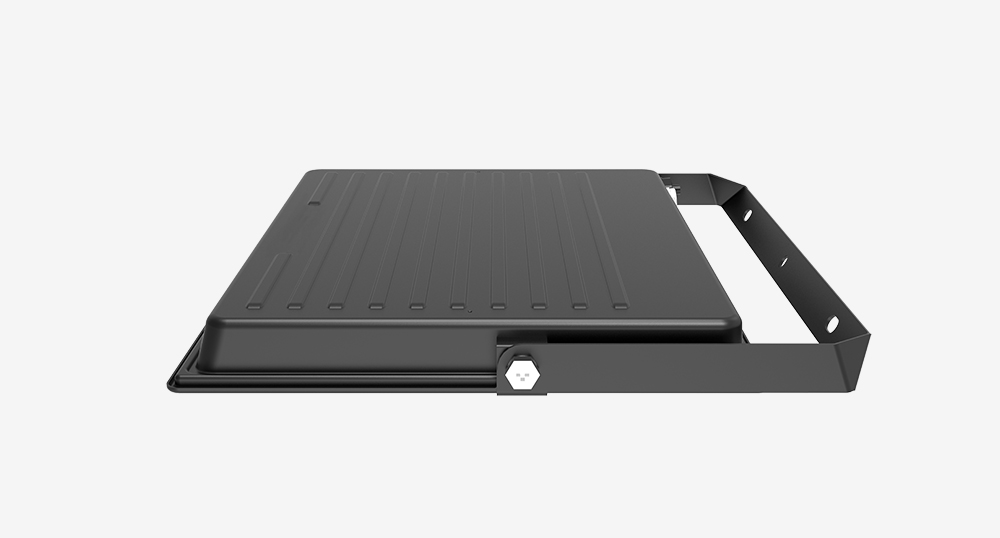

Back heat dissipation rib channel heat dissipation design
Thickened heat dissipation ribs extend to the top and bottom of the lamp body
Heat dissipation is more efficient, ensuring the life of the LED light source.
Multiple seals, internal and external combination, watertight
IP66
waterproof and rust-proof
outdoor dedicated
Outdoor use, no fear of lightning strikes
Up to 6KV
Suitable for outdoor environments with great temperature differences,
such as extremely cold or extremely high temperature environments.

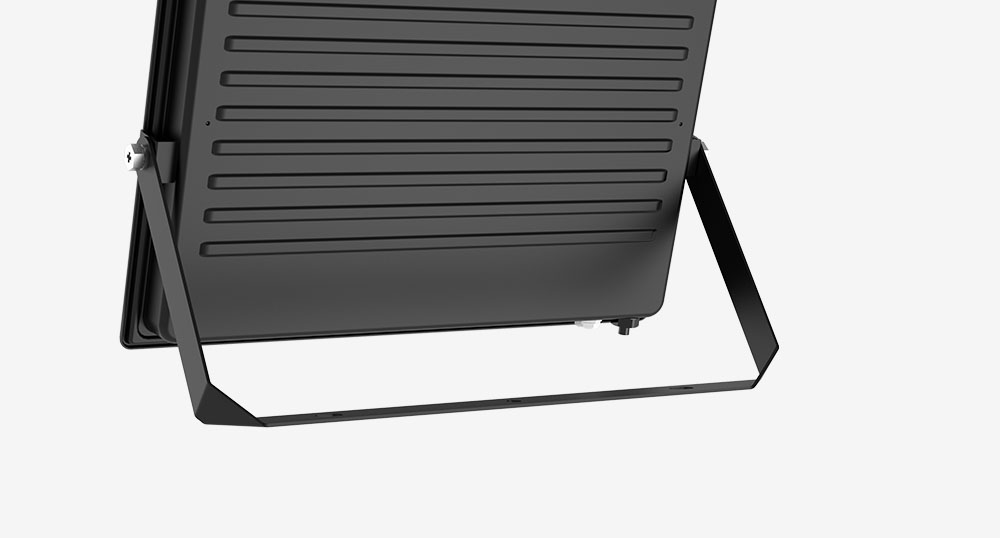

Bending design, time-saving and worry-free installation
When the supporting arms of bracket and the mounting surface are bent along the bending line, they form an angle that allows the screw holes fully visible, and an electric screwdriver can be used to achieve quick and accurate installation.
Utility Model Patent
Patent Number： ZL 2022 2 1262336.1
Details represent quality
Unique patented mounting component design, ensures installation more convenient and faster
Bending Bracket
Quick and easy installation
Bending bracket enable to lock screws
With power tools.
Ordinary Bracket
Unable to use power tools
Unable to use power tools, time consuming and unsafe.
The luminaire can be adjusted freely,
and highly compatible for various installation conditions.
① Surface Mounting
② Side Mounting
③ Ceiling Mounting
The lamp body can be adjusted around the bracket to a wide angle 224°
Suitable for more installation conditions

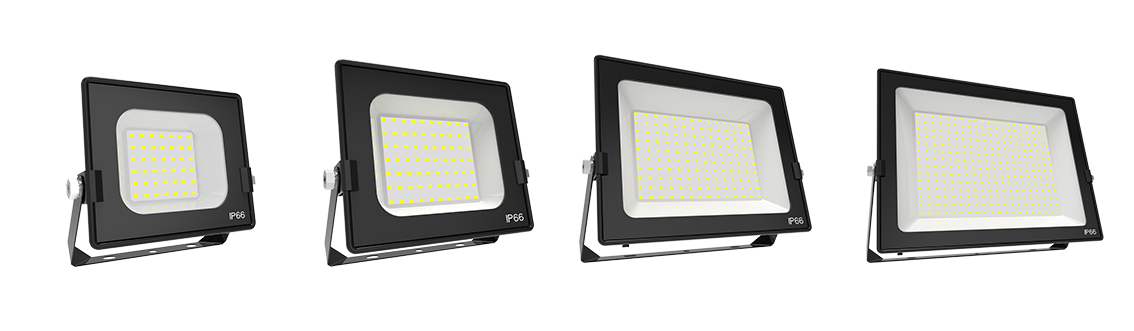

| Model | F04-30 | F04-50 | F04-100 | F04-150 | F04-200 | |
Powe | 30W | 50W | 100W | 150W | 200W | |
Size（L*W*H） | 181x135x33mm | 205x160x33mm | 301x220x38mm | 402x290x36mm | 422x300x31mm | |
| surge protection | L-N 4KV; L/N-PE 4KV | L-N 4KV; L/N-PE 4KV | L-N 4KV; L/N-PE 4KV | L-N 4KV; L/N-PE 4KV | L-N 4KV; L/N-PE 6KV | |
LED number | 28LEDs | 56LEDs | 112LEDs | 168LEDs | 224LEDs | |
Luminous Flux | 3000K | ≥80 lm/W | ||||
| 4000K | ≥80 lm/W | |||||
| 5000K | ≥95 lm/W | |||||
Weight | 0.38kg | 0.5kg | 1.05kg | 1.75kg | 2.15kg | |
