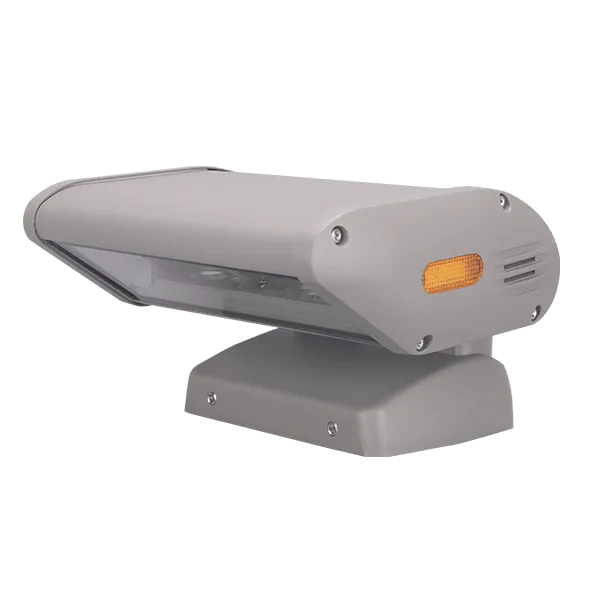

The HLL-916 Series Guardrail Lights are surface-mounted low-level lighting fixtures designed for urban roads, bridges and other outdoor traffic and landscape applications. As part of the Ruiguang Series, the HLL-916 combines practical road lighting with a compact and streamlined fixture design, providing a low-level lighting solution without relying on traditional high lamp posts.

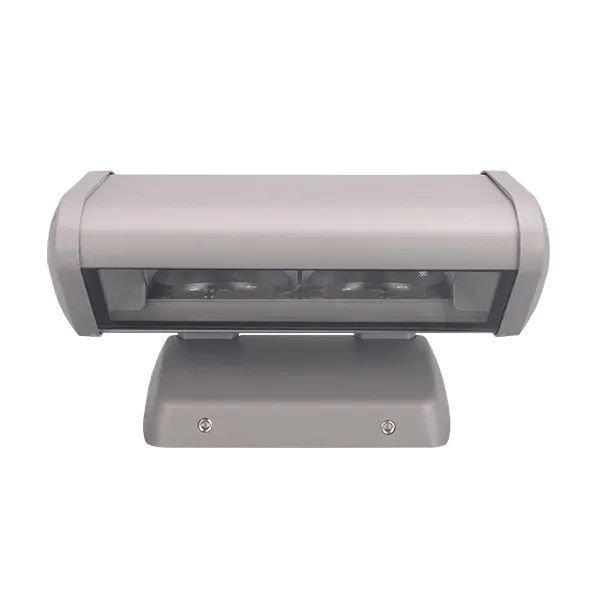

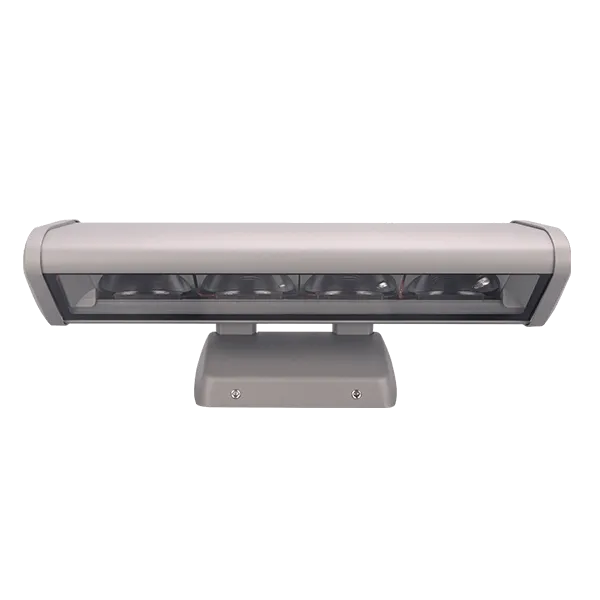

Available in three models — HLL-916-2, HLL-916-3 and HLL-916-4 — the series offers different fixture lengths and power configurations to accommodate different lighting requirements. The three models feature an AC220V power supply, 3000K/4000K color temperatures, tempered glass, IP66 protection and IK08 impact protection.
The HLL-916 Series supports On/Off, 0-10V and DALI control, providing flexible control options for road and outdoor lighting projects. Its surface-mounted configuration can be applied to guardrails, bridge structures and other low-level lighting locations where reliable illumination and an integrated appearance are required.
Bio-inspired appearance design, integrated structural waterproofing. The fixture angle is adjustable for different applications.
The housing is made of high-strength die-cast aluminum.
Optional mounting posts of various heights are available for different scenarios.
Pole-free, cavity-free lighting technology delivers lower wind resistance and higher safety.
Low-level mounting removes height restrictions and reduces installation and maintenance costs.
The key feature of this low-level guardrail light is the dual physical and optical anti-glare system, which minimizes glare to ensure driving safety. While strictly controlling glare, it delivers high road luminance and excellent illuminance uniformity.
Aluminum alloy housing with high-temperature powder coating, weather-resistant and corrosion-resistant, featuring a simple and elegant appearance.
Ultra-clear tempered glass, metal PG cable gland outlet design. Integrated structural waterproofing, IP66 protection rating.
Physical anti-glare: fitted with anti-glare accessories to ensure visual comfort for vehicle occupants.
Optical anti-glare: indirect light output design eliminates direct glare from looking into the source, delivering more comfortable and safer road lighting.

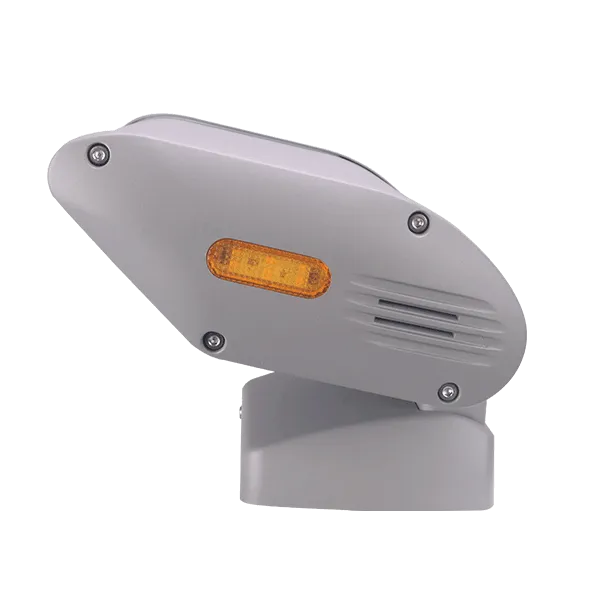

Yellow warning light provides effective guidance and warning, reducing driver visual fatigue.

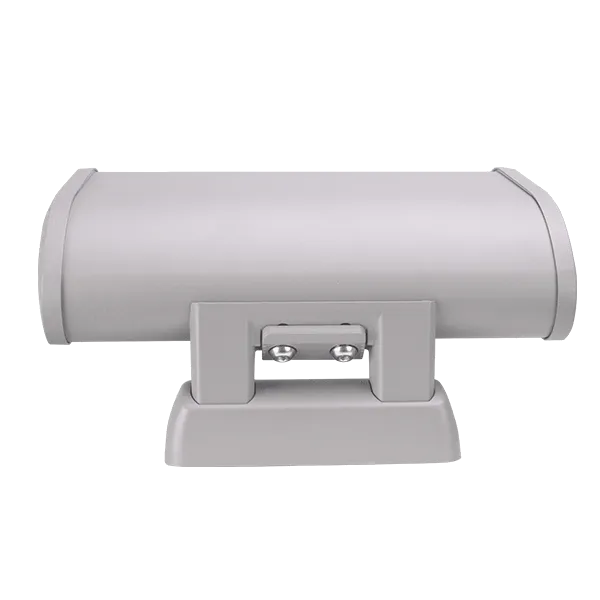

Precise angle-adjustable rotary structure with anti-loosening design.
Polarized lens design with anti-glare accessories for optimal lighting performance. Yellow warning light safeguards driving safety.
Special polarized light distribution design provides uniform illumination, with no light spill or light pollution.
Excellent illuminance uniformity, exceeding the Class I road requirements of CJJ45-2015 Standard for Lighting Design of Urban Roads.
Widely applicable to expressways, ramps, urban elevated roads and bridges, scenic garden roads, and other height-restricted sections.




| Model | HLL-916-2 | HLL-916-3 | HLL-916-4 |

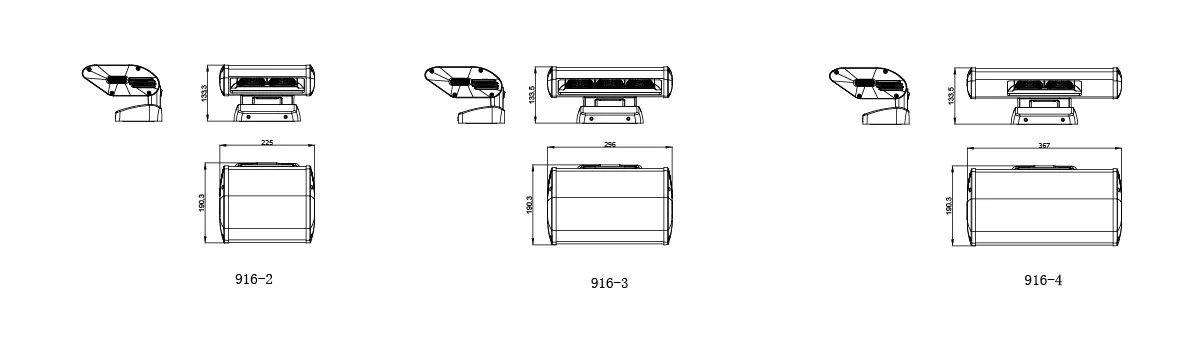

| Dimension | L224*W190*H135mm | L296*W190*H135mm | L368*W190*H135mm |
| Power | 20W / 30W | 35W / 45W | 48W / 60W |
| Working Voltage | AC220V | ||
| CCT | 3000K / 4000K | ||
| Beam Angle | Polarization | ||
| IP Class | IP66 | ||
| IK Class | IK08 | ||
| PF | 0.95 | ||
| Luminous Surface | Tempered glass | ||
| Control Model | On-Off / 0-10V / DALI | ||
| LED Qty | 2P | 3P | 4P |
| Working Temp | -30~45℃ | ||
| Weight | 2.16kg | 2.54kg | 2.94kg |
| Certification | CQC | ||
