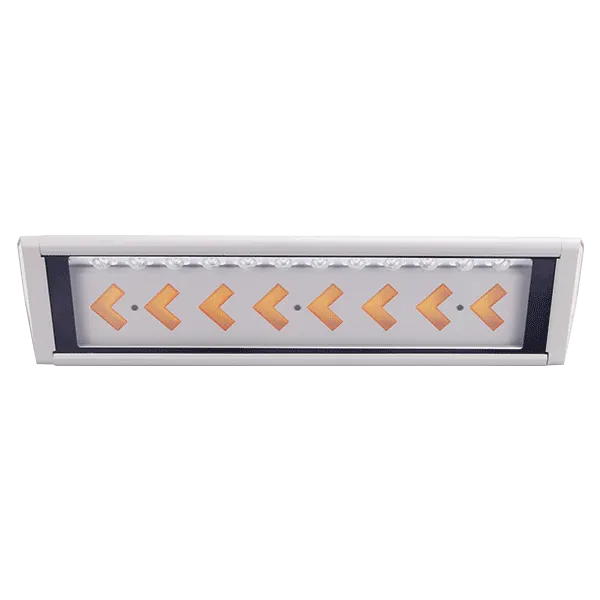

HLL-917-guardrail-light-product-02

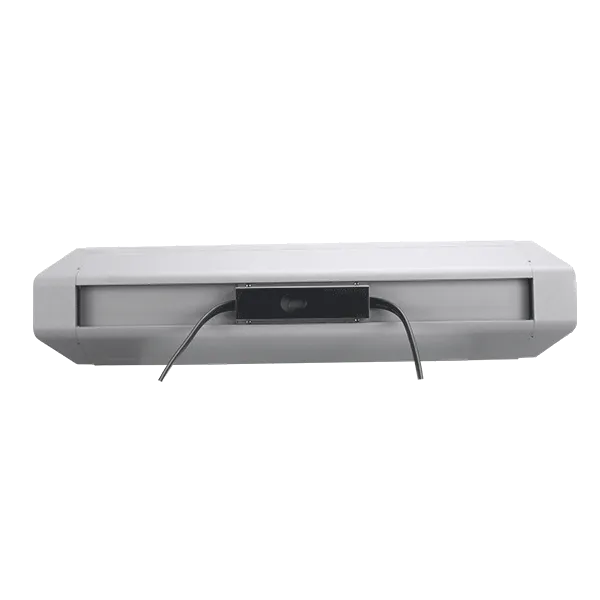

HLL-917-guardrail-light-product-03

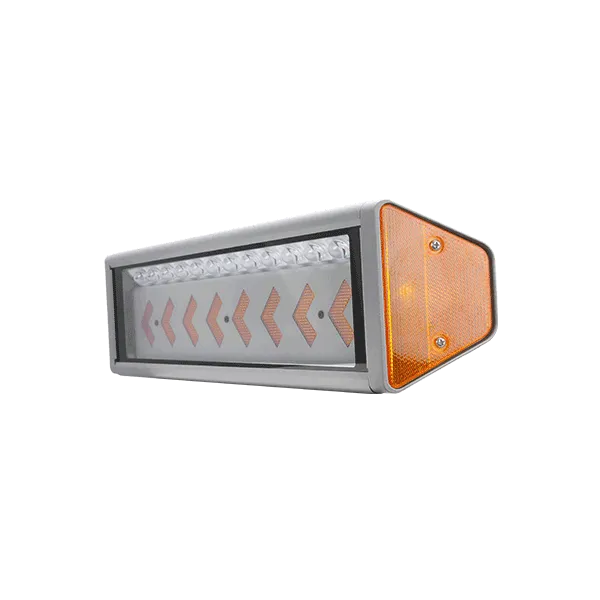

HLL-917-guardrail-light-product-04

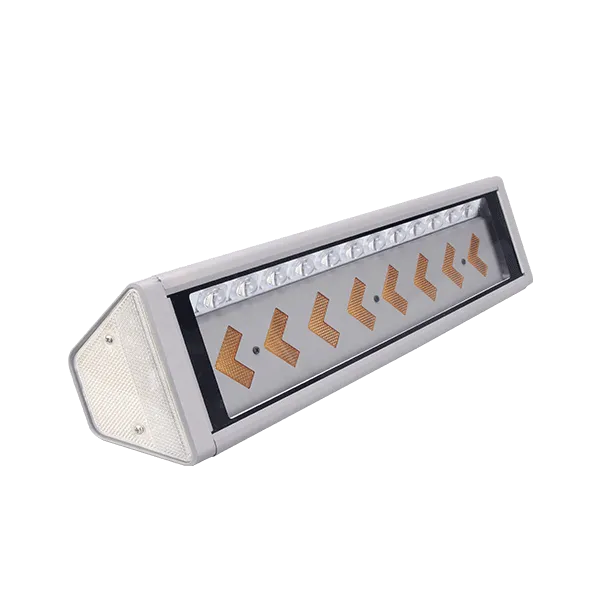

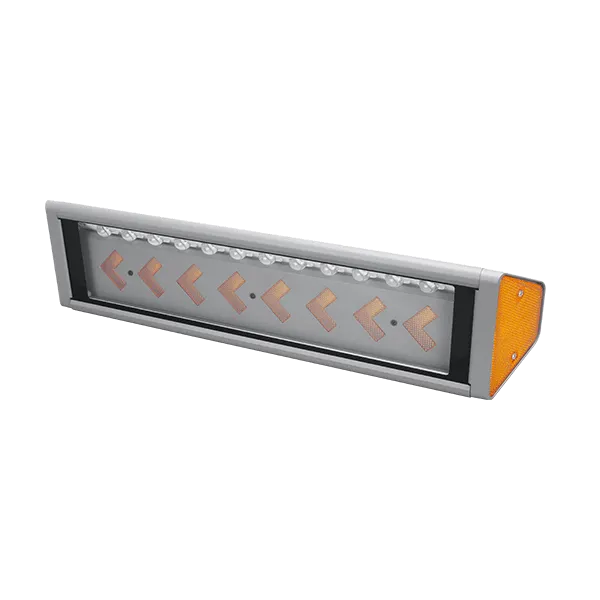

HLL-917-guardrail-light-product-05
HLL-917-guardrail-light-product-06

HLL-917 Corrugated Guardrail Light

The HLL-917 Corrugated Guardrail Light is a low-level lighting and guidance solution specifically designed for W-beam corrugated guardrails on highways, ramps and urban roads. By integrating road illumination with guardrail guidance, it provides clear visual indication along road curves and other critical sections while maintaining a clean and integrated roadside appearance.

The fixture adopts an embedded low-level installation concept, allowing the light to be integrated with W-beam guardrails without introducing additional high lamp posts. This helps preserve the existing road landscape while reducing high-level glare and providing more comfortable nighttime visual guidance.

With a 500×117×81 mm housing, HLL-917 offers 6W / 8W / 12W / 24W power options and supports DC48V operation. The fixture is available in 3000K / 4000K and supports On/Off and single-color dimming control. Its IP66 / IK08 protection rating and tempered glass cover make it suitable for outdoor road environments.

Get Quote

Details

W-beam guardrail light with ramp indicator


  • Embedded low-height guardrail luminaire integrating ramp indicator light and road lighting in one unit.


  • Combined with traffic safety delineators to improve driving guidance, it integrates road illumination, anti-collision protection and landscape effect altogether.


  • Adopted one-piece die-casting forming process for exquisite appearance and personalized design.


  • The standard adjustable bracket allows flexible beam angle setting. It features structural waterproofing and runner-type convection heat dissipation for reliable outdoor performance.


The luminaire adopts optimized optical design with low glare and even road surface illuminance.


It provides both functional lighting and warning lighting, where the warning light delivers traffic guidance.


With slim body, it can be installed without modifying the impact face of guardrail, seamlessly integrated with concrete guardrail.


Integrated structural waterproofing, IP65 protection rating. High-temperature powder coated surface, simple and elegant appearance.


Polarized lens with anti-glare accessories for precise light control and superior lighting performance.


Aluminum alloy housing with rigid cooling fins for efficient heat dissipation and extended service life. Ultra-clear tempered glass, light transmittance ≥92%.


Separate control for functional lighting and warning lighting.


Imported PC diffuser plate applied on warning & decorative lighting section for uniform light output.

Precise light control.



Independent control for functional lighting and warning lighting.


The warning light serves as guidance, ideal for ramps to remind speed reduction and indicate driving direction for enhanced road safety.


Specially polarized optical design delivers uniform illuminance and minimizes glare for safe driving.


Average illuminance Eh,av=31.6 lx, uniformity UE=0.46, complying with Class I road requirements of CJJ45-2015 Standard for Lighting Design of Urban Roads.



Widely suitable for single-lane or dual-lane expressway ramps, uphill and downhill ramps of overpasses.





Technology

Light Distribution Curve



Iso-illuminance Map


Lighting Simulation Illuminance Diagram


null


Installation


Double-row layout


Installation Requirements:

1.Recommended mounting height:0.8–1.2m

2.Installation spacing:7m

3.Illuminated road width:8m



Specifications



 Model HLL-917

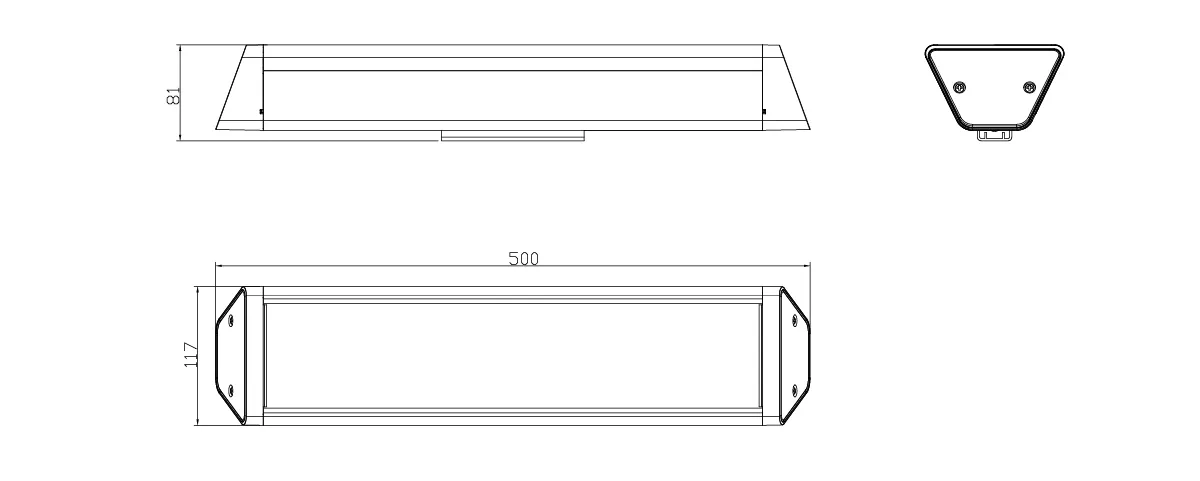

 Dimension L500*W117*H81mm
 Power 6W / 8W / 12W / 24W
 Working Voltage DC48V
 CCT 3000K / 4000K
 Beam Angle

 Polarization

 IP Class

 IP66

 IK Class IK08
 PF 0.95
 Luminous Surface  Tempered glass
 Control Model On-Off / 0-10V / DALI
 LED Qty 12P
 Working Temp -30~45℃
 Weight 2.33kg
 Certification CQC
