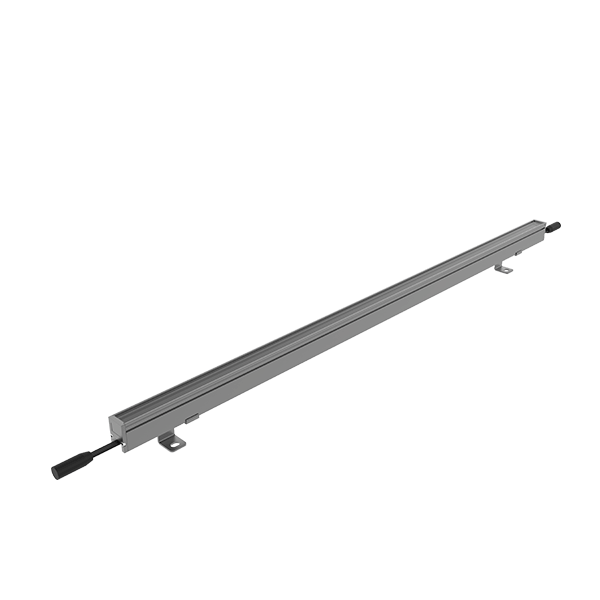

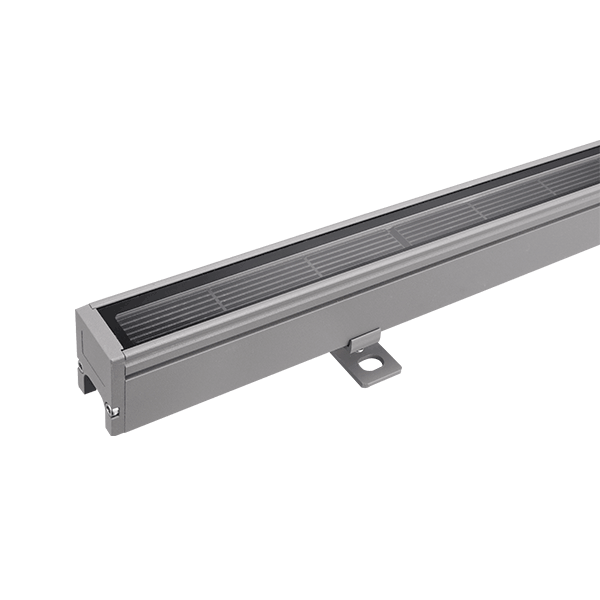

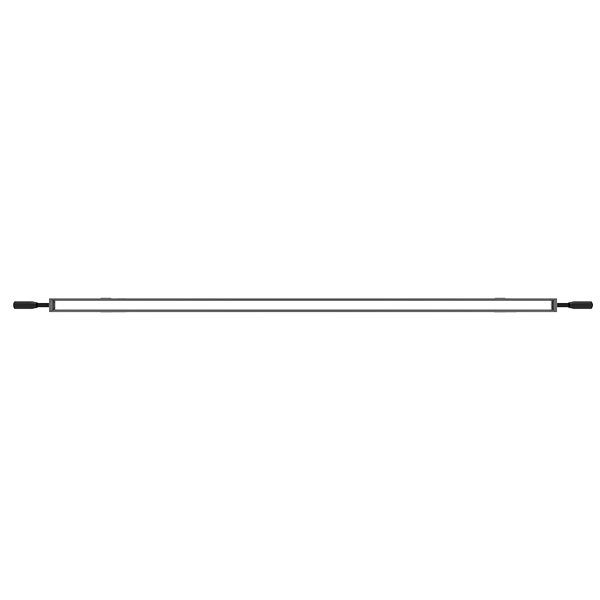

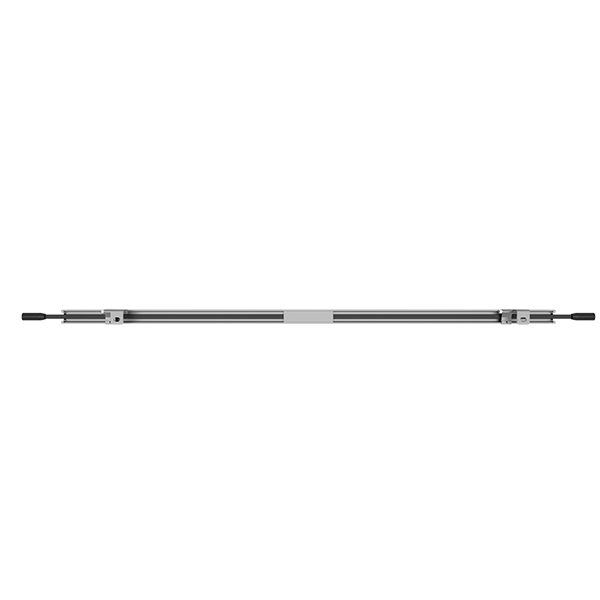

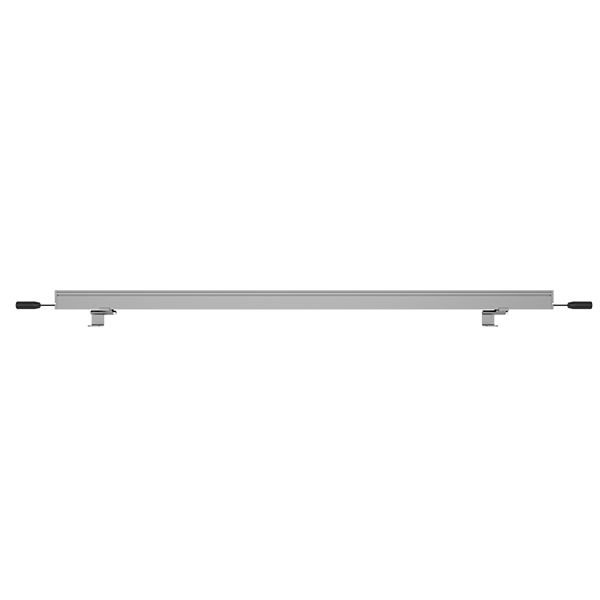

The HWW-125 is a compact LED wall washer designed for architectural facade and outdoor decorative lighting. Featuring an integrated 20×80° linear optical lens, it delivers a wide and uniform light distribution for smooth wall-washing effects while maintaining a slim fixture profile.
Available in 300mm, 500mm and 1000mm lengths, the HWW-125 supports 18W and 24W power options with DC24V or DC48V operation. Its low-voltage design provides flexible power configuration for different outdoor lighting projects.
The fixture supports 2700K–6500K and RGBW light sources, together with On-Off and DMX512 control, allowing both static architectural illumination and dynamic lighting effects. With an IP66 protection rating, the HWW-125 is suitable for outdoor facade lighting applications where reliable protection against dust and water is required.
The compact aluminum housing and flexible length options make the HWW-125 suitable for continuous facade lighting, building outlines and other architectural lighting applications.
 |  |
| Model | HWW-125 |

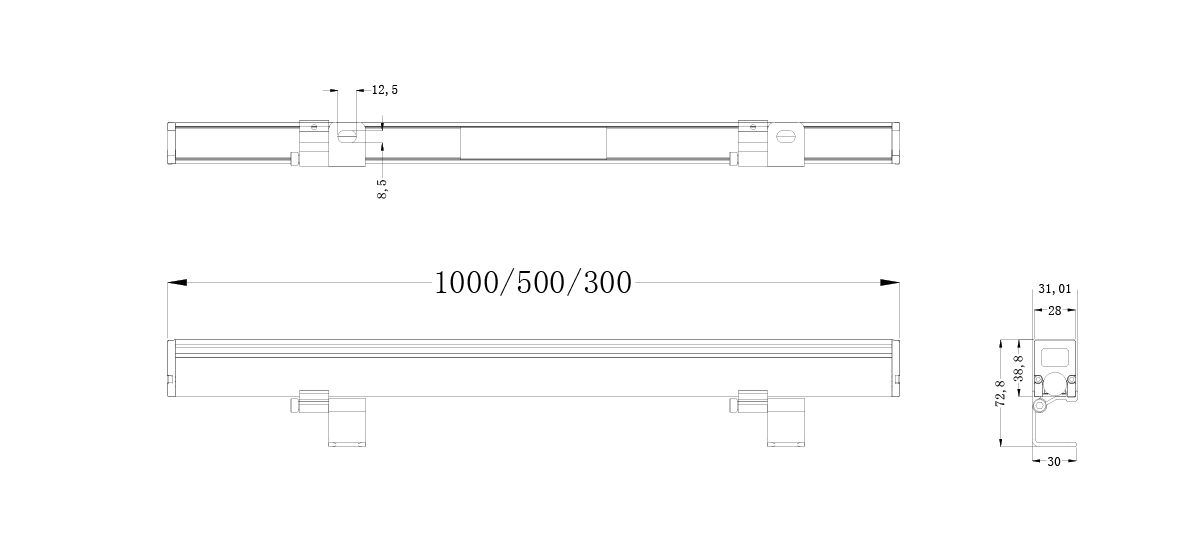

| Dimension | L300/L500/L1000*W28*H73 mm |
| Power | 18W /24W |
| Working Voltage | DC24V / DC48V |
| CCT | 2700K-6500K/RGBW |
| Beam Angle | Intergrated Optical Linear Lens 20*80° |
| IP Class | IP66 |
| Control Model | On-Off/ DMX512 |
| LED Qty | 96P |
| Working Temp | -30~45℃ |
| Weight | 1.14kg |
| Certification | CQC |
