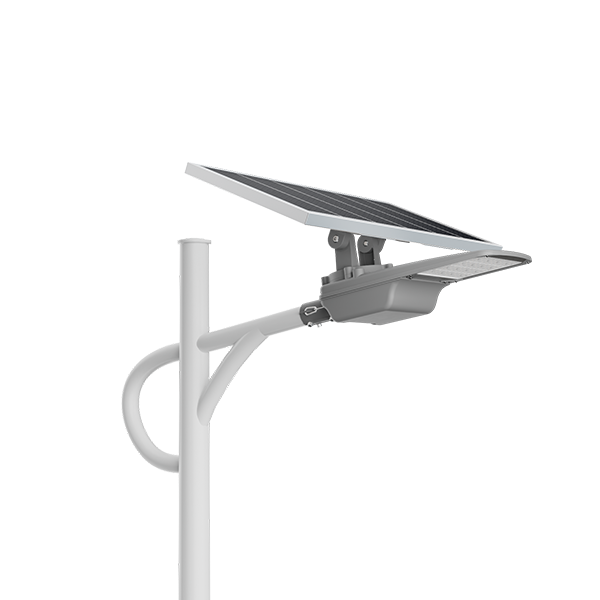

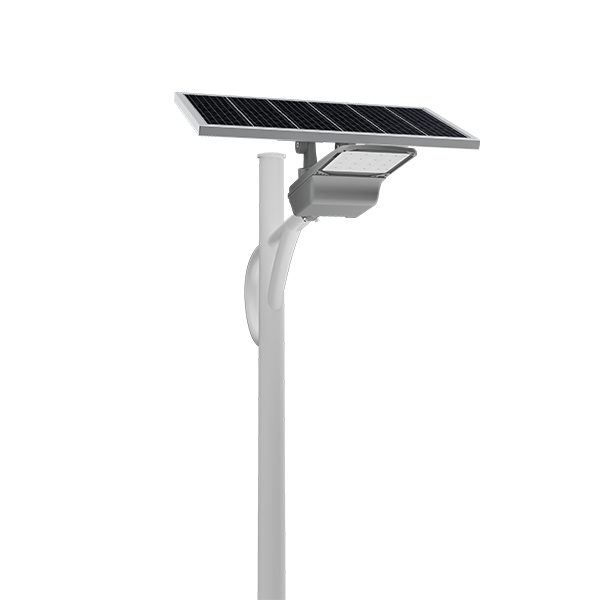

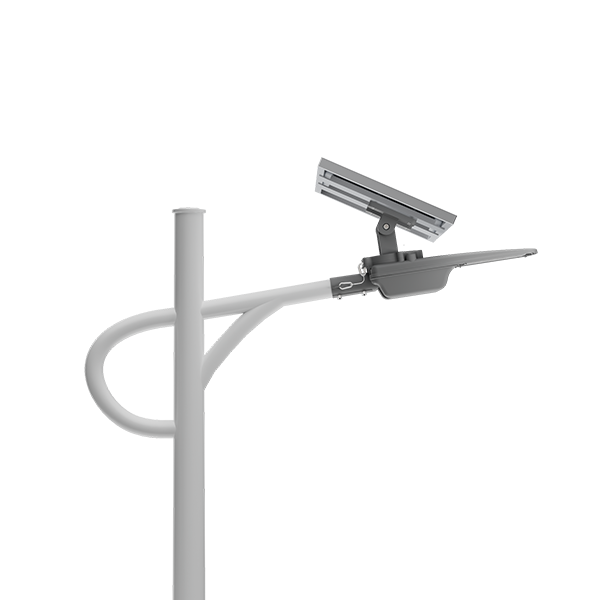

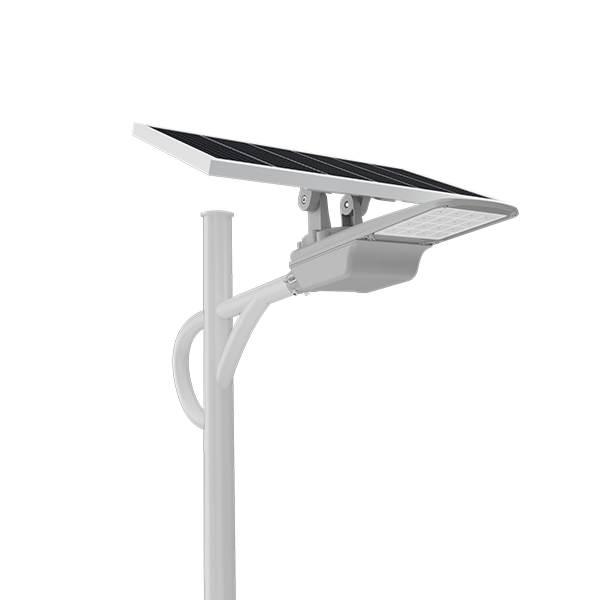

The S02 Kestrel2 Solar Street Light is designed to deliver a perfect balance of performance, durability, and intelligent energy management. With its streamlined aerodynamic structure and fully integrated modular system, it ensures efficient solar energy utilization while maintaining long-term reliability in various outdoor environments.
Featuring high-efficiency monocrystalline solar panels, LiFePO4 battery technology, and an advanced MPPT charging system, S02 provides stable illumination with zero electricity cost and minimal maintenance requirements.
Its adjustable solar panel structure, smart sensing functions, and flexible installation design make it ideal for urban roads, rural areas, parks, campuses, and industrial zones.
[1] Class A monocrystalline silicon photovoltaic panels, 30% higher charging efficiency.
[2] 360° rotatable connection platform and 52° tiltable solar panel enable the luminaire suitable for different road directions and areas in different latitude.
[3] Streamlined and simple design with self-cleaning function;IP66 protection, no fear of rain and snow.
[4] Gear meshing design and fixed anchor of connection platform enable wind resistance up to 130mph;Level and patented compass design make direction adjustment easier.

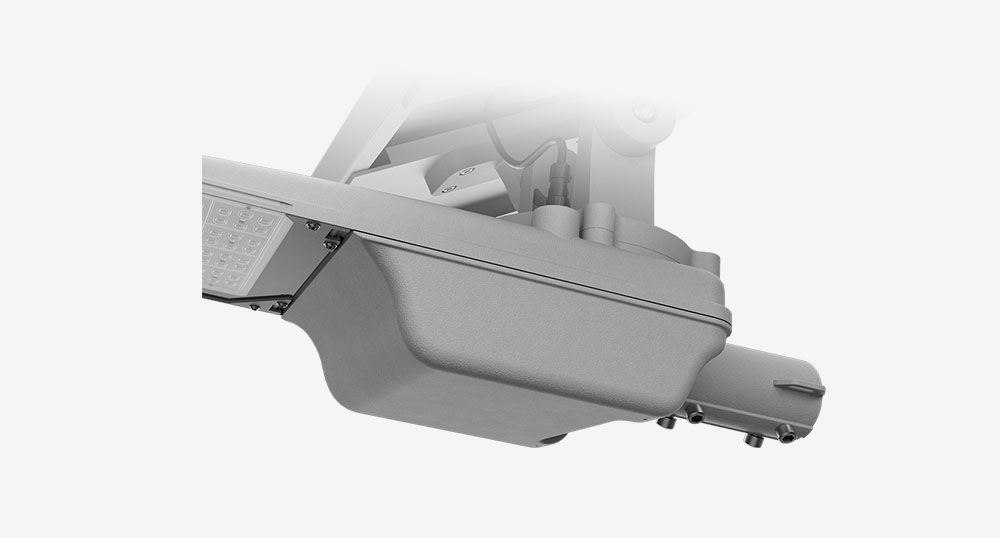

[5] Electrical box: Integration of batteries, controllers, and lighting components.
[6] 304 stainless steel M14 screw and nut connectors make the connection more stable, safe and reliable;20cm extension connector, fixed with double screws on four sides;Elbow connector design for both straight pole and horizontal pole mounted.
[7] Independent battery pack;LiFePO4 battery;MPPT(Maximum Power Point Tracking) charging management ensures that the photovoltaic panel always charges the battery at maximum power.
[8] The electrical box is under the photovoltaic panel to avoid exposure to the sun;Electrical box can be opened without any tools, easily install and maintain;Built-in battery insulation components prevent the battery pack from overheating.
Fast charge
Low energy consumption
0 energy charge

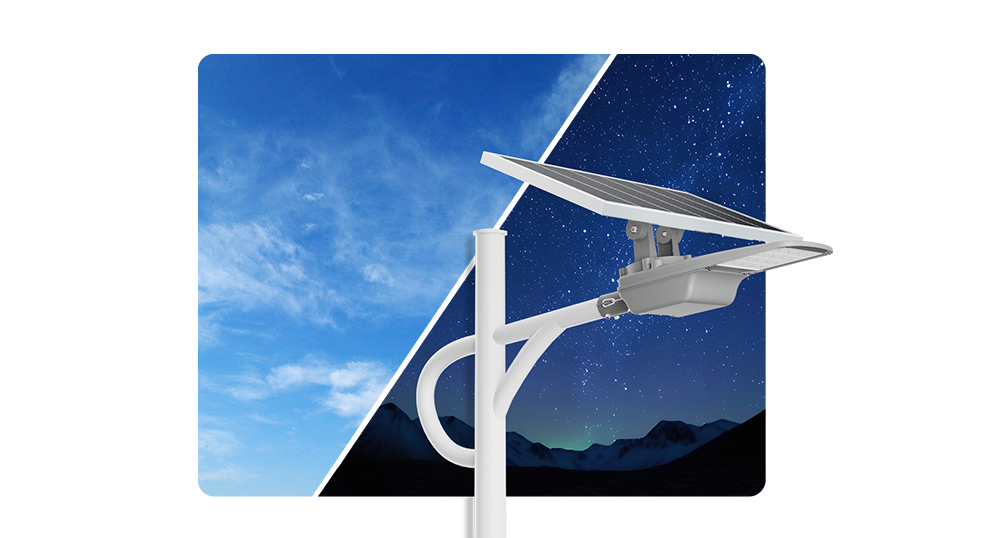

It automatically recharges during the day and turns on automatically at night
Charge on sunny/cloudy days Uninterrupted power on rainy days
Faster charging speed and longer life,
Compared to polycrystalline silicon photovoltaic panels per unit area, compact size, light weight, low wind resistance.
Charging efficiency 30% higher

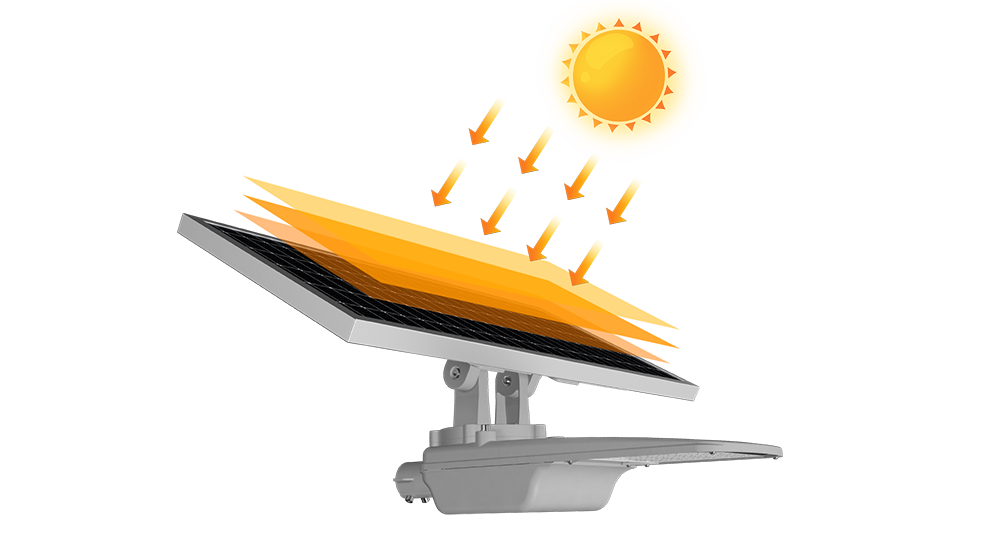

It is easy to adjust the optimal angle to maximize the reception of solar energy.

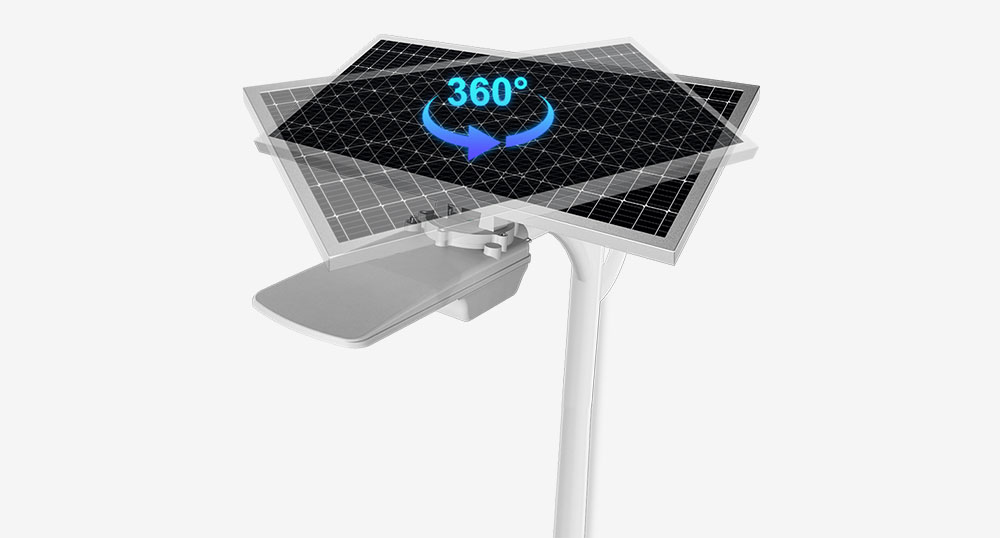

Photovoltaic panel vertically 52° and horizontally 360° adjustable
Lamp head elevation ± 10 ° adjustable

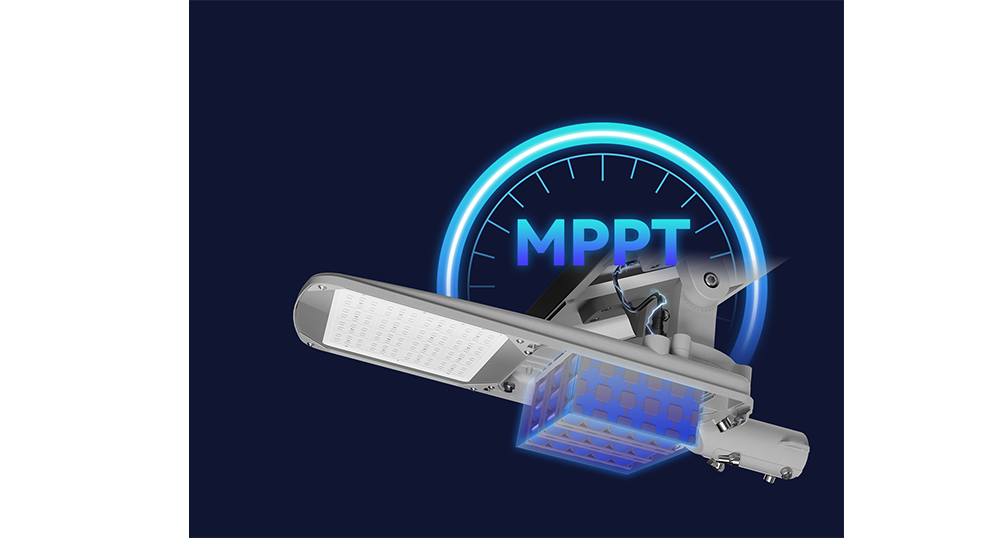

MPPT charging management
Ensure that the photovoltaic panel always charges the battery at maximum power and strives to maximize the conversion of light energy
LiFePO4 battery
32700 cylindrical LiFePO4 battery, cycle times> 2000
Safe, small self-discharge rate, no memory effect.
Battery protection and temperature management functions
Independent battery pack design, protected by iron box and insulation material, so that the battery can work normally in extreme environments.
The electrical box, which is below the photovoltaic panel, prevents ultra high temperature caused by too much sun exposure.

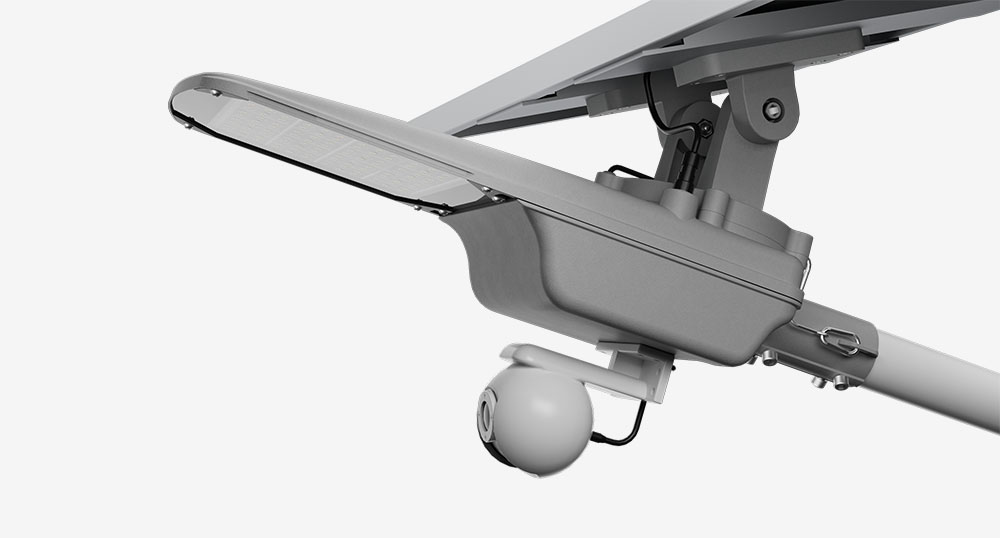

Equipped with an extra power supply interface (DC12V1A)
It can be used to power the camera or other detection equipment to some function of smart poles.

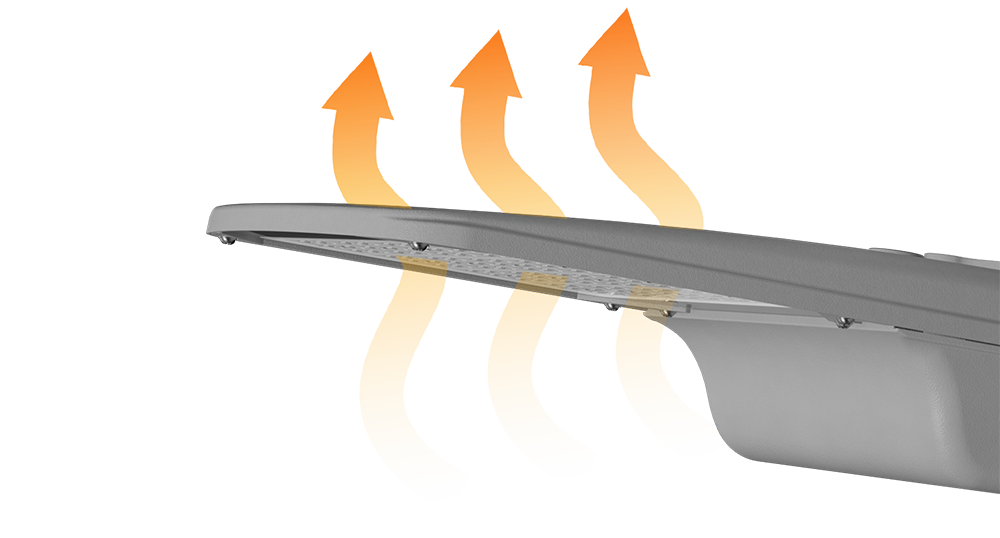

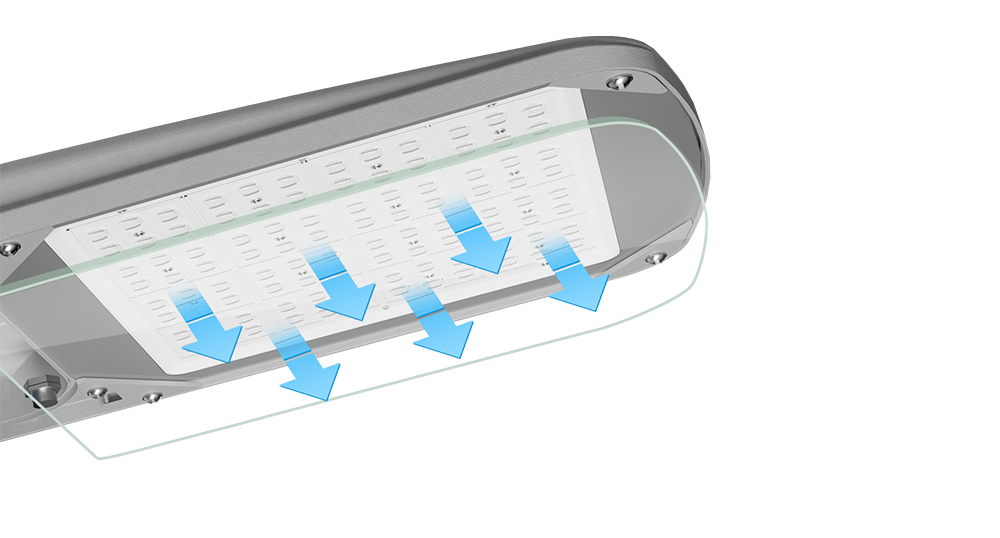

High brightness LEDs
The surface is made of tempered glass, with high light transmittance, anti-aging, and resistant to UV reflected from the ground, will not gradually turn yellow compared with PC cover.
Whole luminaire efficacy 180~200lm/W
One-piece die-casting
The housing is made of ADC12 die-cast aluminum in one piece, with 9 spraying process, and the connecting parts are made of 304 stainless steel, which is resistant to rain, snow and sand.
9 spraying process Anti-corrosion
1000 hrs Salt spray test

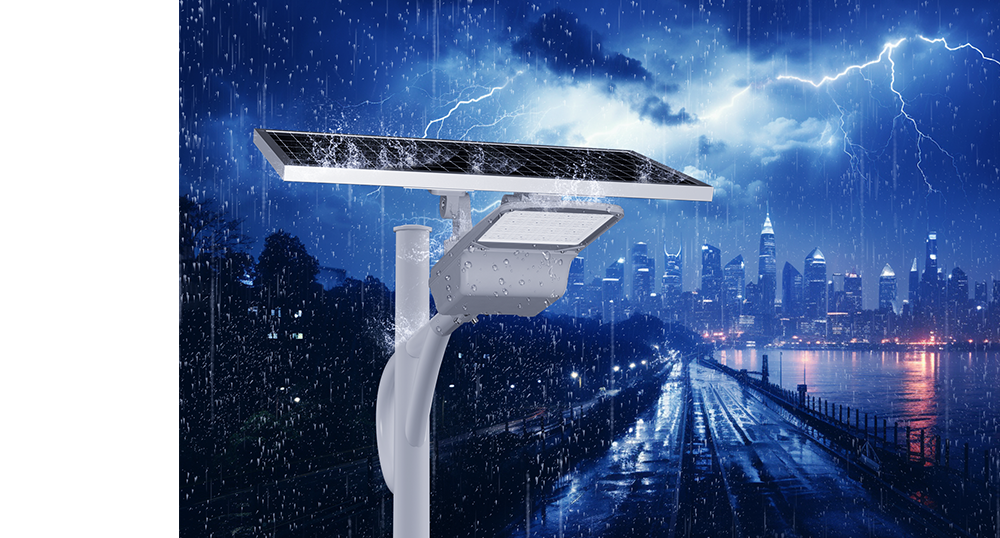

Multiple seals to protect you from stormy and snowy weather
Protection Class
IP66 IK08

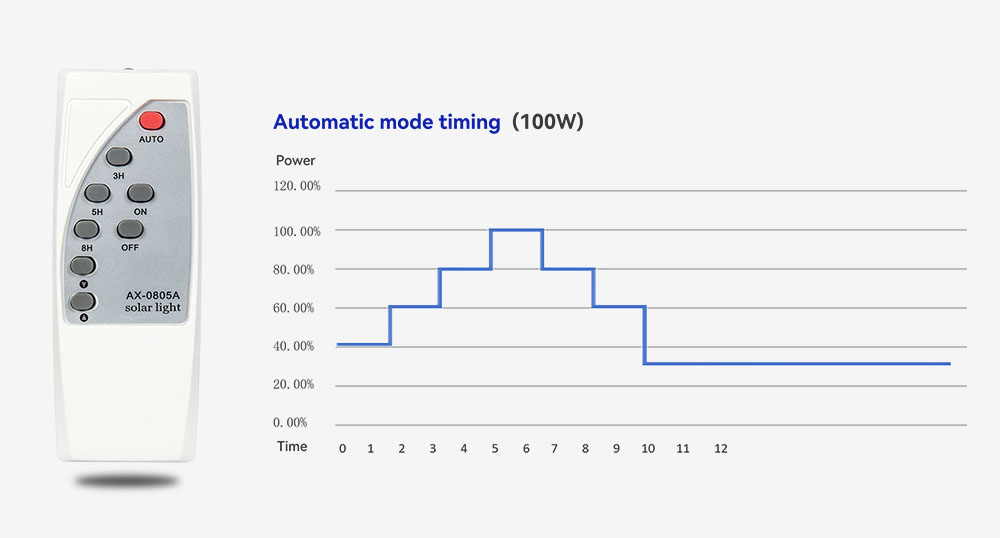

Remote control at anytime
Remote control, one-key timer switch, multi-time interval optional
AUTO MODE(12 Hours Max.)
MANUAL MODE（3H,5H,8H optional）
Optimized lighting mode
The brightness can be preset according to the lighting needs at different times throughout the day to ensure efficient use of energy and extend battery life .

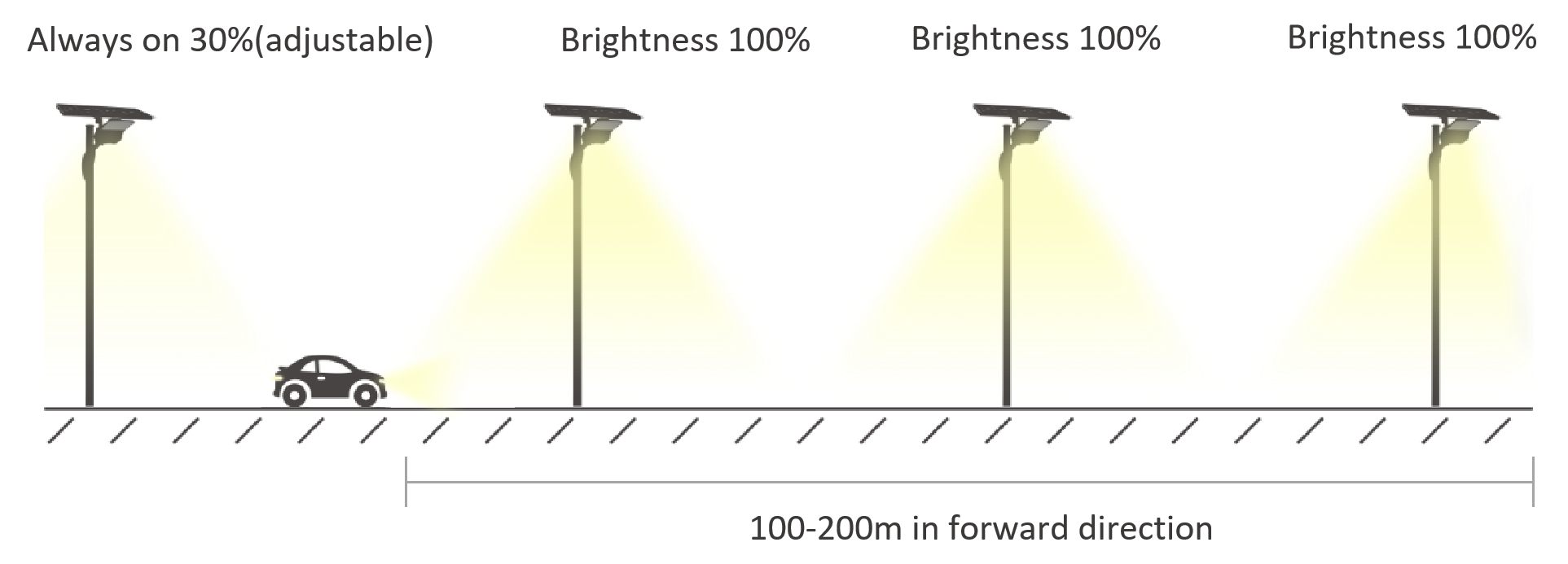

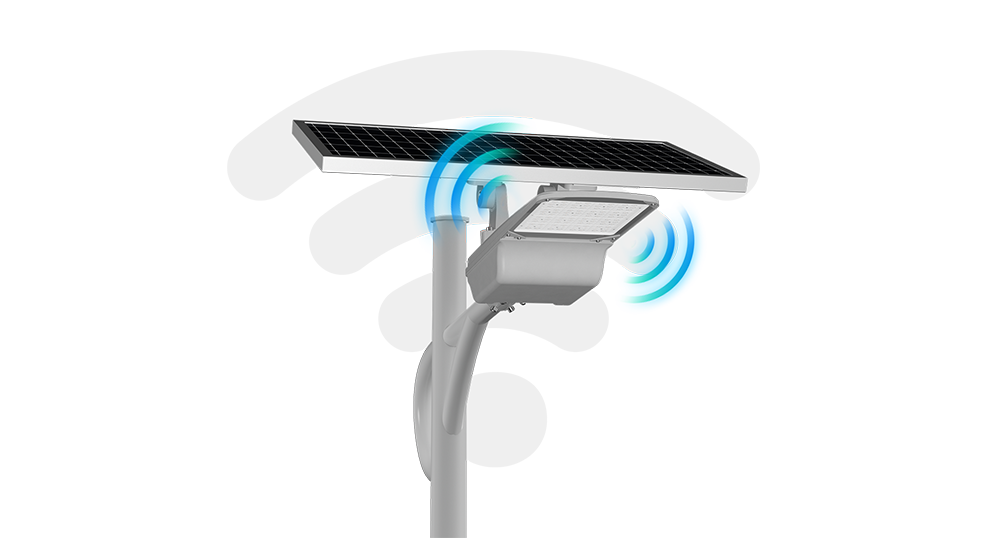

Automatic wake-up for safety and energy saving
On roads or periods with less traffic, automatic wake-up function can be used.Street light near 200m in the car's forward direction automatically adjusted to 100% brightness.
Light distribution
| Model | CCT | Beam angle | Lumen flux(lm/W) | Efficacy (lm/W) | Center light intensity(cd) |
S02-20 | 4000K | 140° x 70° | 3600 | 180-200 | 1272 |
S02-40 | 4000K | 140° x 70° | 7200 | 180-200 | 2543 |
S02-60 | 4000K | 140° x 70° | 10800 | 180-200 | 3815 |
S02-80 | 4000K | 140° x 70° | 14400 | 180-200 | 5086 |
S02-100 | 4000K | 140° x 70° | 18000 | 180-200 | 6358 |
High brightness, high CRI and low glare ensure safety
SDCM： ≤5 CRI：Ra≥70

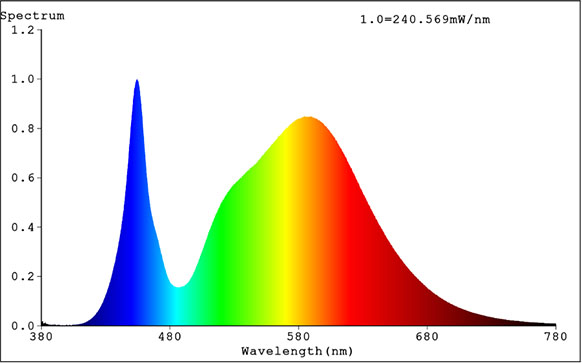

Energy distribution curve
Color rendering index: Ra=74.8 AvgR=64.9 TM30：Rf=77 Rg=93 R1=72 R2=83 R3=91 R4=72 R5=71 R6=75 R7=82 R8=52 R10=59 R11=67 R12=44 R13=74 R14=95 R15=65
Tool-less opening and easy maintenance
The independent battery pack is double-protected by an iron box and insulation material, so that the battery can work normally in extreme environments.

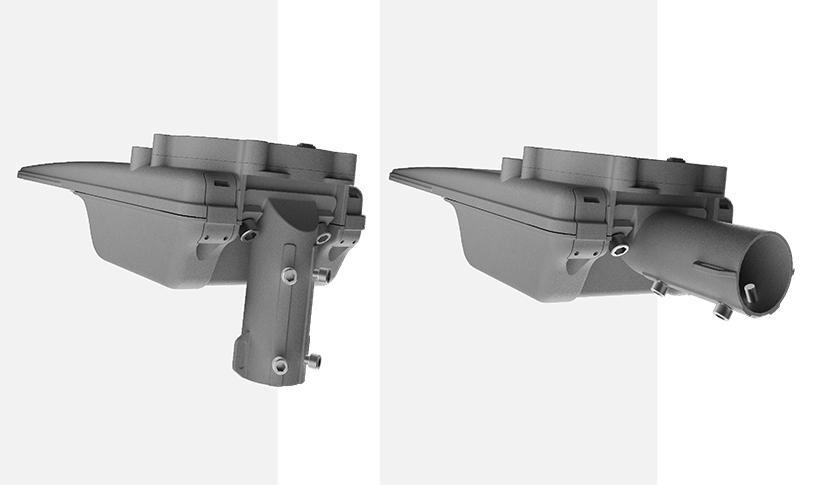

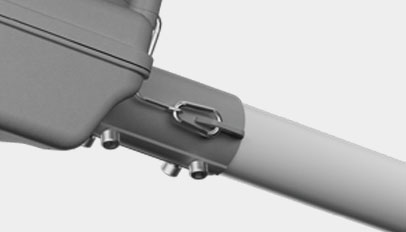

Elbow casing
The fixture can be adjusted ±15° and switched between straight and horizontal plugs simply switch connector orientation.
Installation height recommended
Applicable height
Applicable places

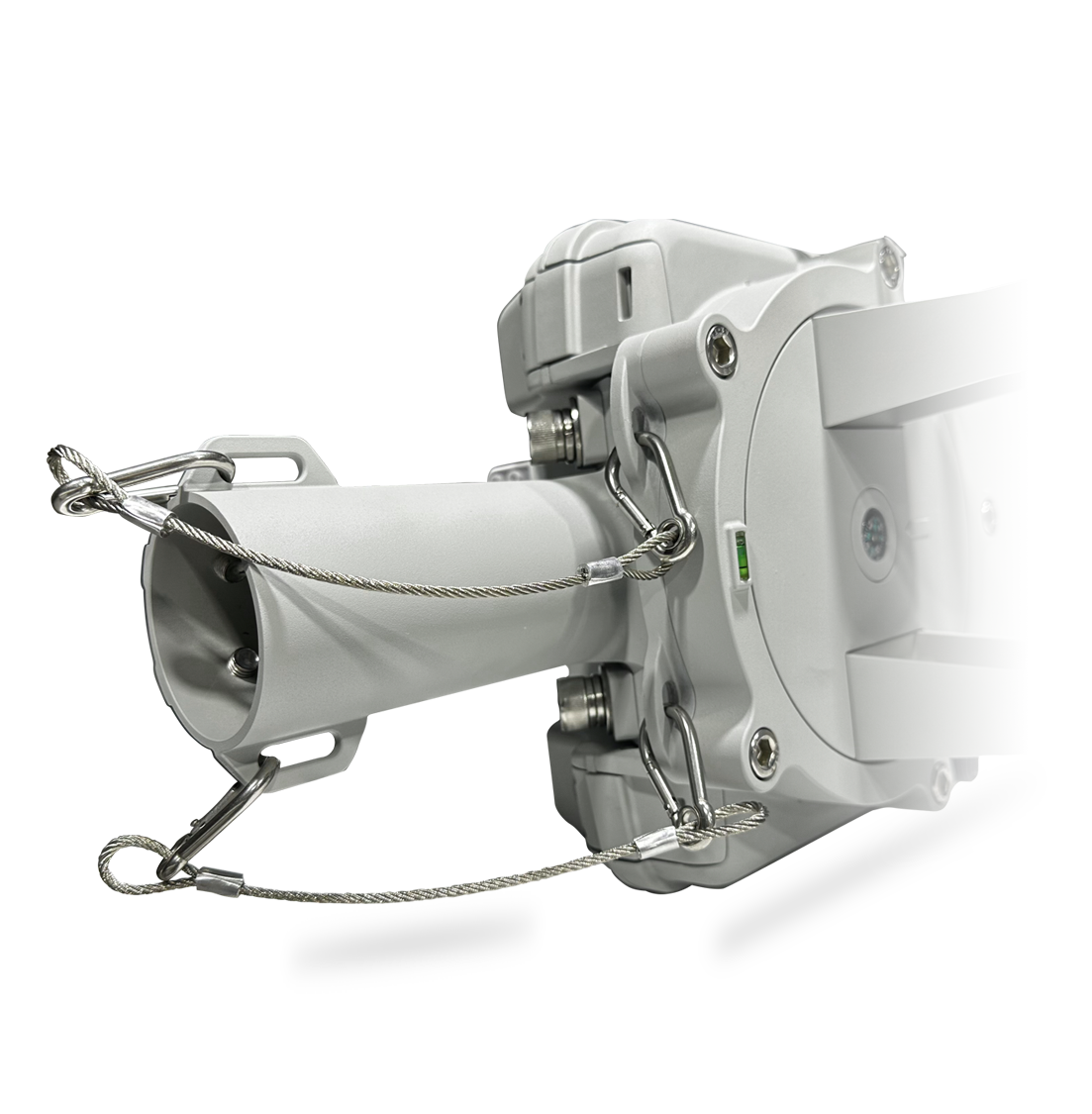

Double safety rope buckle design
Two safety ropes are buckled on the housing and arm to ensure that the structure is stable.

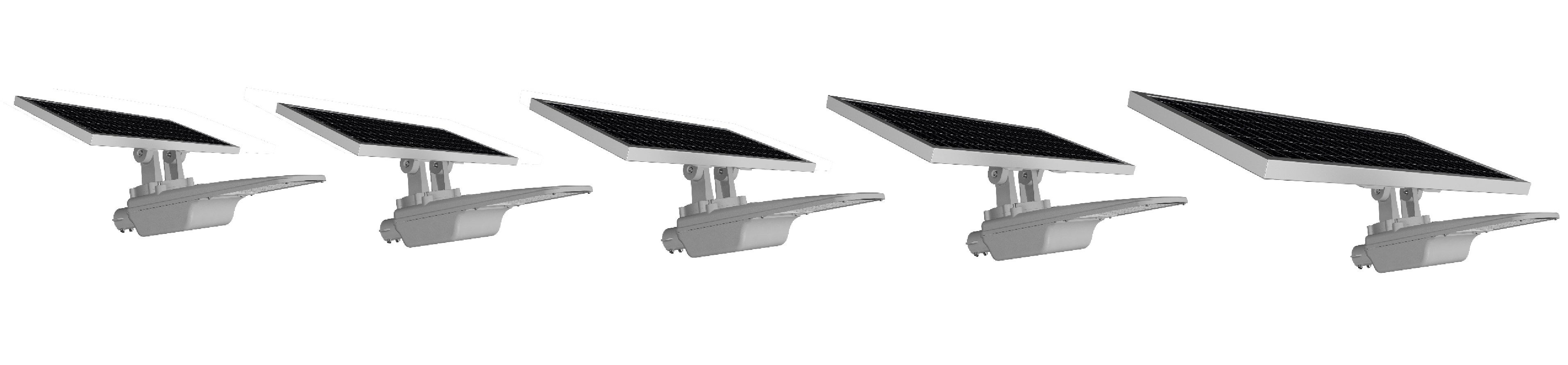

Model | S02-20 | S02-40 | S02-60 | S02-80 | S02-100 | |
| LED quantity | 64pcs | 192pcs | 256pcs | 288pcs | 384pcs | |
| Power | Light fixture | 20W | 40W | 60W | 80W | 100W |
| Solar panel | 40W | 80W | 120W | 160W | 200W | |
| Specification | Batter | 25.6V12AH | 25.6V18AH | 25.6V22AH | 25.6V24AH | 25.6V30AH |
Solar panel | 670*420*25mm | 770*670*25mm | 1022*670*30mm | 1320*670*35m | 1570*710*35mm | |
| Net weight | Light fixtur | 12kg | 13kg | 14kg | 14kg | 15kg |
Solar panel | 5kg | 8kg | 9.5kg | 13kg | 15kg | |
Type of solar panel | High efficiency monocrystalline silicon | LED model | LUMILEDS 3030 | Charging time | 5-7 hours |
Vlotage of solar panel | DC36V | CCT | 3000-6500k (4000K default) | Battery life @ full power | 7.5 hours |
Life of solar panel | 20-25 years | Efficacy lm/W | 180-200lm/W | Continue time of light control | 4-5 rainy days, 12hours per day |
Adjustable angle | Photovoltaic panel:horizontally 360°, vertically 52° Lamp head:elevation ± 10 ° | CRI | ≥70(80 optional) | Control mode | Auto mode, Custom mode, Microwave mode |
Battery type | LiFePO4 | Beam angle | 140° x 70° | Working temperature | -20℃ ~ +45℃ |
Battery life | 8 years | Lifespan | ≥50000H | Storage temperature | -20℃ ~ +50℃ |
Controller | MPPT charging mgt,MCU control | Sensor | Microwave, Remote control | Recomended mounted height | 4-6m,6-7m,7-8m,8-10m,8-10m |
material of lighting fixture | Housing:strengthen die cast aluminum, surface: glass | Detective range | 10-15m | Intallation sapcing | 13-16m,19-23m,27-31m,30-35m, 30-35m |
size of lighting fixture | 756*260*157mm | Inner diameter of casing | 64mm |
