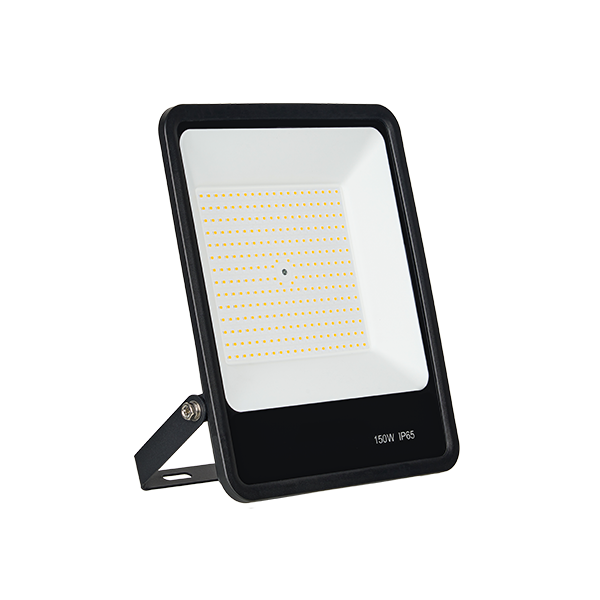

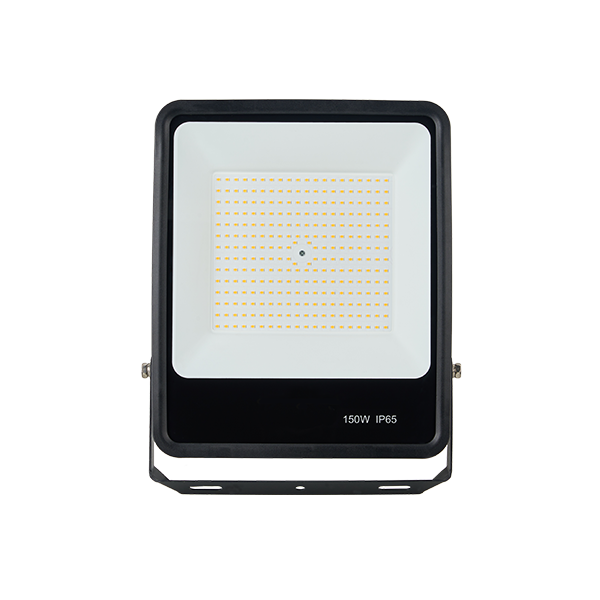

The F02 Flood Light Series is designed for outdoor and large-area lighting applications that require high efficiency, durability, and flexible installation. Featuring an ultra-slim integrated design, seamless front frame structure, and high-performance heat dissipation system, the F02 floodlight delivers powerful illumination while maintaining a compact and modern appearance.
With high luminous efficiency up to 140 lm/W, durable aluminum housing, and IP66 protection, the F02 series provides reliable lighting for sports fields, industrial areas, building facades, ports, and outdoor infrastructure.

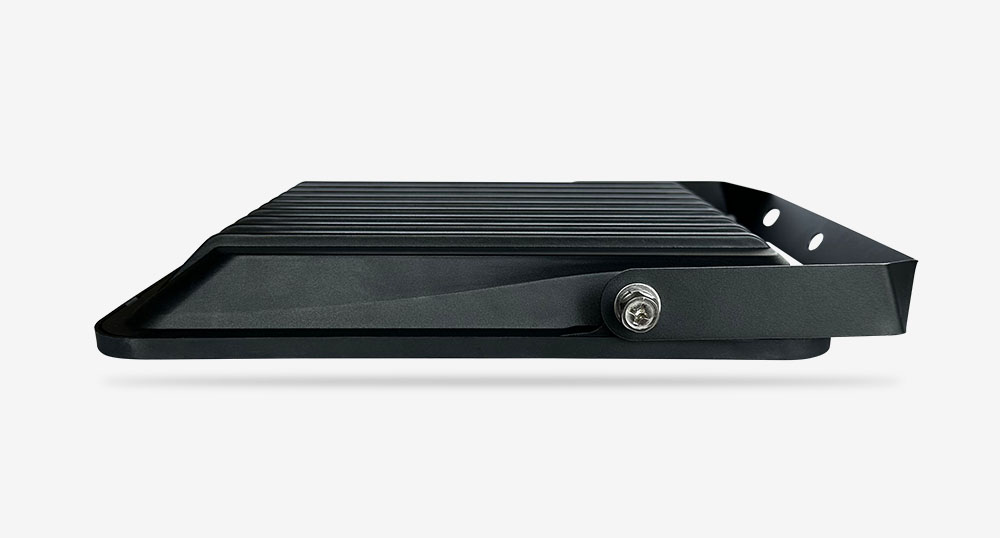

The simple design and built-in driver make
the housing ultra-thin and compact.
Only 34 mm tick

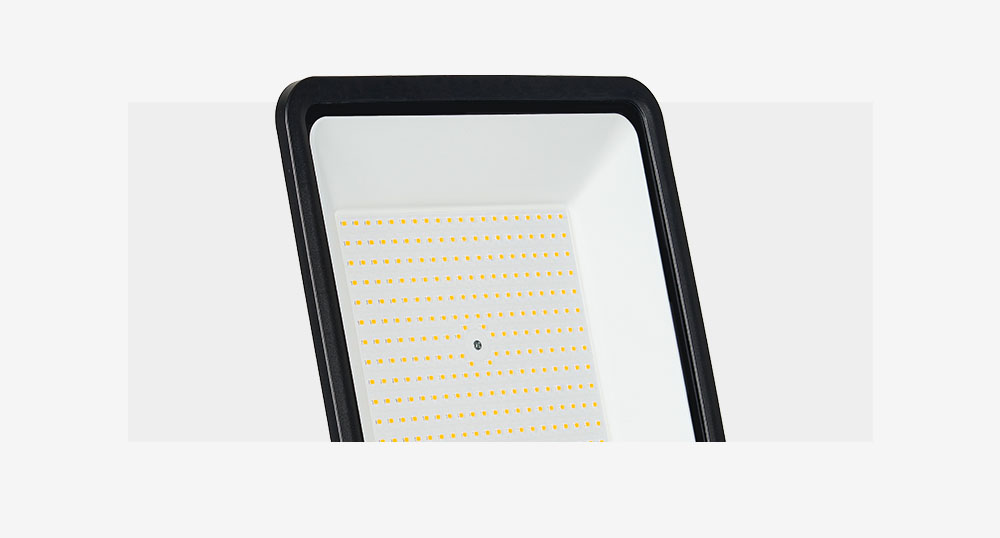

The front frame and glass panel are seamlessly integrated, ensuring waterproof and dustproof.

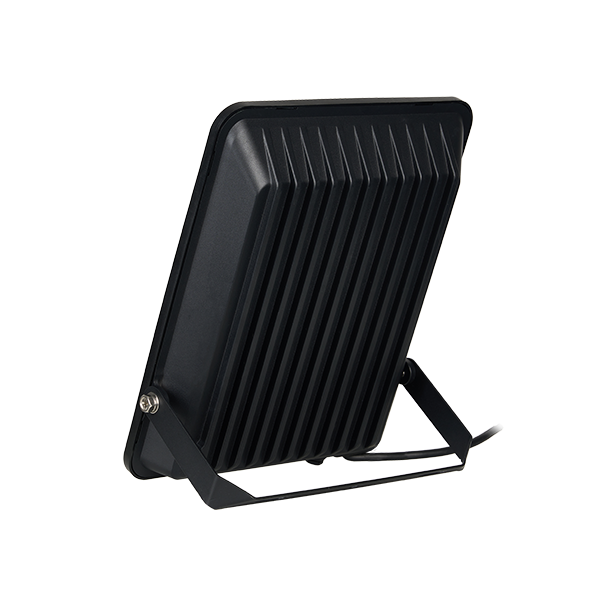

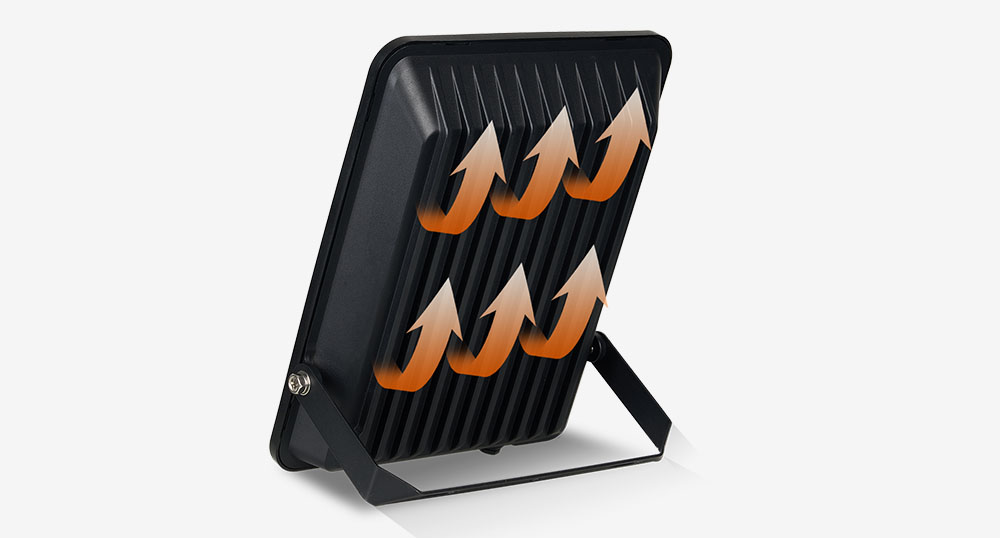

It adopts hit radiation rib design for heat dissipation , which enable heat extends to the top and bottom of housing, making heat dissipation more efficient and ensuring the life of the LED chips.

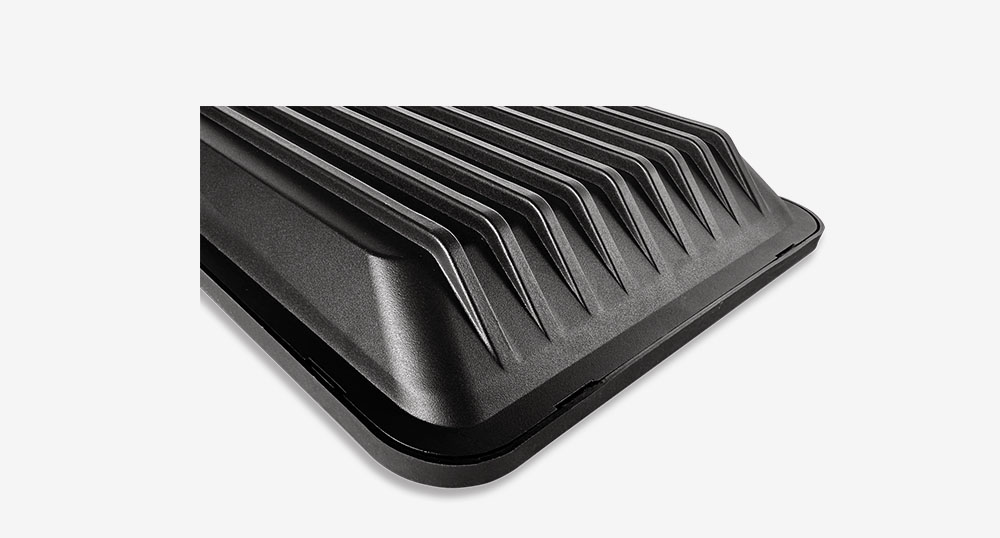

Precision aluminum die-casting, with good heat dissipation thermostability , sturdy and durable.

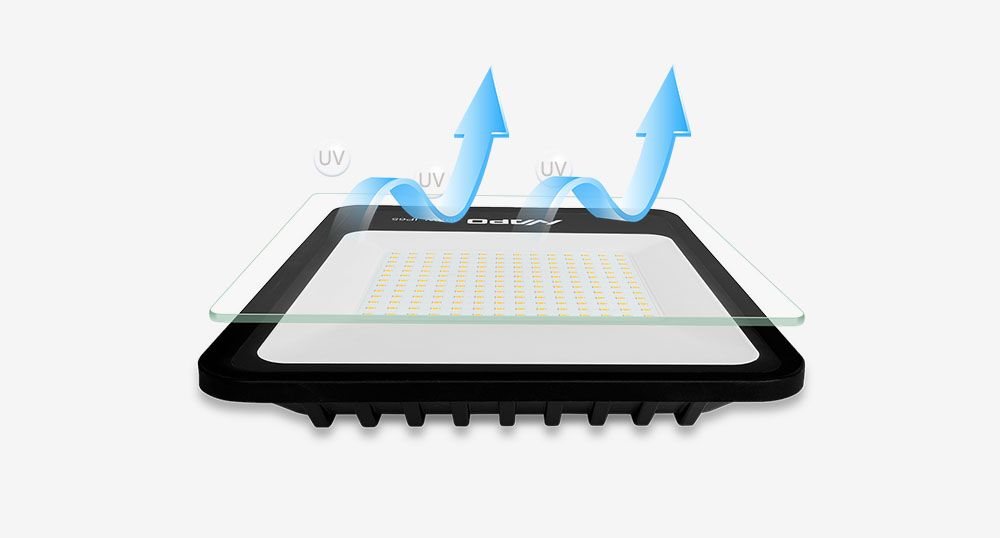

Using professional tempered glass with high transmittance. Impact resistance level up to IK06.
Corrosion-resistant and UV-resistant

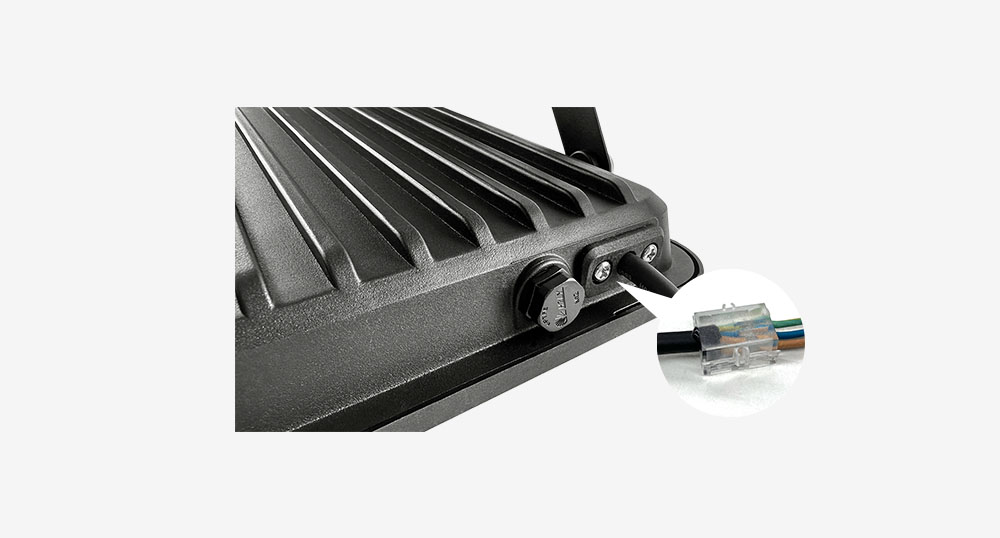

Prevent short circuit accidents caused by water siphoning into damaged wires.
Lifespan: L70@25℃ ≥30000 Hours
SDCM：SDCM≤5 CRI：Ra≥80

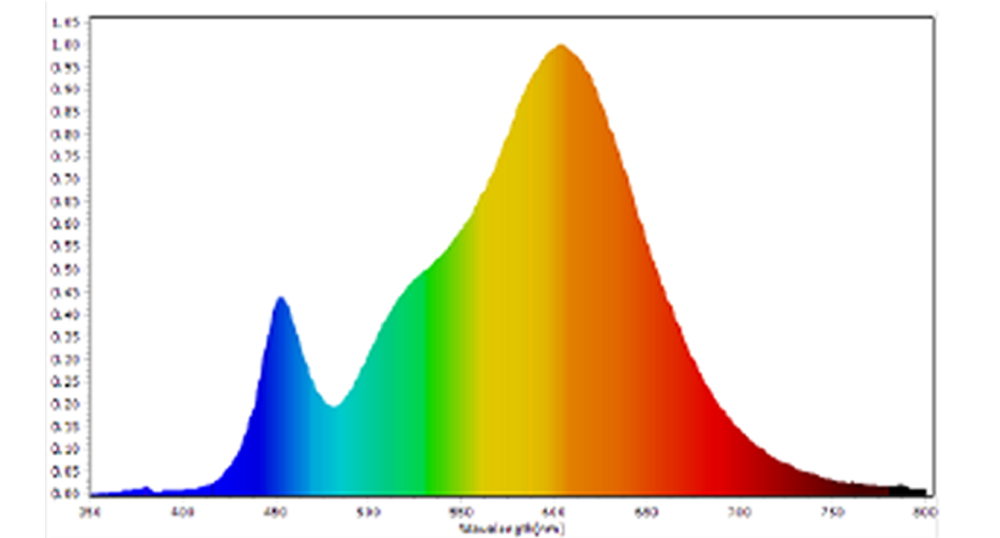

Energy Distribution Graph
Color Rendering Index：Ra=82.27
Color Fidelity Index：Rf=83.96
Color Saturation Index：Rg=95.27
Full Color Gamut Index（GAI）：93.8 R1=77.0 R2=87.9 R3=98.5 R4=85.1 R5=85.9 R6=92.8 R7=77.9 R8=52.6 R9=0.0 R10=75.4 R11=84.2 R12=75.9 R13=79.2 R14=99.3 R15=68.5

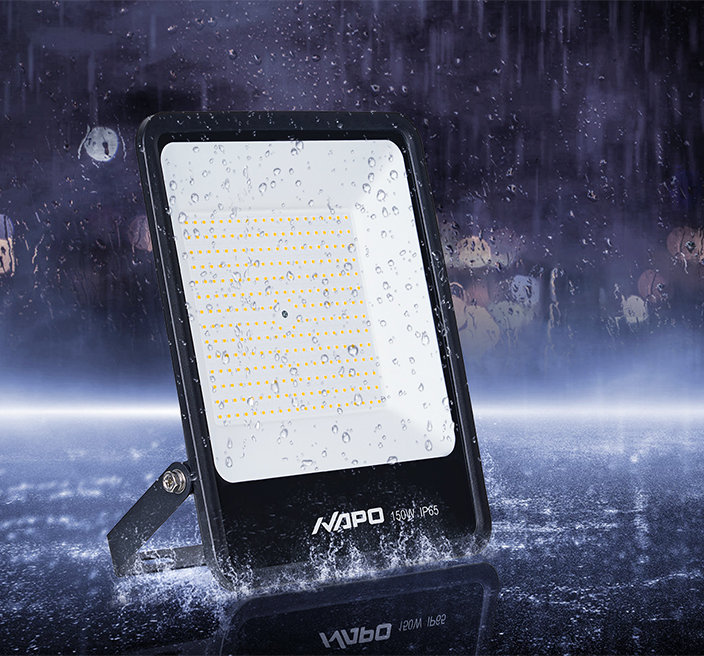

Multiple sealing treatments to ensure good protection, no fear of any harsh weather.
Protection Level IP66
SPD Protection
Waterproof and Rust Proof
Special for outdoor environment
Suitable for outdoor environments with great temperature differences,
such as extremely cold or extremely high temperature environments.

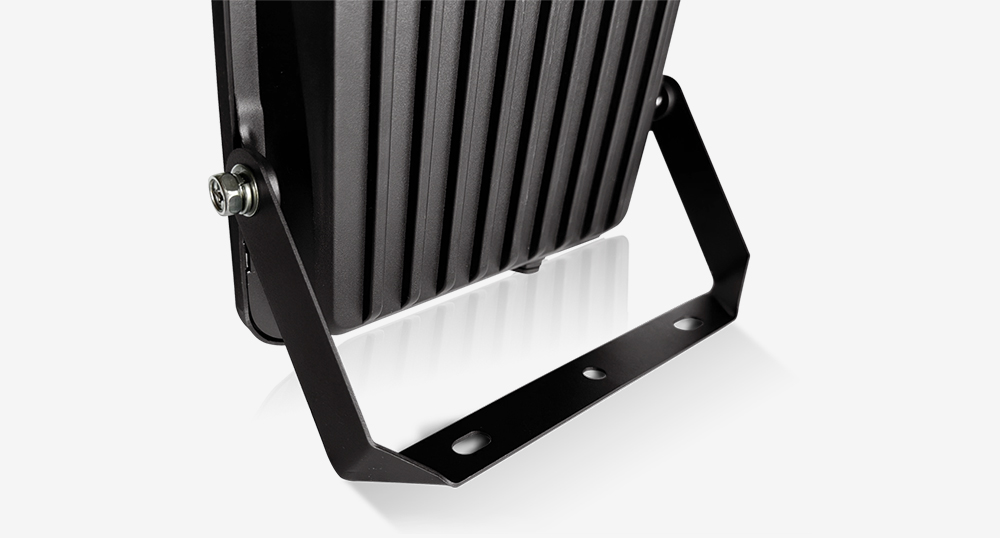

Bending bracket design allows screw holes fully visible for quick and accurate mounting
When the supporting arms of bracket and the mounting surface are bent along the bending line, they form an angle that allows the screw holes fully visible, and an electric screwdriver can be used to achieve quick and accurate installation.
Utility Model Patent
Patent Number： ZL 2022 2 1262336.1
Details represent quality
Unique patented mounting component design, ensures installation more convenient and faster
Bending Bracket
Quick and easy installation

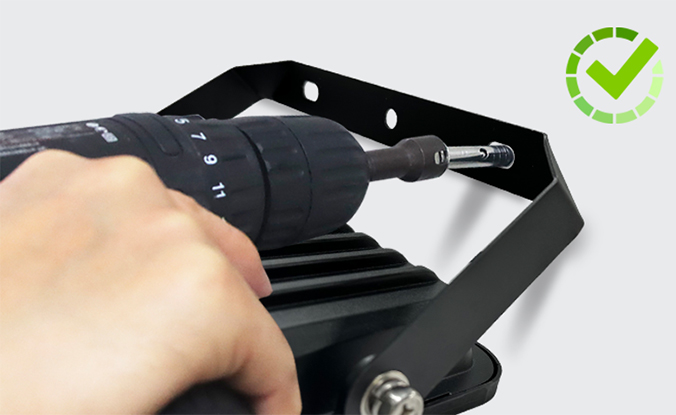

Bending bracket enable to lock screws
With power tools.

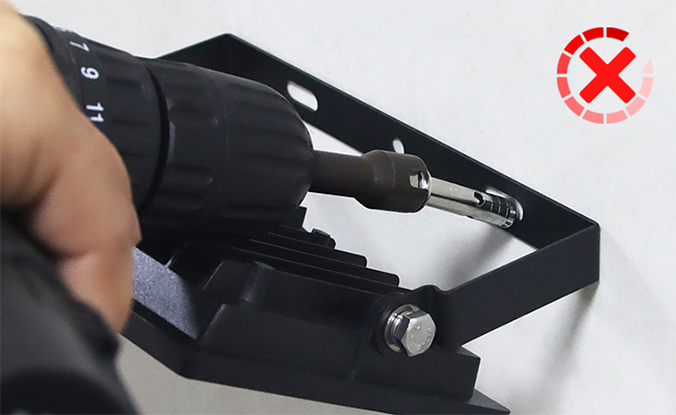

Ordinary Bracket
Unable to use power tools
Unable to use power tools, time consuming and unsafe.

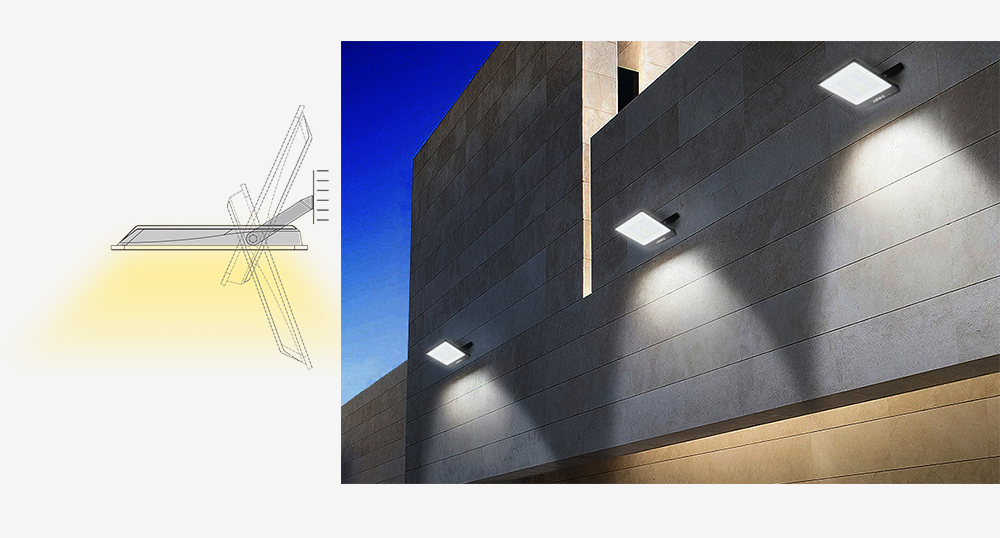

The luminaire can be adjusted freely,
and highly compatible for various installation conditions.

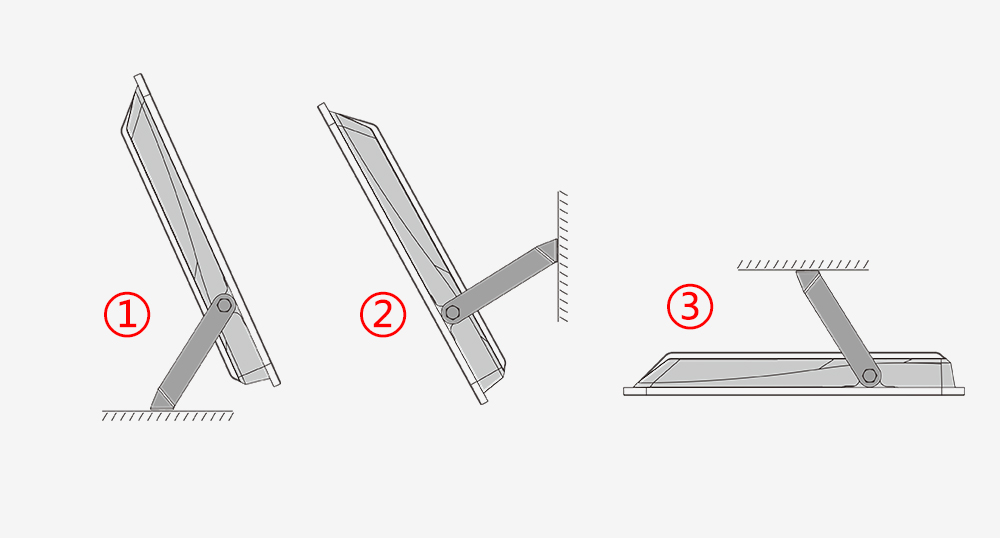

① Surface Mounting
② Side Mounting
③ Ceiling Mounting
The fixture can be tilted by 224°
Suitable for more installation conditions

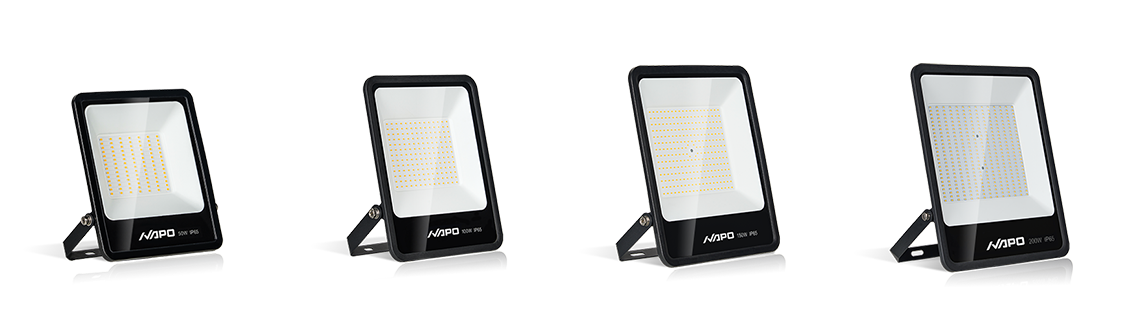

| Model | F02-50 | F02-100 | F02-150 | F02-200 | |
Powe | 50W | 100W | 150W | 200W | |
Size（L*W*H） (without bracket) | 190x165x34mm | 270x213x38mm | 315x260x46mm | 361x301x47mm | |
LED Quantity | 70LEDs | 140LEDs | 210LEDs | 280LEDs | |
Luminous Flux | 3000K | 4,500lm | 8,910lm | 13,290l | 17,300lm |
| 4000K | 5,750lm | 9,750lm | 14,540lm | 19,010lm | |
| 5000K | 5,100l | 9,990lm | 14,900l | 19,480lm | |
Weight | 0.55kg | 1.13kg | 1.6kg | 2.2kg | |
