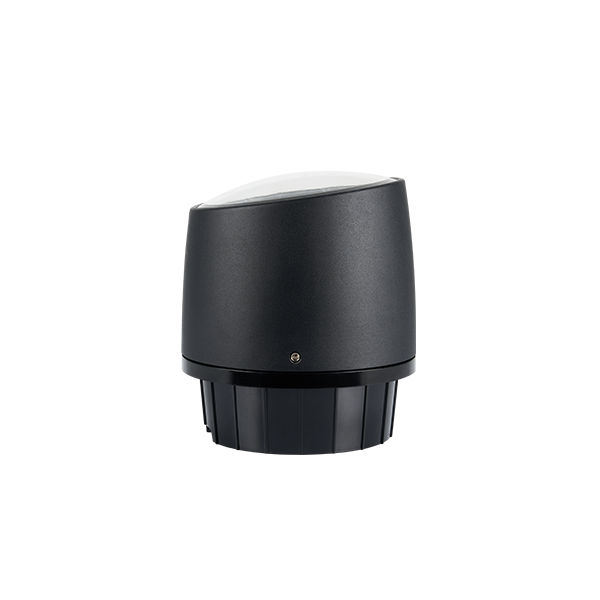

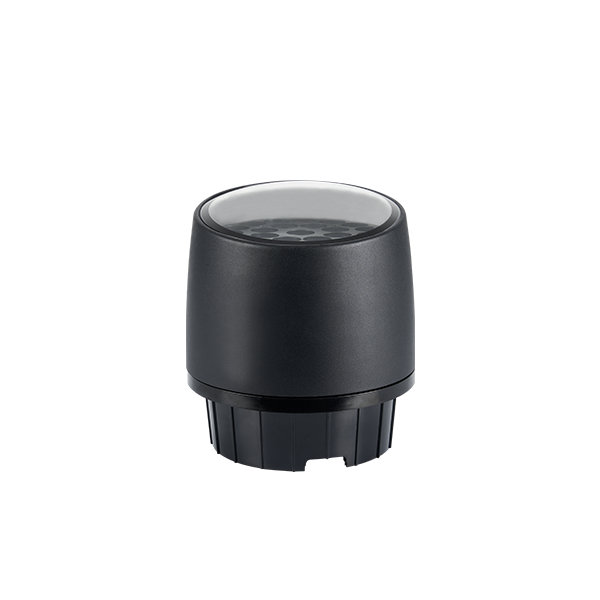

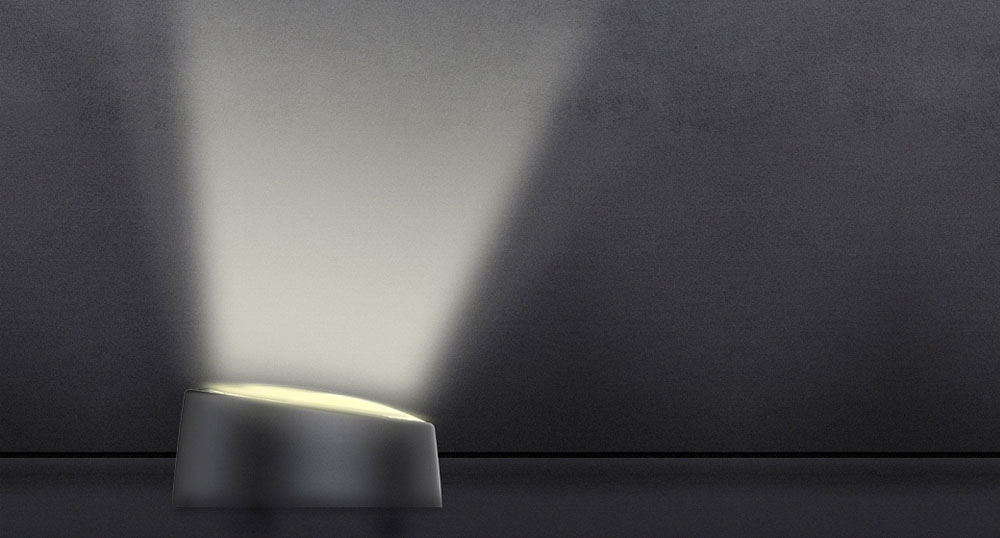

Semi-Recessed Tree Lighting Solution for Landscape & Garden Applications

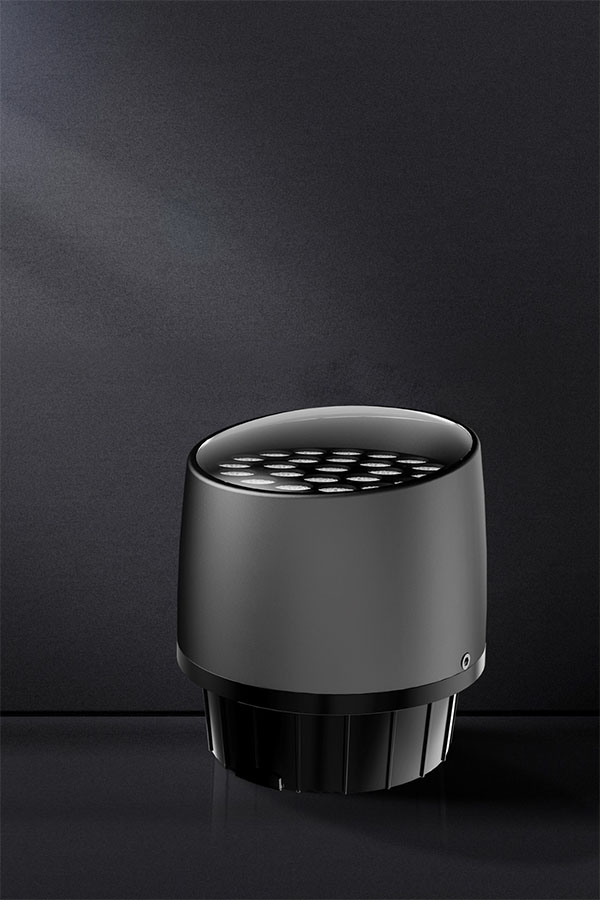

Inspired by the traditional waist drum , the HUG-706 Underground Light integrates cultural aesthetics with modern outdoor lighting technology. Its rounded and smooth form symbolizes harmony and stability, making it an ideal lighting solution for parks, gardens, and tree illumination scenarios.
Designed for both surface-mounted and semi-recessed installation, the HUG-706 delivers soft, uniform lighting while maintaining excellent durability in harsh outdoor environments.

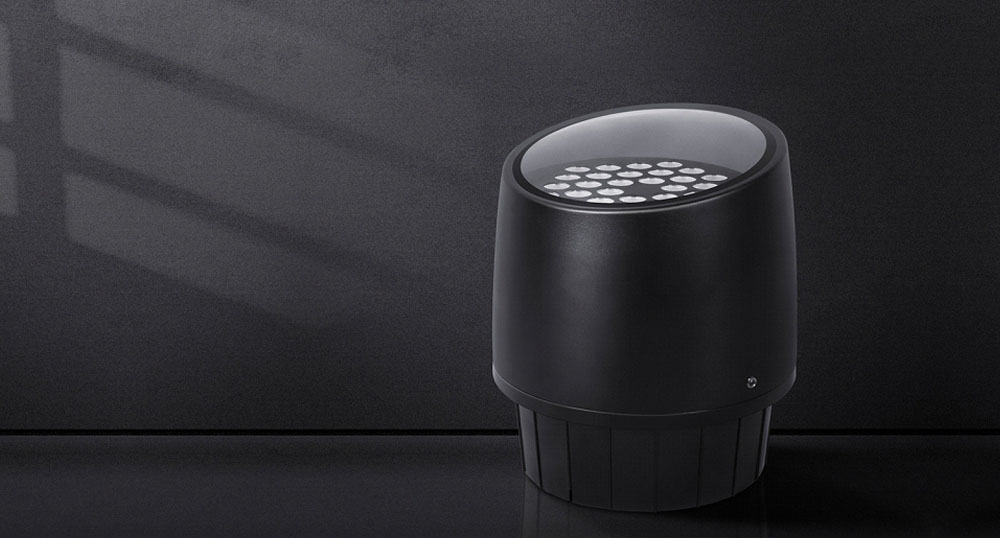

Featuring an integrated, streamlined appearance for a clean and elegant look.
Multiple technical features upgrade landscape design.The spherical glass surface effectively prevents dust, fallen leaves and other dirt buildup.
The spherical glass surface effectively prevents dust, fallen leaves and other dirt buildup.

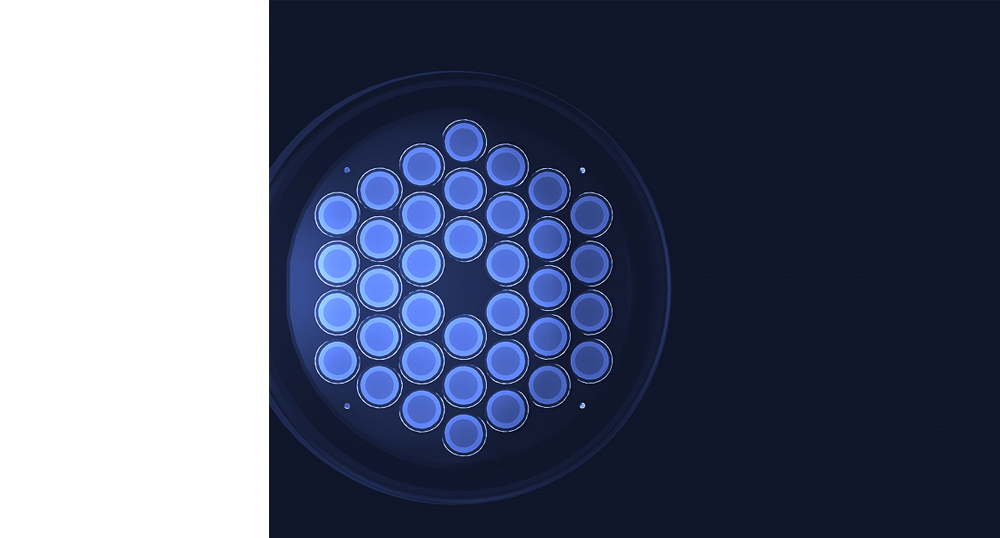

Built-in anti-glare design for enhanced anti-glare performance.
IP67 waterproof rating adapts to various outdoor environments.
Surface-mounted and semi-recessed installation options enable diverse scene lighting effects.

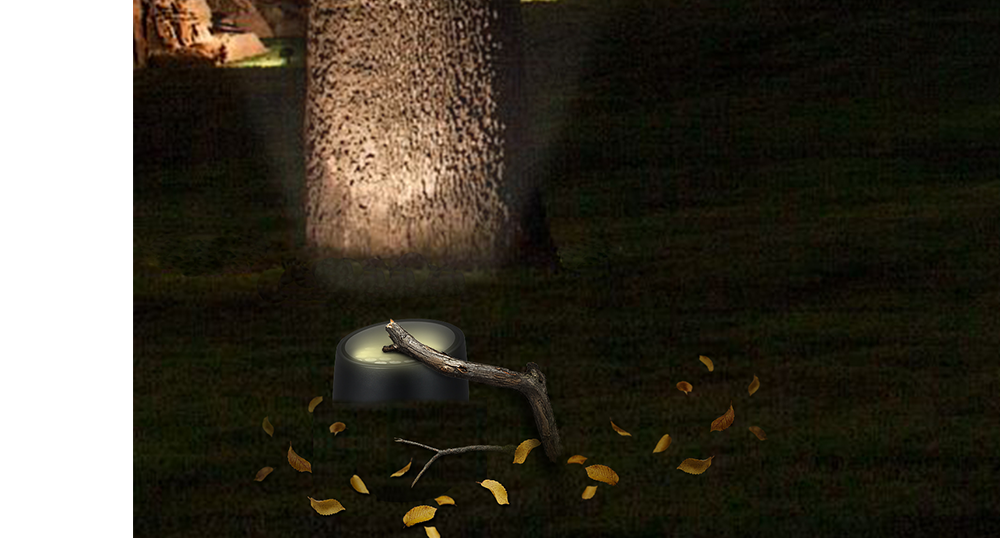

Self-Cleaning & Long-Lasting High Brightness

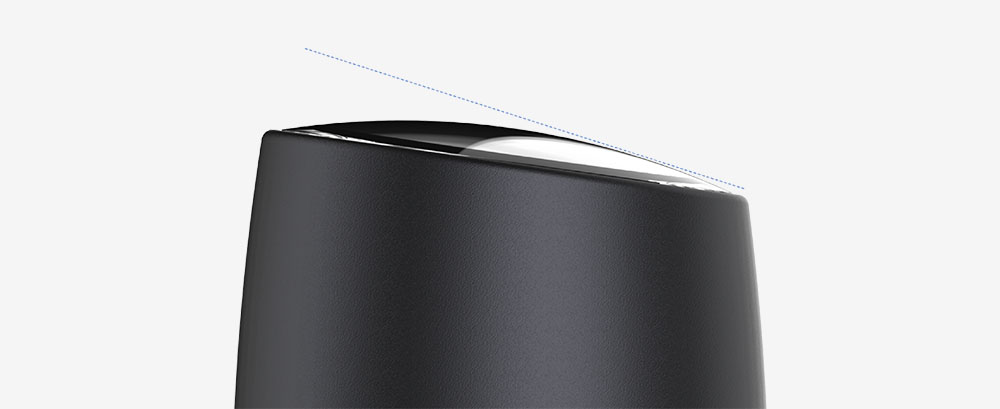

Featuring curved tempered glass panel with a smooth surface that prevents accumulation of dust, fallen leaves and other contaminants.
The panel is tempered to avoid injury from accidental breakage.
8° bevel design for anti-glare

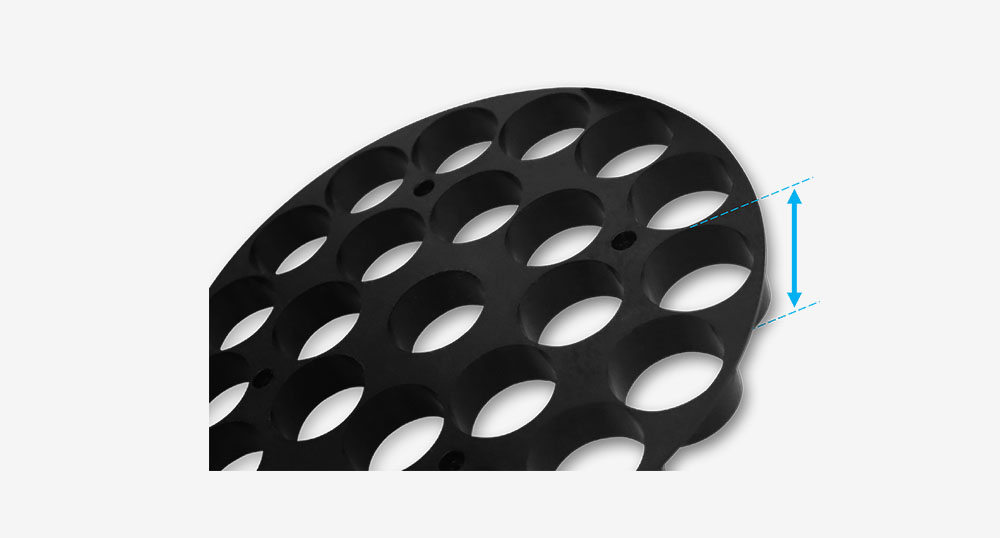

12mm anti-glare tube
Combined with curved glass panel for dual anti-glare effect

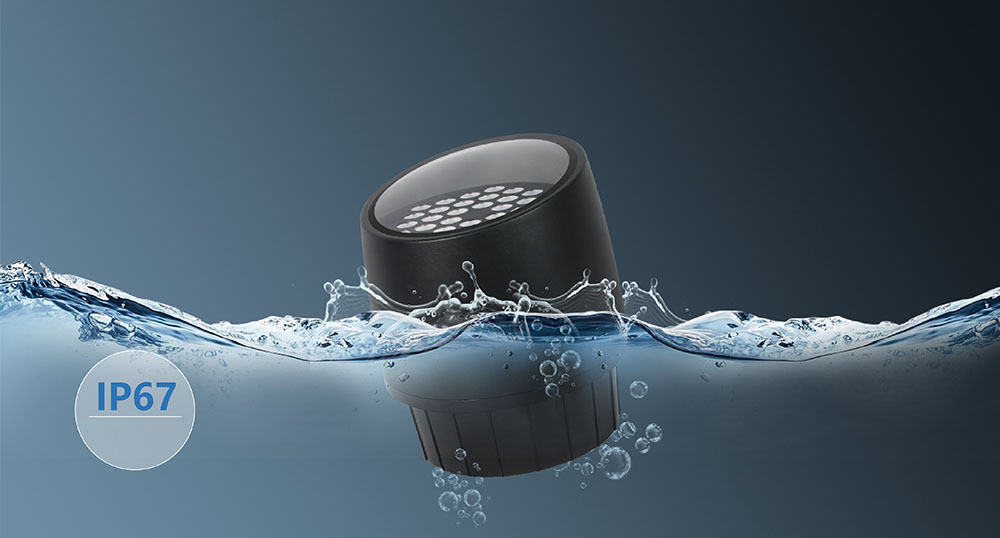

High structural strength and excellent waterproof performance, adapting to various outdoor environments.
IP67

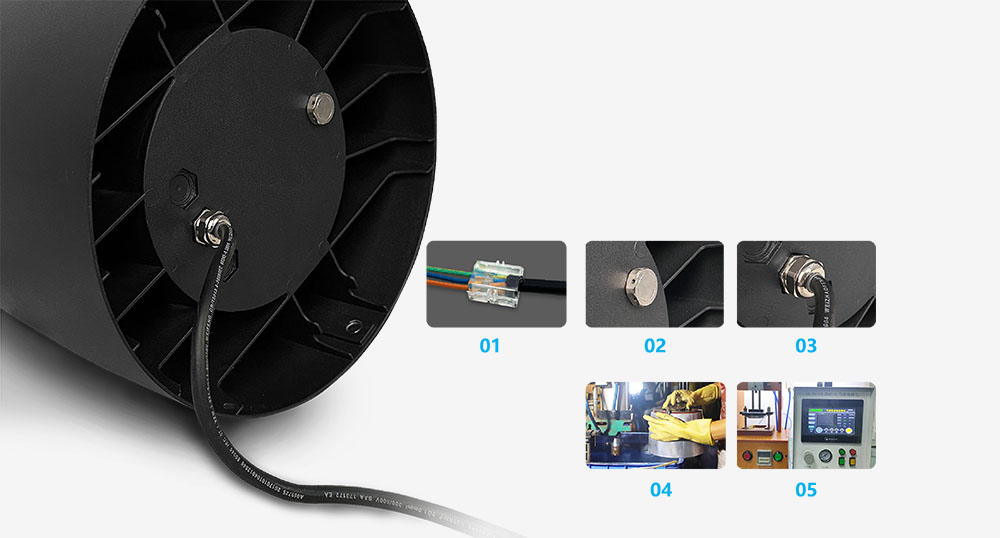

01. Anti-siphon design
Prevents water ingress due to cable damage
02. Breather valve
Balances internal and external air pressure
03. Metal waterproof cable gland
Ensures long-term sealing reliability
04. 100% air-tightness testing
Guarantees structural sealing
05. Finished product waterproof testing
Ensures full luminaire protection
The lamp body is die-cast from aluminum alloy and finished with fluorocarbon coating for excellent corrosion and rust resistance.

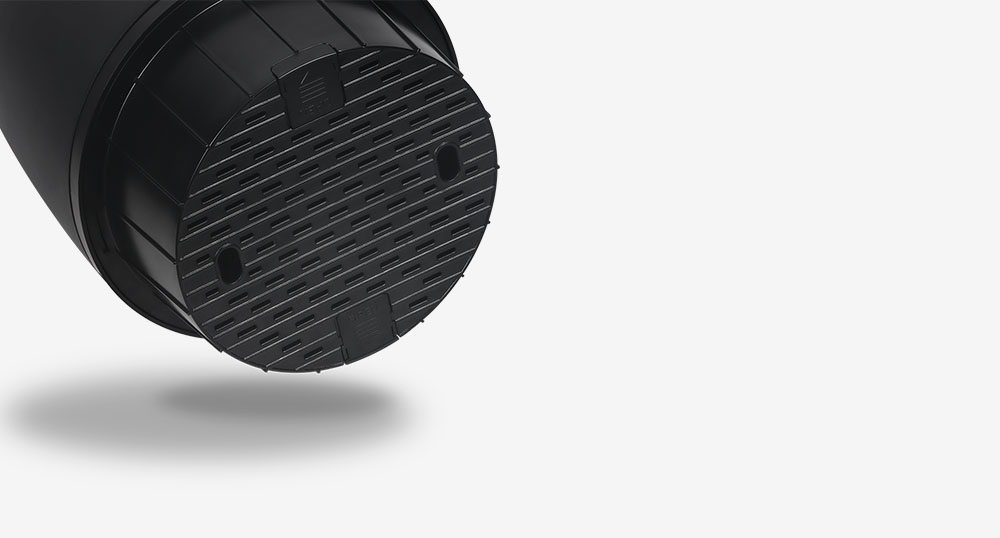

For outdoor semi-recessed installation, the embedded parts are made of PC plastic, suitable for soil with varying levels of moisture, oxygen, salinity, temperature, pH value and microorganisms.
PVDF Coating
Passes 500-hour neutral salt spray test in accordance with ASTM B117.
IK08
Impact and Pedestrian Pressure Resistant
-40℃ - 50℃
Fearless of outdoor environments with extreme temperature differences.

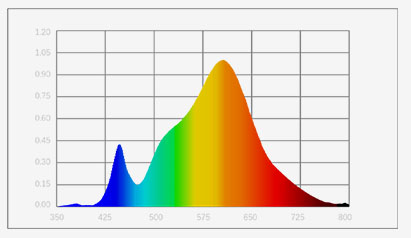

CRI ≥80 R9 ≥ 6.2
Luminous Intensity Distribution Curve
Semi-recessed Installation
Surface-mounted Installation
Semi-recessed Installation - Angle Adjustable
±15° bidirectional angle adjustment for enhanced applicability.
Suitable for garden trees, building facades, buildings, columns, square lighting, roads and other scene
Product Specifications (mm)
Product Parameters
| Model: HUG-706 | Dimension: Φ200×225mm | IP Rating: IP67 |
| Power: 24W / 36W / 50W / 60W | Control Mode: ON/OFF / DMX512 | IK Rating: IK08 |
| Voltage: AC220V | CRI: ≥83 | Operating Temperature: -40℃ ~ 50℃ |

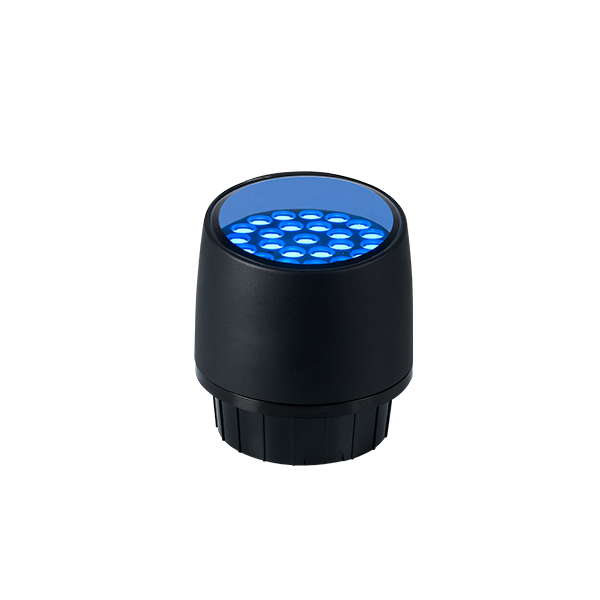

Color Temperature: 3000K / 4000K / RGB / RGBW | Surface Treatment: Fluorocarbon Coating | Optional Accessory: Embedded mounting part |
Beam Angle: 10° / 15° / 30° / 45° / 60° | Waterproof Design: Integrated waterproof structure | Mounting: Surface-mounted / Semi-recessed |
