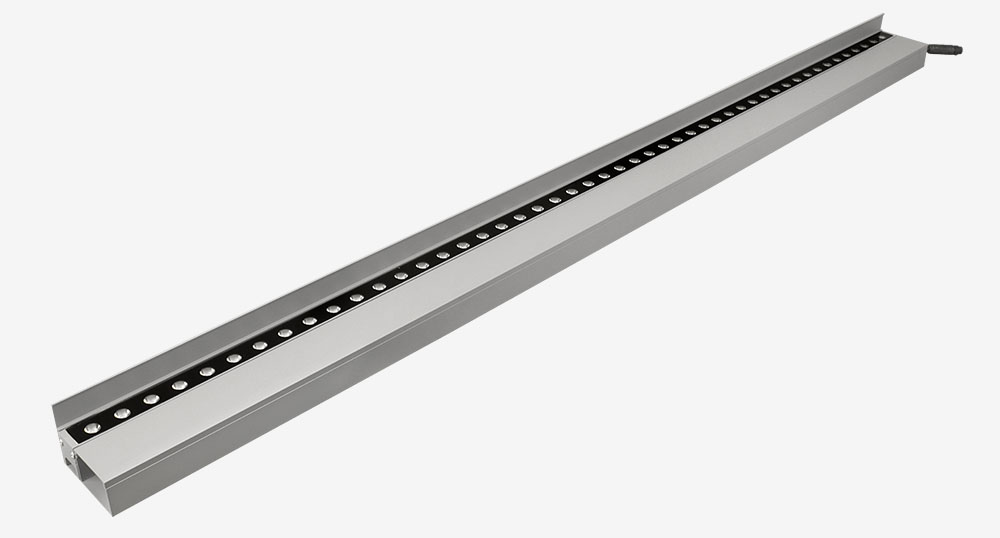

HWW-135 LED wall washer light is a professional outdoor architectural lighting fixture designed for facade illumination, commercial buildings and landscape projects. With DC24V/DC48V low voltage options, IP66 waterproof protection, multiple beam angles and DMX512 control, it delivers uniform and efficient wall washing effects for modern outdoor lighting applications.
Designed for professional outdoor architectural lighting projects, the HWW-135 LED wall washer light combines an integrated aluminum profile structure, precise optical control and IP66 waterproof protection to deliver reliable and high-performance facade illumination solutions.
The aluminum profile housing combined with tempered glass cover creates a compact and streamlined structure, perfectly matching different architectural facades.
Professional coating technology provides excellent corrosion resistance and durability for coastal and harsh outdoor environments.
Available in different power versions with stable DC24V/DC48V low voltage operation for safe and energy-efficient lighting applications.
Various CCT and beam angle options provide flexible lighting effects for different facade heights and installation distances.
The integrated sealed structure provides IP66 protection against dust and water, ensuring reliable outdoor operation.
Supports base mounting, L-type adjustable brackets and butterfly clips for walls, columns and various architectural structures.

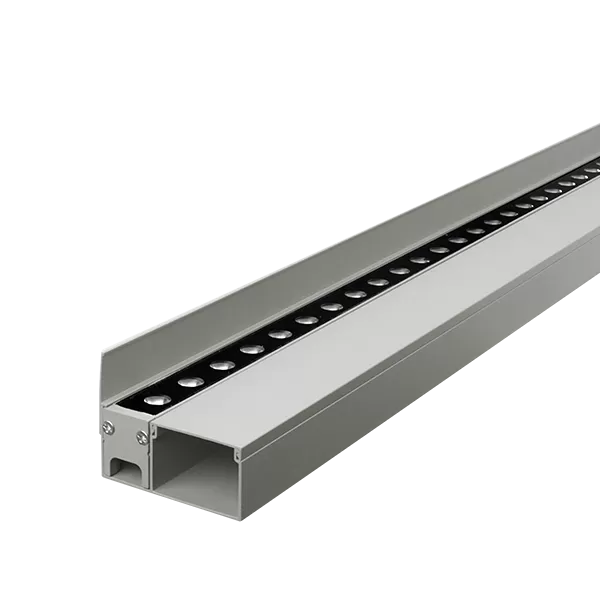

The HWW-135 LED wall washer light features an integrated aluminum profile structure, tempered glass cover and professional waterproof design. Every structural component is optimized for durability, heat dissipation and precise architectural illumination, making it suitable for outdoor facade lighting and landscape lighting projects.
The lamp body is made of high-quality aluminum profile, providing a sturdy structure with excellent heat dissipation performance.
Tempered glass combined with an optical visor ensures uniform light transmission, reduced glare and improved visual comfort.
Professional powder coating provides excellent resistance to salt spray, weathering and aging for long-term outdoor applications.
The sealed structure achieves IP66 protection, ensuring reliable operation in dusty, rainy and harsh environments.
Multiple beam angles including 10°, 18°, 28°, 45° and 15×45° allow precise lighting distribution for different facade applications.
The integrated mounting design provides easy and stable installation for walls, columns and architectural structures.
OPTICAL SPECIFICATION HWW-135 | ||||||||
POWER (W) | LUMEN (lm) | CRI | CCT | EFFICACY (lm/W) | BEAM ANGLE | SDCM | DIMENSION(mm) | DIMENSION(mm) |
36W | 2160 | ＞80 | 2500-6500K RGB RGBW | 60 | 10°/18°/28°/45°/15*45° | ≤5 | HWW-135：L1000*W27.5*H60mm | 1000mm |
18W | 1080 | |||||||
60 | ||||||||
500mm | ||||||||
12W | 720 | 60 | ||||||
300mm | ||||||||
24W | 1680 | 70 | 1000mm | |||||
12W | 840 | 70 | 500mm | |||||
300mm | ||||||||
8W | 560 | 70 | ||||||
18W | 1440 | 80 | ||||||
1000mm | ||||||||
9W | 720 | 80 | 500mm | |||||
6W | 480 | 80 | 300mm | |||||
| Parameter | 300mm | 500mm | 1000mm |
|---|---|---|---|
| Length (L) | 300 | 500 | 1000 |
| Width (W) | 27.5 | 27.5 | 27.5 |
| Height (H) | 60 | 60 | 60 |
| H1 | 20 | 20 | 20 |
Note: Dimensions are measured manually during product inspection. Actual dimensions may vary within ±2mm tolerance.
