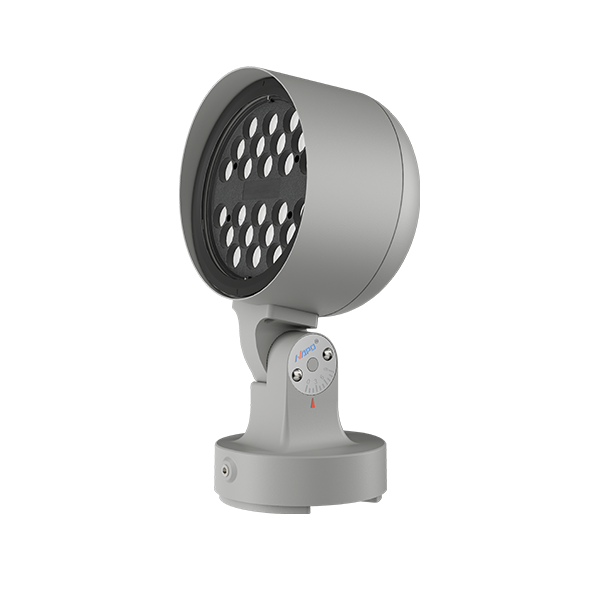

Advanced Architectural Flood Lighting with Intelligent Control & Precision Optics
The Lingfeng Flood Light Series is a professional outdoor lighting solution designed for architectural façades, public spaces, and landscape lighting applications. Combining refined industrial design, advanced thermal management, and intelligent lighting control systems, the Lingfeng series delivers both visual impact and long-term reliability.
With flexible installation options, precise optical distribution, and full-color dynamic lighting capabilities, Lingfeng empowers designers to create immersive lighting environments while ensuring stable performance in demanding outdoor conditions.
The smooth surface and the hidden convection air duct design can improve the thermal;management efficiency and reduce the thermal resistance effectively.;
The hidden drainage design allows for quick removal of water from the glass surface,;achieving a self-cleaning function.;
The lamp body is made of high strength die-cast aluminum and the surface is treated with; fluorocarbon spray.;
Visualize the angle rotation to achieve precise control of the beam angle.;
The support is rotable for surface mounting, clamp mounting, and ground spike mounting,; meeting the needs of various outdoor engineering applications;
Adopting imported LED light source, which has high luminous efficiency and uniform light ; output; high transmittance lens, low light loss, and uniform light output; glass cover is;wear-resistant and scratch-resistant.;
The constant current driver with built-in PWM brightness control, with 65,536 RGB ; brightness levels, resulting in softer dynamic dimming and more vibrant colors.
The surface is smooth and the air outlet is hidden.
Hidden ventilation structure, smooth surface, dust-proof
Simple design
more beautiful

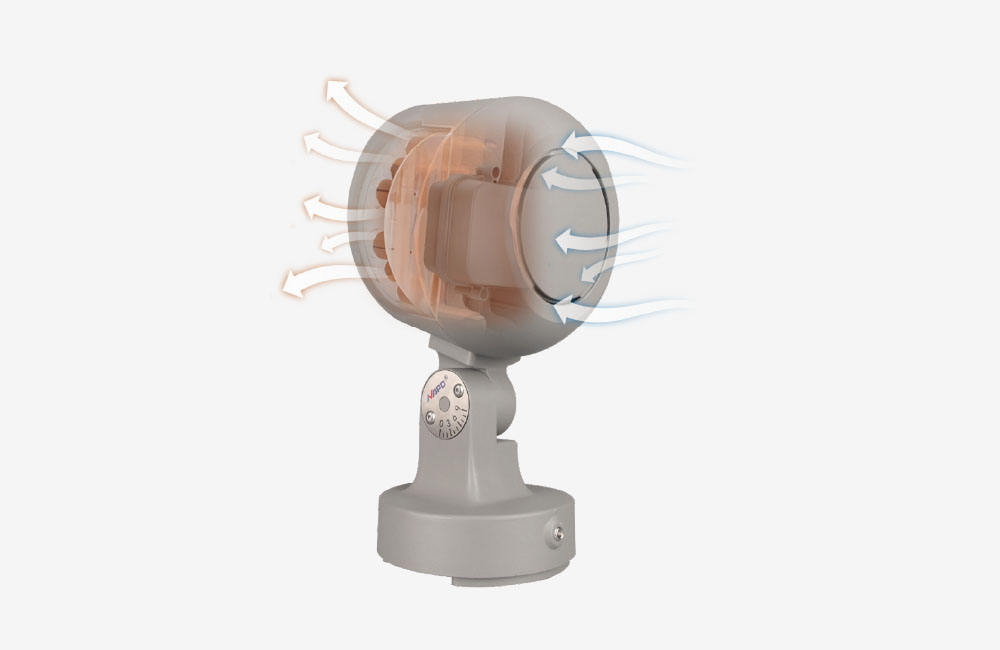

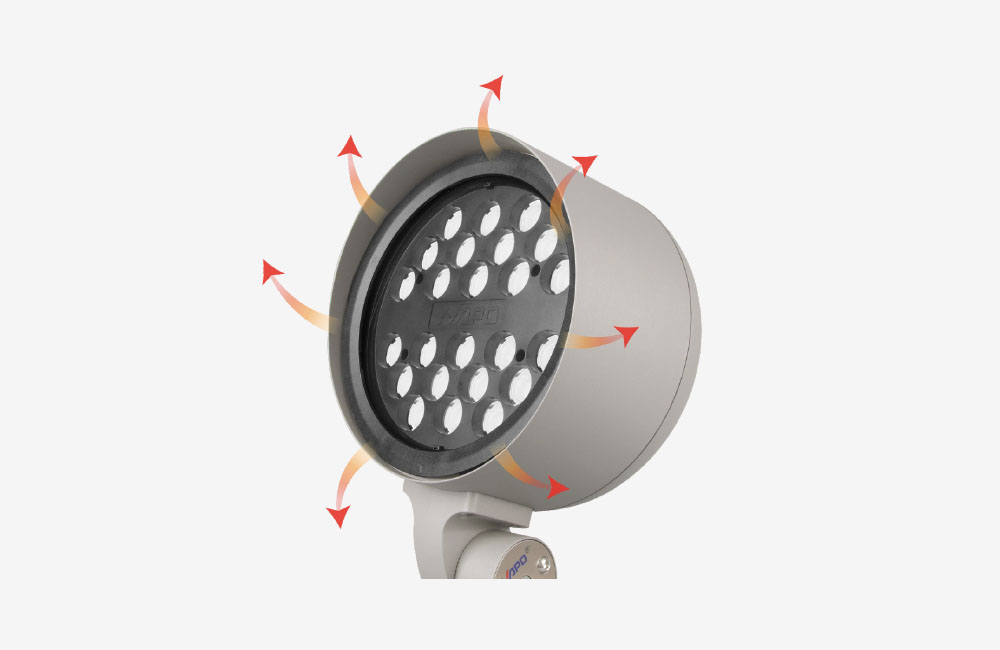

The design of double cavity convectionair duct can significantlyimprove the thermal management efficiency and effectively reduce the thermal resistance.
The housing is die-cast aluminum in one piece with ADC12 material and surface treated by fluorocarbon spraying.
Good pressure resistance
fast heat dissipation
no rust

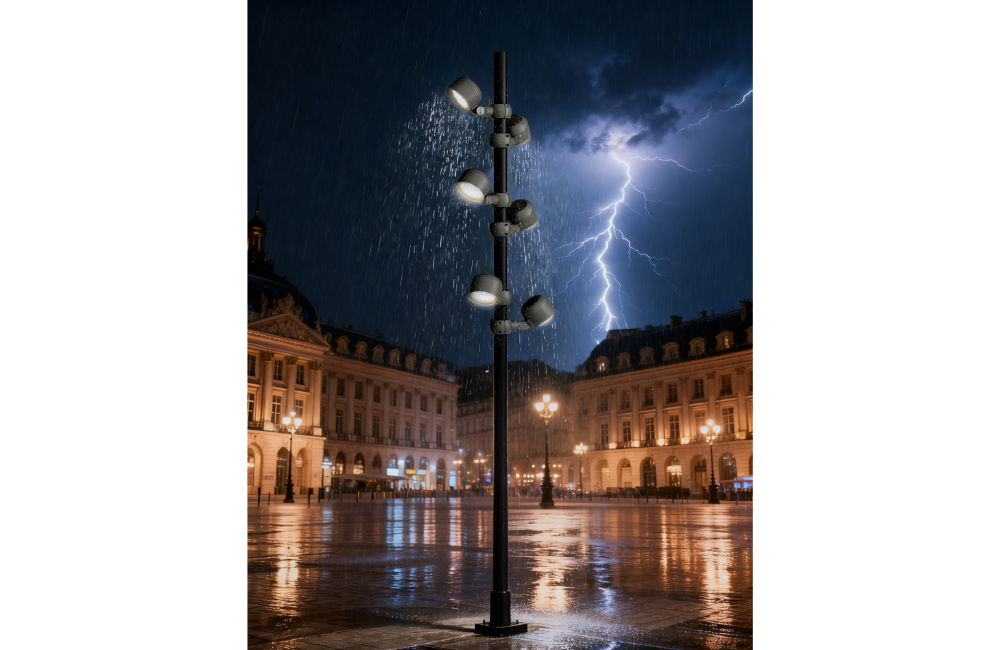

STRUCTURAL WATERPROOF-ING

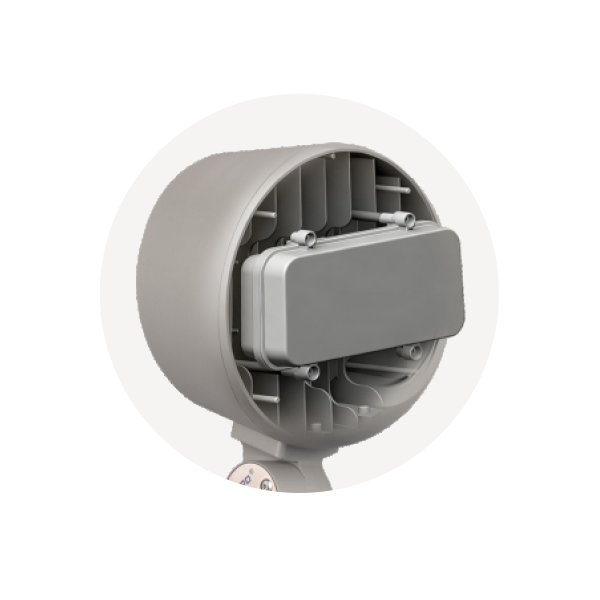

Design of independent driver box
IP66
COMPATIBLE WITH INTERNATIONAL STANDARD RDM/DMX512 PROTOCOLS, PROGRAM-DRIVEN INTELLIGENT CONTROL, SCIENTIFIC CENTRALIZED MANAGEMENT, AND MONITORING OF OPERATIONAL STATUS.
Real-time search and discovery of all and newly added lighting fixtures via the control system
Real-time monitoring of lighting fixture operating status, such as current, voltage, temperature, and running time
Setting alarms for abnormal lighting fixture operating parameters, enabling accurate fault location andreducing maintenance difficulty
Online modification of lighting fixture address codes via the control system
Delayed start-up of lighting fixtures to reduce impact on the power grid
Digital dimming and Gamma correction for true-to-life color reproduction
Thermal management technology to keep the surface temperature of lighting fixtures within a touchable range
Online upgrade of lighting fixture programs
Optical design and photoelectric configuration are reasonable, the output of high luminous efficiency with uniform light mixing provides many light angles and many light color configurations.

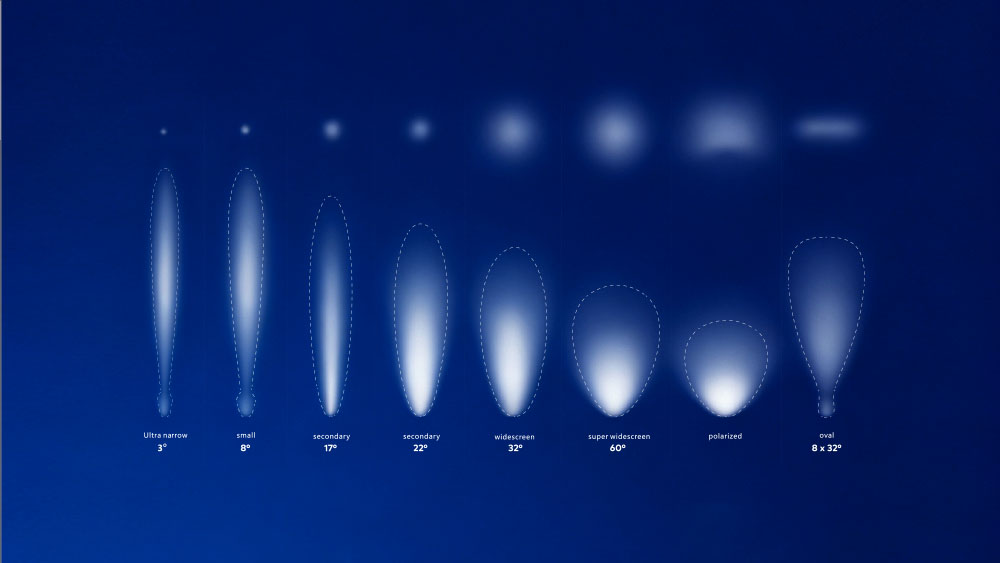

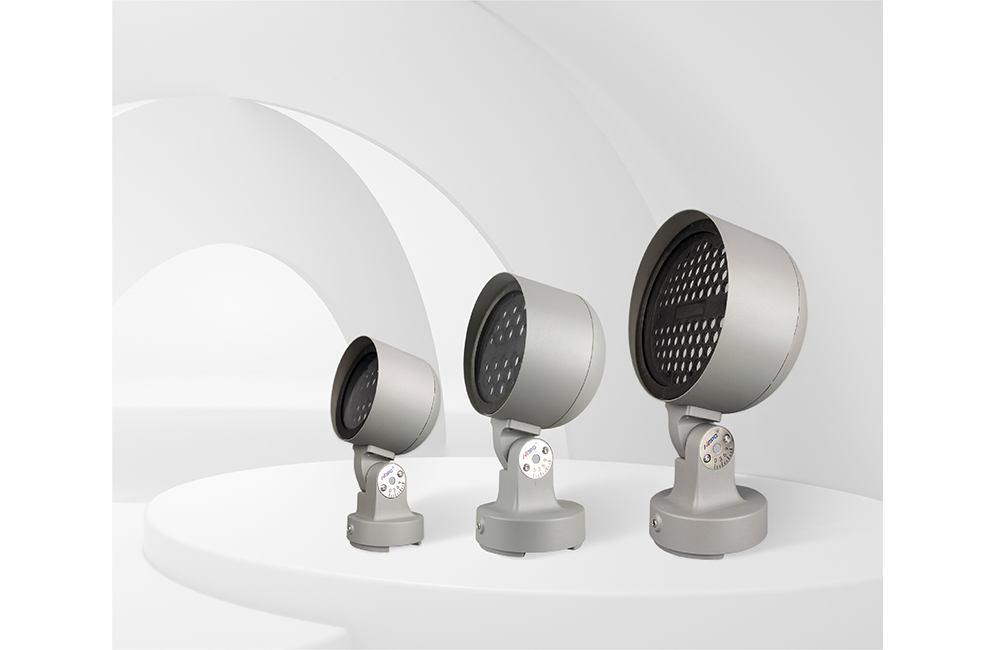

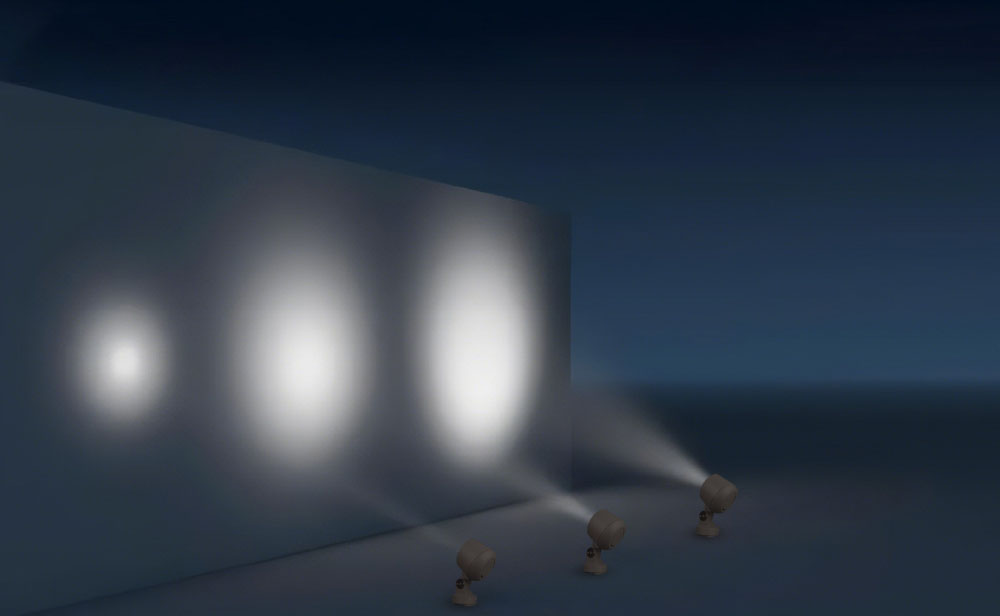

MULTIPLE ANGLES AVAILABLE

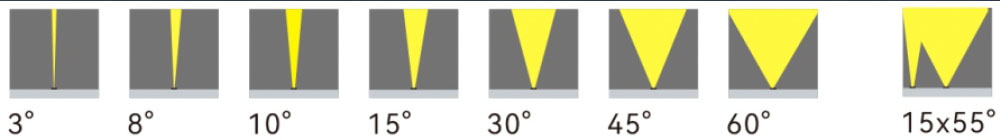

Say goodbye to the limitations of mixing different projects with various lighting fixtures. This series of floodlights delivers an integrated optical solution, offering a spectrum from 3. narrow spot to 60. wide beam, along with customizable elliptical light spots. It ensures exceptional color consistency and visual integrity when creating area lighting of any scale.

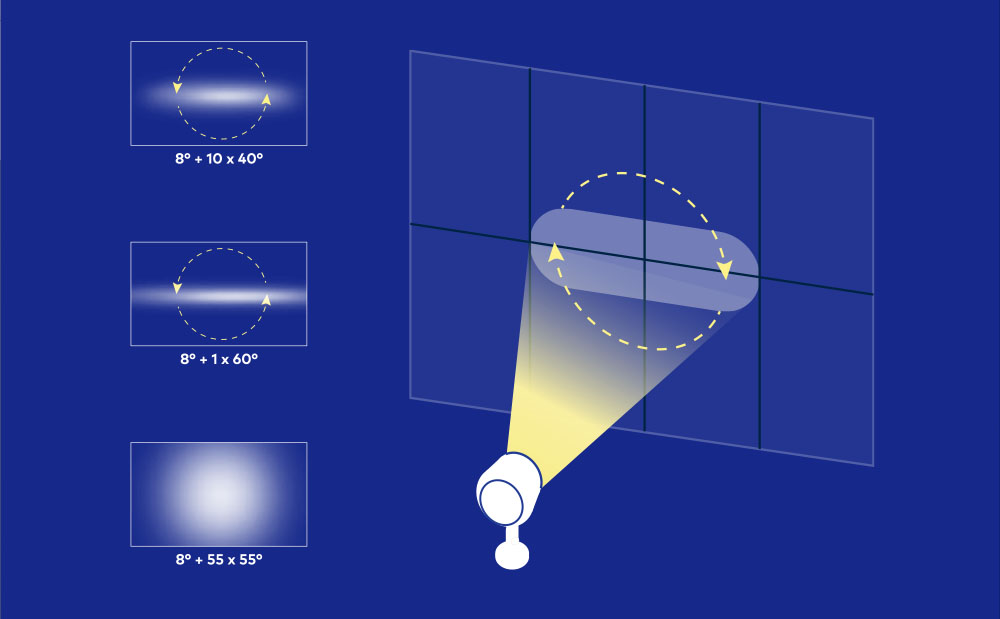

A variety of thin film diffusers and anti-glare accessories are available, easily creating a rich range of light and shadow effects from soft to strong contrasts. Its low light decay and anti-glare features give circular beams superior performance, allowing for complete creative customization.

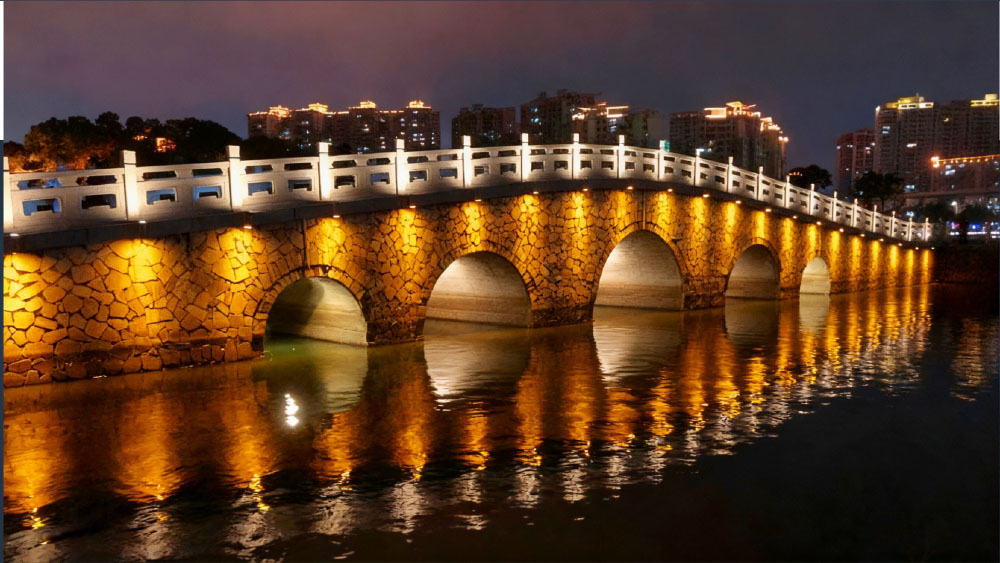

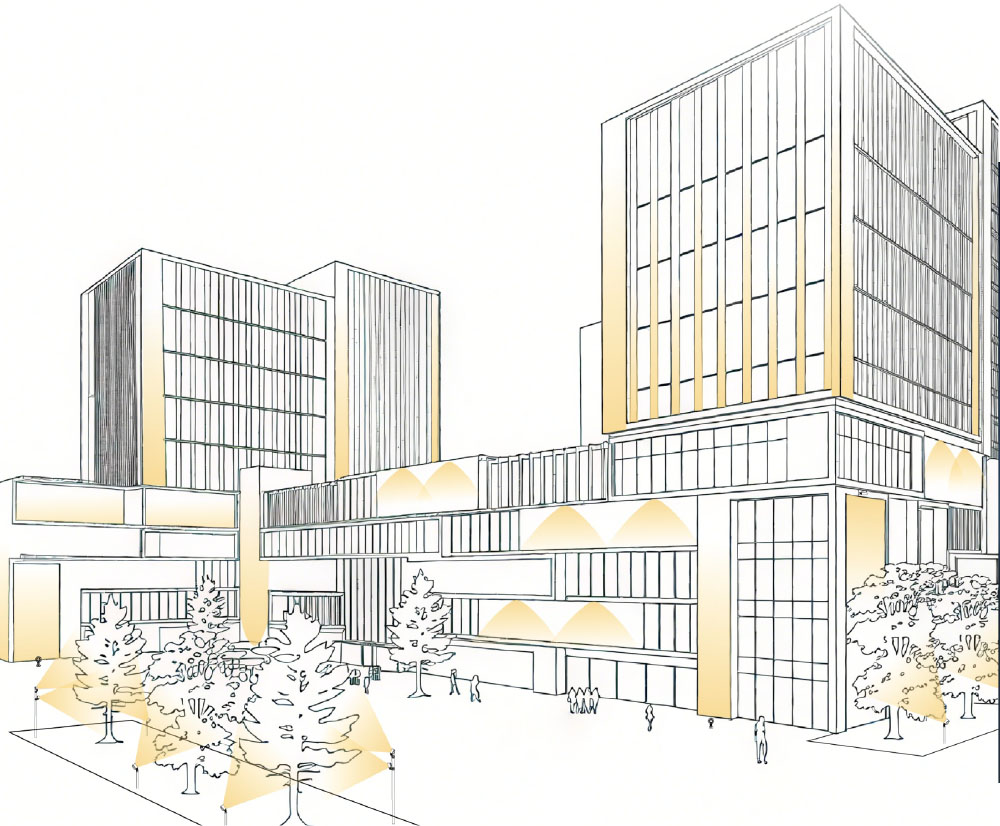

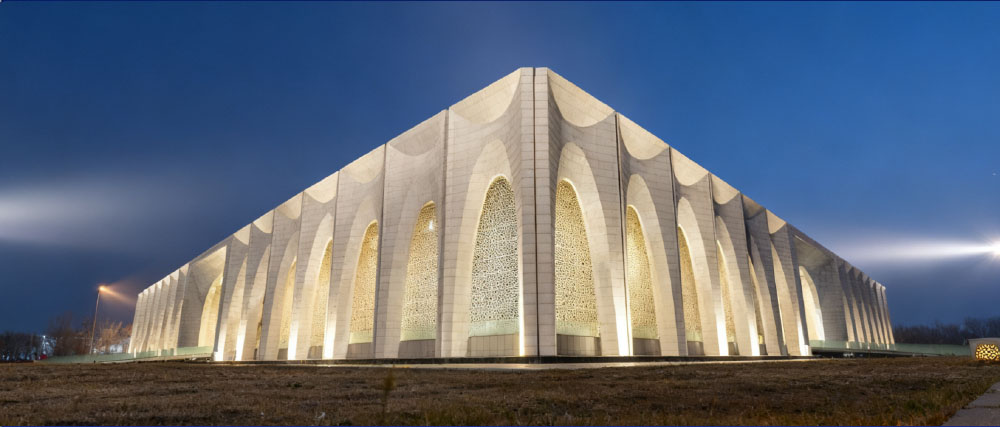

It is specially designed for modern architecture and landscape lighting, providing a variety of installation options to easily meet the needs of various scenarios and enable unlimited possibilities for light and shadow design.
Suface mounting: Supports wall mounting and ground fixing, with a stable structure, suitable for various scenarios such as building facades, courtyards, and corridors.
Ground spike mounting: Can be directly inserted into the soil, no need pre-buried wiring, improving the efficiency of lighting installation in gardens, walkways, and green belts.

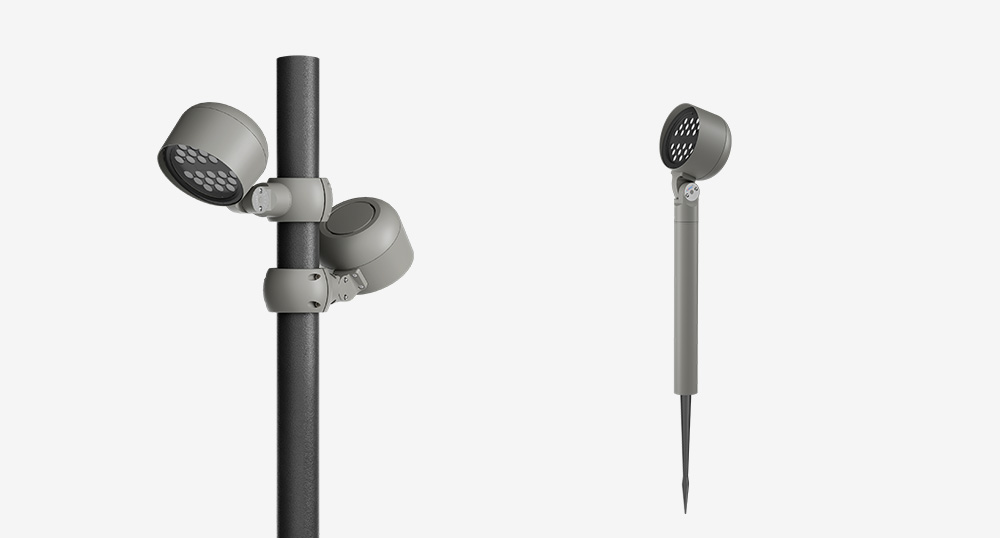

Clamping mounting: Specifically designed for columns and tree trunks, providing flexible fixation without damaging the substrate, perfectly blending into the natural and architectural environment.
RGBW FULL-COLOR, CUSTOMIZABLE RDM
High precision RGBW independent dimming, smooth color transition.
Make the dimming more smooth and the colors more vivid

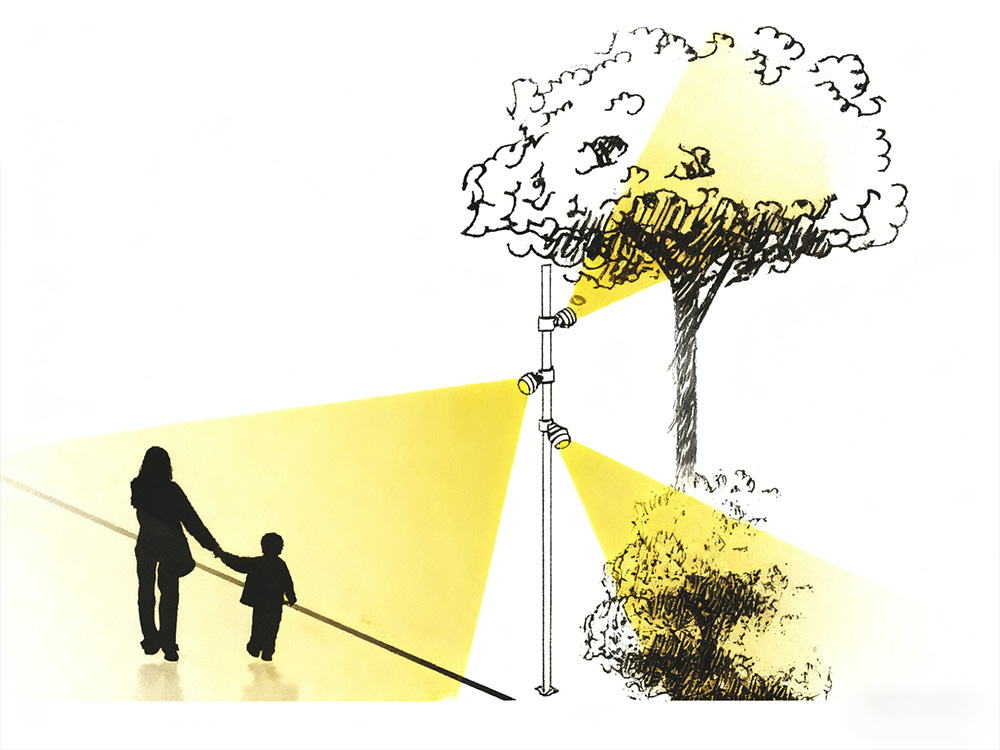

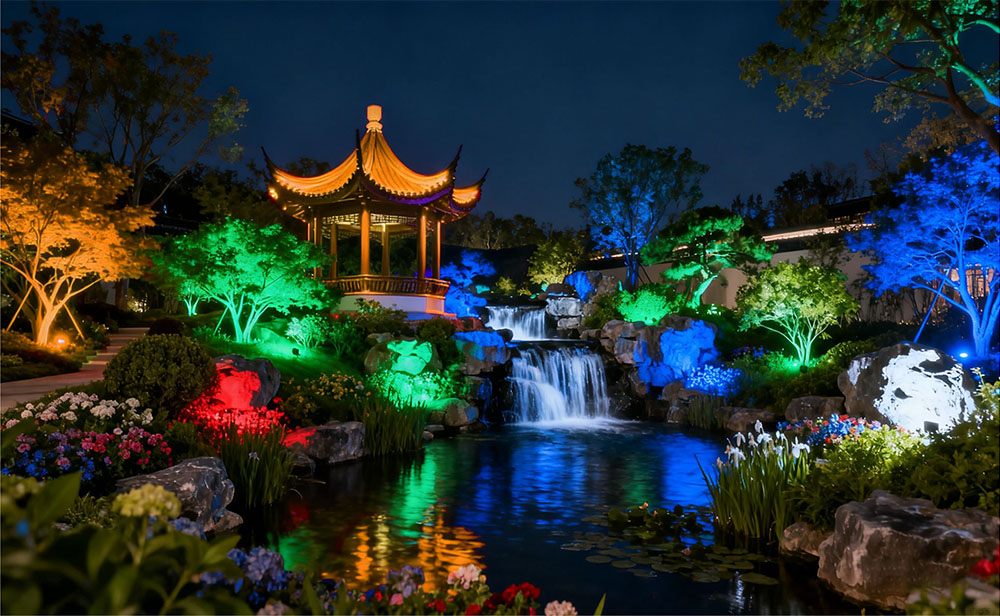

The clamping mounting floodlight, with its convenient pole-mounting installation, is widely applicable to outdoor settings such as parks and residential areas. It illuminates safe walkways for pedestrians while also focusing light on vegetation, allowing trees and shrubs to display unique charm in the interplay of light and shadow. This achieves a perfect blend of functionality and aesthetics, creating a safe and artistic nighttime environment for outdoor spaces, making it an ideal choice for enhancing the quality of outdoor lighting and the sophistication of the landscape.
Easy installation: The clamp design allows for quick installation on various lamp posts/trees without complex construction.
Multiple functions: it has both lighting and landscape functions, which can not only ensure the safety of pedestrians, but also beautify the outdoor environment.
Wide application: Suitable for parks, communities, walkways and other outdoor scenarios, and can be adapted to different lighting and landscape needs Light and shadow art:accurate light projection can highlight the vegetation layers and contours, adding artistic atmosphere to the outdoor space.

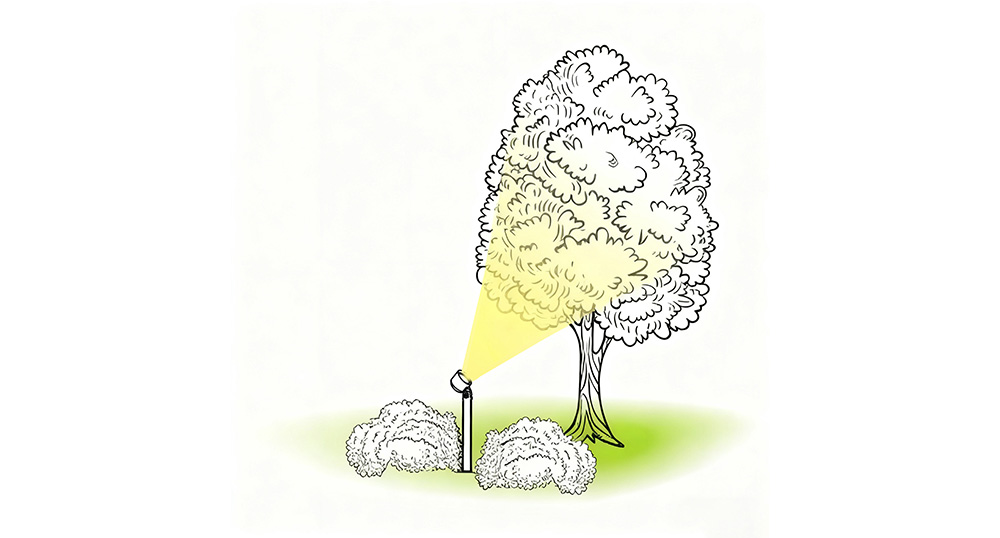

FLOOD STANDING
The lights are installed on the lawn.
It is suitable for park, wetland, lawn environment tree lighting.
Low position, good concealment
High strength base, less prone to damage
Built-in wiring compartment, no external junction box required

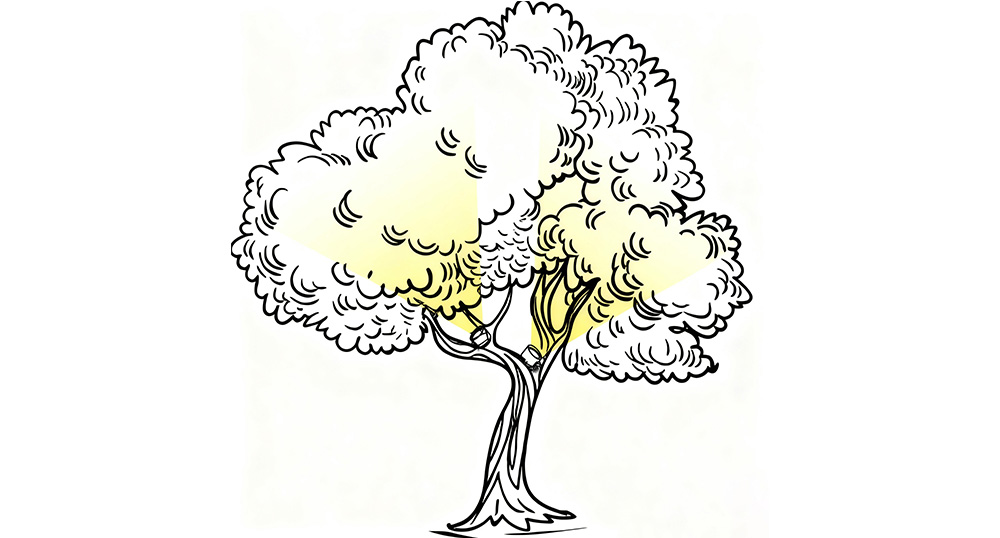

TREE CLAMP INSTALLATION
The bottom of the lamp is equipped with a flexible stainless steel spring, which can be extended to embrace the tree trunk without hindering or damaging the tree growth.
The telescopic technology is simple and easy to install, and it is compatible with the environment.
Upgrade basic features, add 360-degree bidirectional rotation
THE LAWN AND THE TREES ARE INTEGRATED AS ONE.
The lighting fixture combines lawn lighting and tree illumination into one unit. It is suitable for illuminating lawns, walkways, and central shrubs.
It achieves integrated illumination of lawns, roads, and trees.
The height can be adjusted up or down according to the shrub height
enhance the function of the tube body and avoid damage
| Model | Power(W) | LED quantity | Luminous flux(lm) | Control type | Working voltage | Beam angle | Color temperature |
| HWW-L332A | 36 (MAX) | 6 | 2160 | Switch/DMX215 | DC24V/DC48V/AC220V | 3° | 2700K/3000K/4000K |
| HWW-L332A | 48 (MAX) | 6 | 3360 | DMX215 | DC24V/DC48V/AC220V | 8° | RGBW |
| HWW-L333A | 72 (MAX) | 12 | 4320 | Switch/DMX215 | AC220V | 3° | 2700K/3000K/4000K |
| HWW-L333A | 96 (MAX) | 12 | 6720 | DMX215 | AC220V | 8° | RGBW |
| HWW-L334A | 120 (MAX) | 18 | 7200 | Switch/DMX215 | AC220V | 3° | 2700K/3000K/4000K |
| HWW-L334A | 150 (MAX) | 18 | 10500 | DMX215 | AC220V | 8° | RGBW |
| HWW-L332B | 36 (MAX) | 12 | 2520 | Switch/DMX215 | DC24V/DC48V/AC220V | 8°/15° | 2700K/3000K/4000K |
| HWW-L332B | 48 (MAX) | 12 | 3360 | DMX215 | DC24V/DC48V/AC220V | 15°/30°/45°/60°/15*55° | RGBW |
| HWW-L333B | 72 (MAX) | 24 | 5040 | Switch/DMX215 | AC220V | 8°/15° | 2700K/3000K/4000K |
| HWW-L333B | 96 (MAX) | 24 | 6720 | DMX215 | AC220V | 15°/30°/45°/60°/15*55° | RGBW |
| HWW-L334B | 120 (MAX) | 42 | 8400 | Switch/DMX215 | AC220V | 8°/15° | 2700K/3000K/4000K |
| HWW-L334B | 150 (MAX) | 42 | 10500 | DMX215 | AC220V | 15°/30°/45°/60°/15*55° | RGBW |
| HWW-L332C | 36 (MAX) | 24 | 2520 | Switch/DMX215 | DC24V/DC48V/AC220V | 20°/30°/45°/60°/15*55° | 2700K/3000K/4000K |
| HWW-L333C | 72 (MAX) | 48 | 5040 | Switch/DMX215 | AC220V | 20°/30°/45°/60°/15*55° | 2700K/3000K/4000K |
| HWW-L334C | 120 (MAX) | 78 | 8400 | Switch/DMX215 | AC220V | 20°/30°/45°/60°/15*55° | 2700K/3000K/4000K/RGBW |
