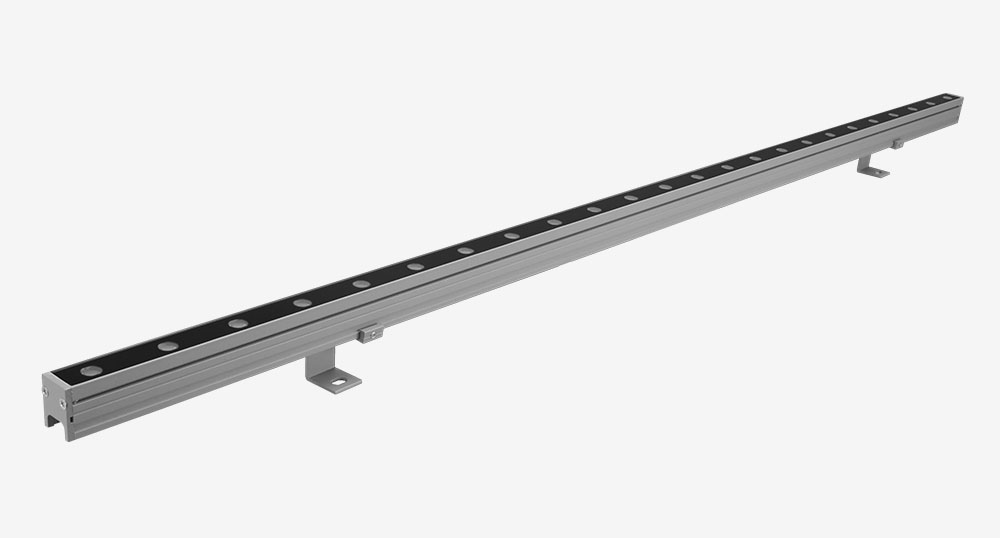

HWW-135A Linear LED Wall Washer Light is a professional architectural lighting fixture designed for facade illumination, landscape projects and commercial buildings.
Featuring a slim linear aluminum profile design, multiple beam angle options and IP66 waterproof protection, the HWW-135A provides uniform and precise wall washing effects for modern outdoor environments.
Designed for professional outdoor architectural lighting projects, the HWW-135A LED wall washer light combines an integrated aluminum profile structure, precise optical control and IP66 waterproof protection to deliver reliable and high-performance facade illumination solutions.
The aluminum profile housing combined with tempered glass cover creates a compact and streamlined structure, perfectly matching different architectural facades.
Professional coating technology provides excellent corrosion resistance and durability for coastal and harsh outdoor environments.
Available in different power versions with stable DC24V/DC48V low voltage operation for safe and energy-efficient lighting applications.
Various CCT and beam angle options provide flexible lighting effects for different facade heights and installation distances.
The integrated sealed structure provides IP66 protection against dust and water, ensuring reliable outdoor operation.
Supports base mounting, L-type adjustable brackets and butterfly clips for walls, columns and various architectural structures.

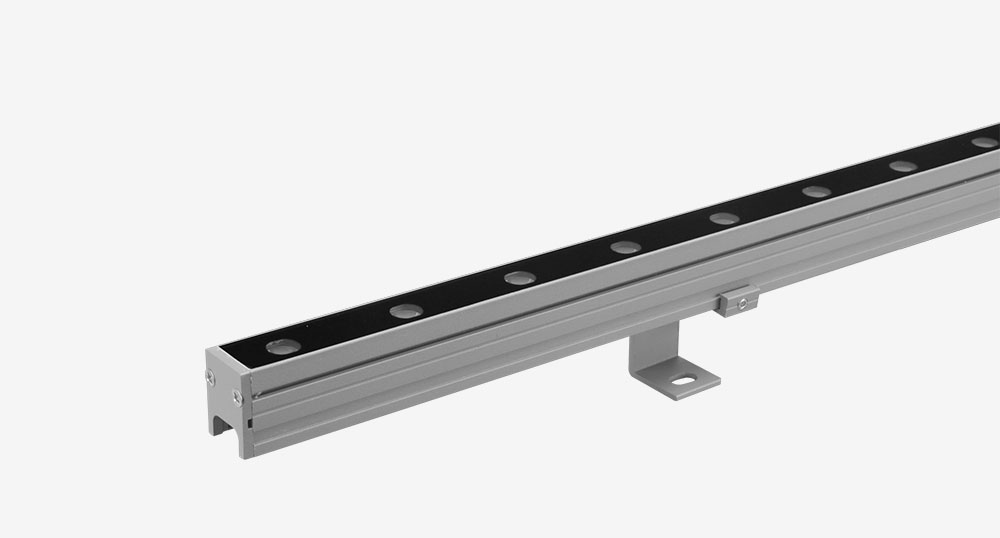

The HWW-135A LED wall washer light features an integrated aluminum profile structure, tempered glass cover and professional waterproof design. Every structural component is optimized for durability, heat dissipation and precise architectural illumination, making it suitable for outdoor facade lighting and landscape lighting projects.
The lamp body is constructed with high-quality aluminum profile material, providing a strong and durable structure with excellent thermal management performance for long-term outdoor operation.
Equipped with a tempered glass cover, the fixture delivers high light transmission, excellent impact resistance and reliable protection for the internal optical components.
The professional powder coating process provides superior resistance against salt spray, weathering and aging, ensuring stable performance in harsh outdoor environments.
The integrated sealed structure achieves IP66 protection, effectively preventing dust and water ingress while ensuring reliable operation in outdoor architectural lighting applications.
Equipped with L-type adjustable brackets and butterfly spring clip mounting options, the fixture allows flexible angle adjustment and secure installation on walls, columns and various architectural structures.
Available with multiple beam angles including 10°, 18°, 28°, 45° and 15×45°, providing precise light distribution and flexible solutions for different facade heights and illumination distances.
OPTICAL SPECIFICATION HWW-135A | ||||||||
POWER (W) | LUMEN (lm) | CRI | CCT | EFFICACY (lm/W) | BEAM ANGLE | SDCM | DIMENSION(mm) | DIMENSION(mm) |
36W | 2160 | ＞80 | 2500-6500K RGB RGBW | 60 | 10°/18°/28°/45°/15*45° | ≤5 | HWW-135A：L1000*W20*H54.1mm | 1000mm |
18W | 1080 | |||||||
60 | ||||||||
500mm | ||||||||
12W | 720 | 60 | ||||||
300mm | ||||||||
24W | 1680 | 70 | 1000mm | |||||
12W | 840 | 70 | 500mm | |||||
300mm | ||||||||
8W | 560 | 70 | ||||||
18W | 1440 | 80 | ||||||
1000mm | ||||||||
9W | 720 | 80 | 500mm | |||||
6W | 480 | 80 | 300mm | |||||
| Parameter | 300mm | 500mm | 1000mm |
|---|---|---|---|
| Length (L) | 300 | 500 | 1000 |
| Width (W) | 20 | 20 | 20 |
| Height (H) | 27.1 | 27.1 | 27.1 |
| H1 | 54.1 | 54.1 | 54.1 |
Note: Dimensions are measured manually during product inspection. Actual dimensions may vary within ±2mm tolerance.
