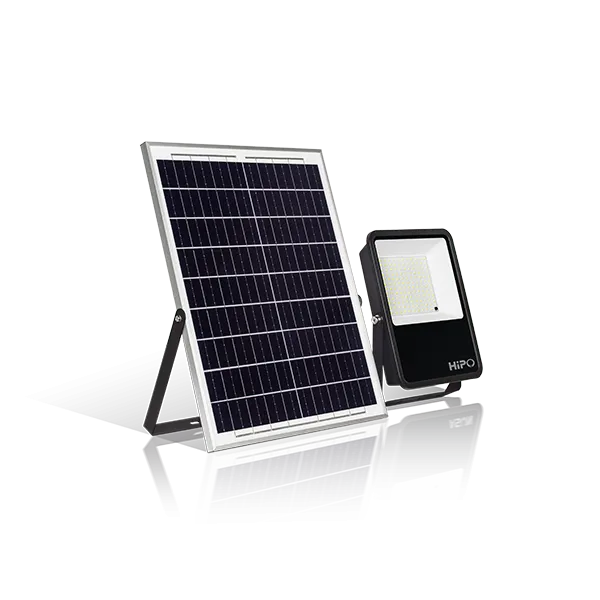

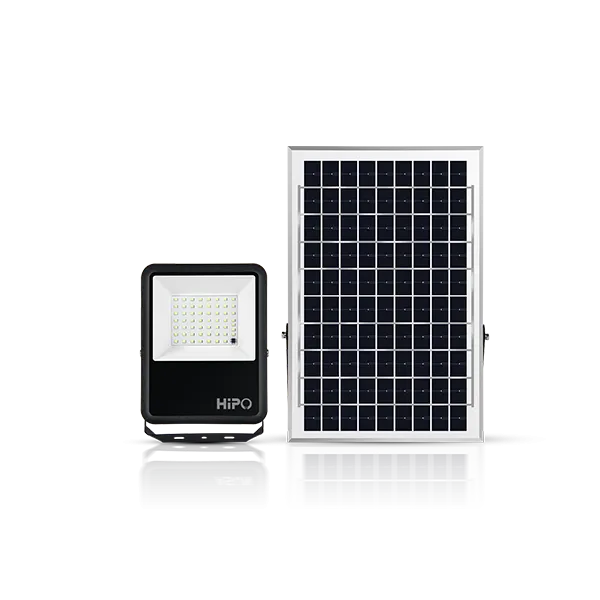

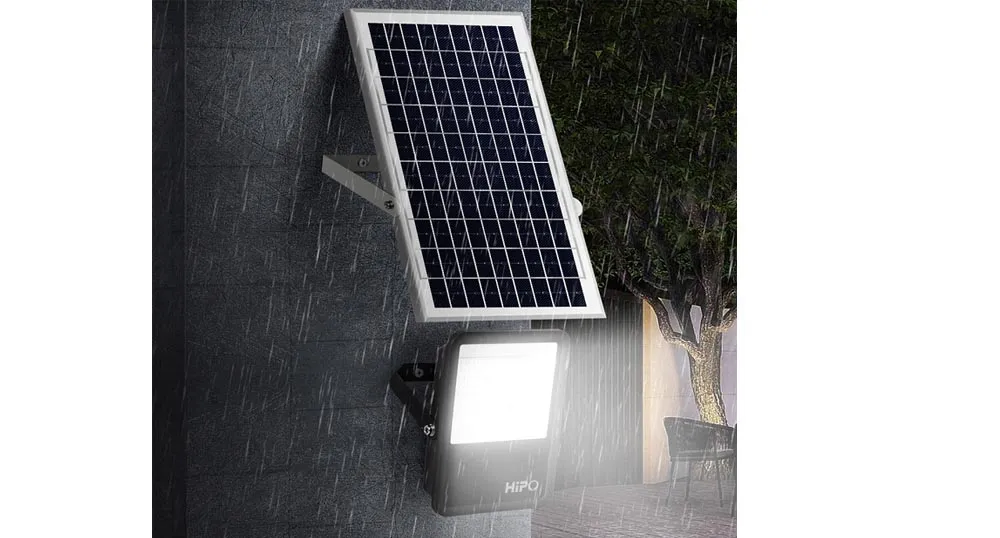

The S01 Solar Flood Light Series is a high-efficiency off-grid lighting solution designed for outdoor areas where reliable illumination and flexible installation are required. Integrating a high-efficiency monocrystalline silicon solar panel, LiFePO4 battery, MPPT charging management and intelligent MCU control, the S01 converts solar energy into dependable nighttime lighting without grid wiring.
Featuring high-efficiency SMD LEDs with luminous efficacy up to 150 lm/W, a durable ADC12 die-cast aluminum housing and high-transmittance tempered glass, the S01 delivers efficient illumination and reliable outdoor performance. Its IP66 and IK06 protection, integrated heat dissipation structure and 270° adjustable lighting angle make it suitable for a wide range of outdoor applications.

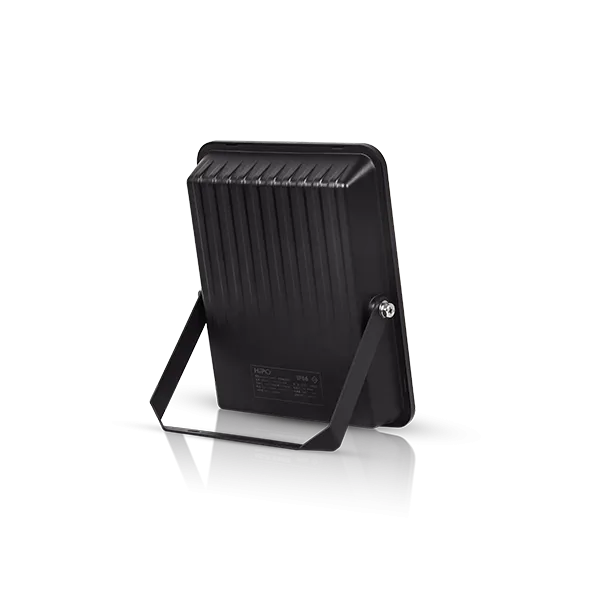

Integrated heat dissipation structure design
The housing is made of integral die-cast with ADC12 aluminum, with large-area heat dissipation fins.
Effectively improve heat dissipation effect
High-voltage protection
Fast heat dissipation
Waterproof and dustproof
No rust
High transmittance tempered glass
Explosion-proof and heavy-pressure resistant, no fear of various outdoor environments, and the glass is tempered .
Avoid accidental breakage and accidental injury to people
High temperature resistance
Strong light transmission
Surface glass fixed by frame
to prevent coming off
When the glass is fixed, a PC frame is added to effectively prevent the glass from coming off
High temperature tolerance and Safer

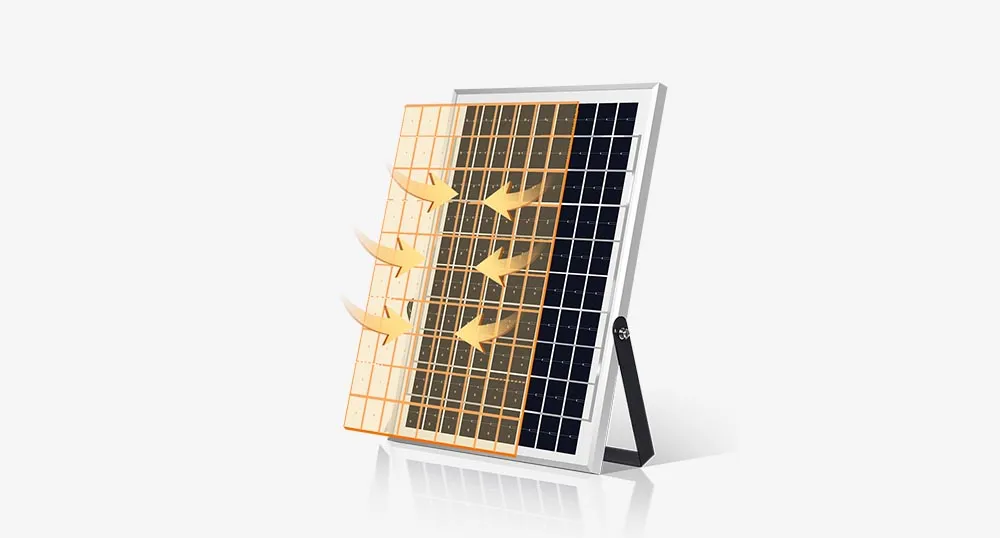

Monocrystalline silicon solar panel
Automatic charging during the day, automatic light on when dark, flash charging on sunny days, full charge in 5-6 hours, using aerospace-grade materials, faster light absorption, stronger and more durable power supply.
23%
ultra-high conversion efficiency of Monocrystalline silicon
19%
conversion efficiency of Polysilicon
Faster light absorption
High conversion rate
More powerful
Brand new automotive power grade
LiFePO4 battery
Apply 32700 automotive power grade LiFePO4 battery
To ensure more durable, Longer battery life
No recycle batteries
energy-saving
Long lifespan
High brightness
IP66 professional structure waterproof
Integrally formed without gaps, no need to worry about rainy weather
waterproof
Lightning protection
Pure copper core
waterproof connectors
Radial docking to strengthen waterproof function direct plug-in in only one step.
Aging prevention
Durable

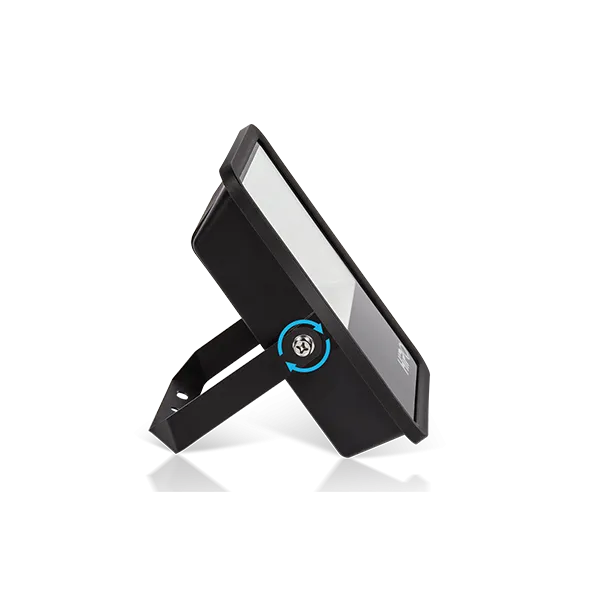

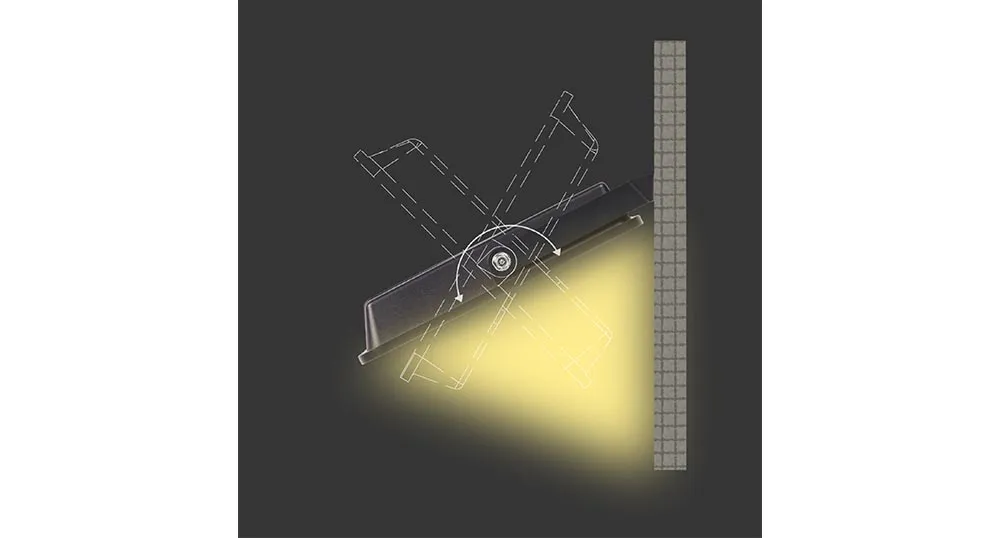

270 ° tilt
Wider application scenarios
Flexible
Convenient
useful

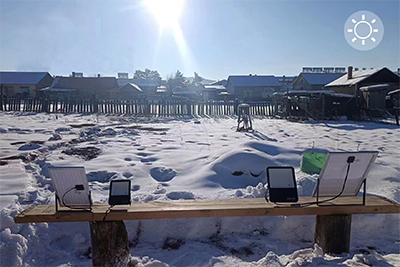

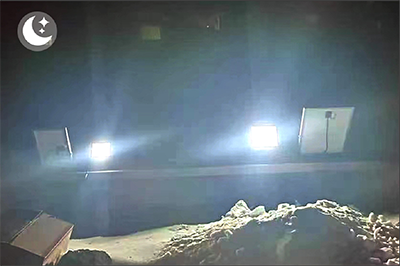

Still working properly extreme cold temperatures
Coordinates: Mohe, Temperature : -24℃
Still in perfect condition in demanding outdoor environment
No need to worry about rainy or snowy days, due to SPD protection and IP66 Protection.
Villa courtyard
road and street
New Countryside
playground
Details represent quality
Unique patented mounting component design, ensures installation more convenient and faster

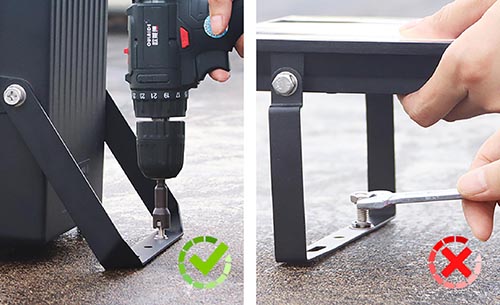

bevel Bracket
installing with power tools and save time
The bracket can be tightened with power tools, while ordinary brackets can only be tightened with a wrench.

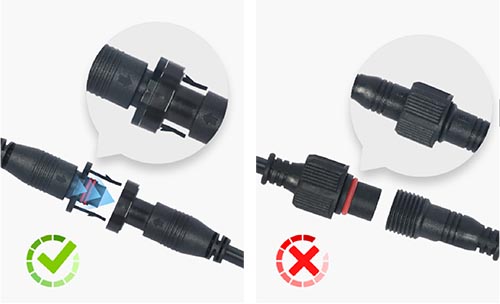

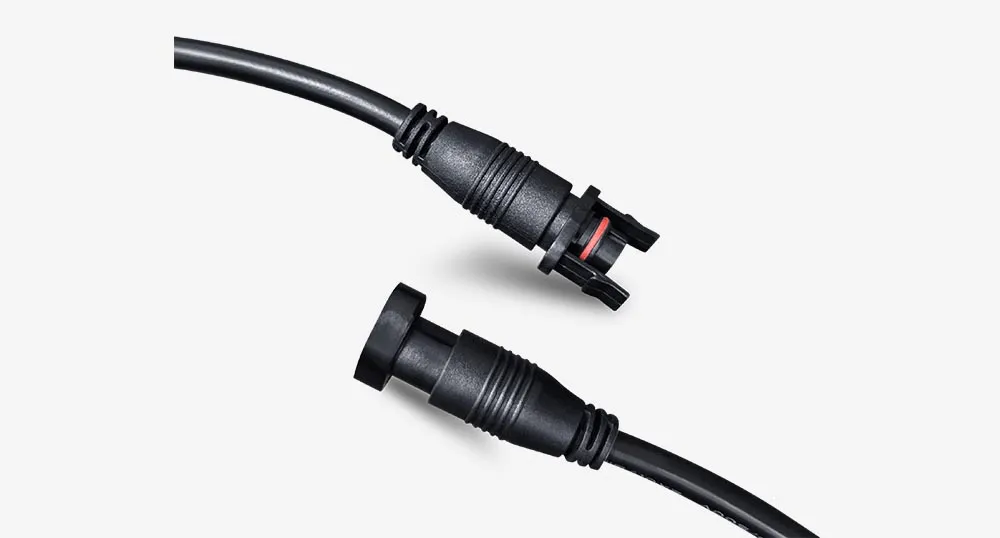

Radial docking
Direct plug-in waterproofing in one step and
Waterproof pin and box connectors adopt radial butt joints, which are waterproof, durable and safer
| Model | S01-B003 | S01-B005 | S01-B009 | S01-B012 | S01-B015 |
Power | 3W | 5W | 9W | 12W | 15W |
Size（L*W*H） (without bracket) | 350x235x17mm | 350x235x17mm | 350x350x17mm | 350x450x17mm | 350x450x17mm |
Panel Size（L*W*H） | 70LEDs | 140LEDs | 210LEDs | 280LEDs | 280LEDs |
| Panel Specifications | Monocrystalline silicon 6V 10W | Monocrystalline silicon 6V 18W | Monocrystalline silicon 6V 25W | ||
| Lithium Battery Specifications | 3.2V, 6AH | 3.2V, 12AH | 3.2V, 18AH | 3.2V, 24AH | 3.2V, 30AH |
Whole Light Effect | 150Lm/W | ||||
| Color Temperature | 6500K | ||||
Color Rendering | Ra≥80 | ||||
Protection Level | IP66 | ||||
Working Temperature | -20~45℃ | ||||
