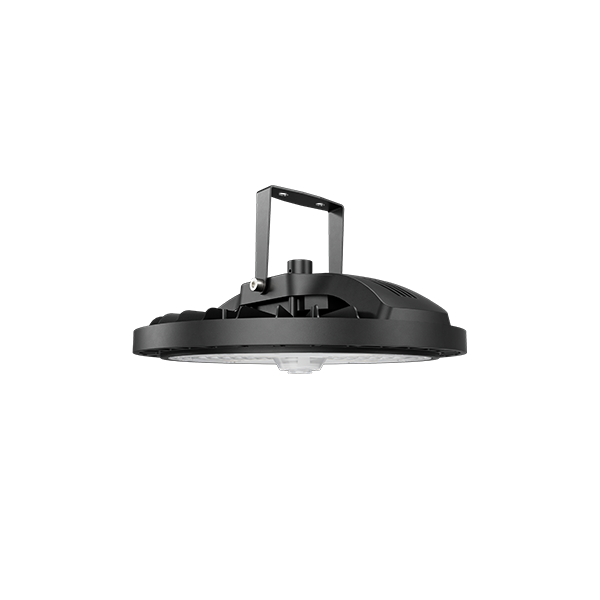

The U03 High Bay Light is designed for modern industrial and commercial facilities that require stable performance, efficient heat dissipation, and flexible installation.

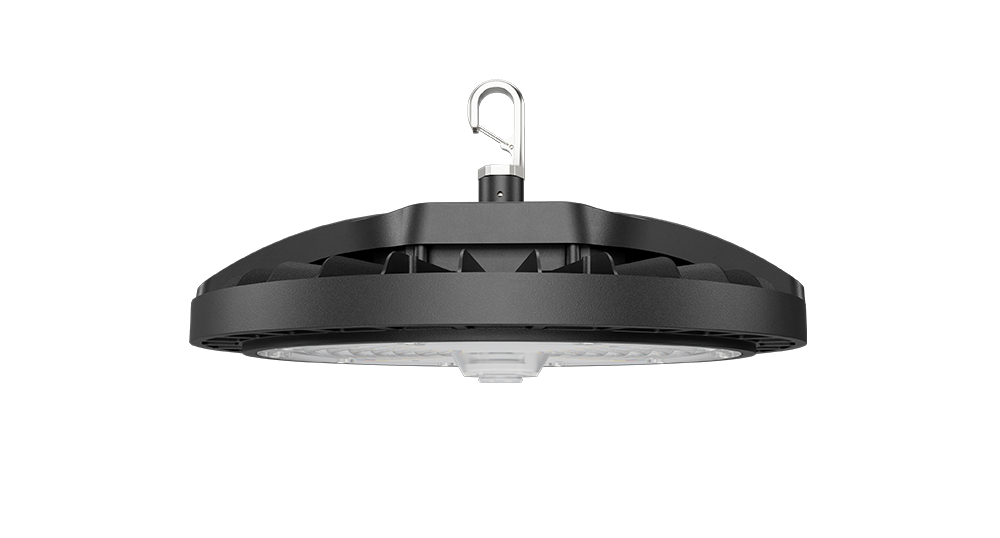

Featuring a distinctive curved driver housing, a full aluminum finned body, and an integrated hook mounting design, U03 delivers reliable high-output illumination with improved thermal management and clean installation aesthetics. It is ideal for factories, logistics centers, warehouses, exhibition halls, and sports venues with high ceilings.

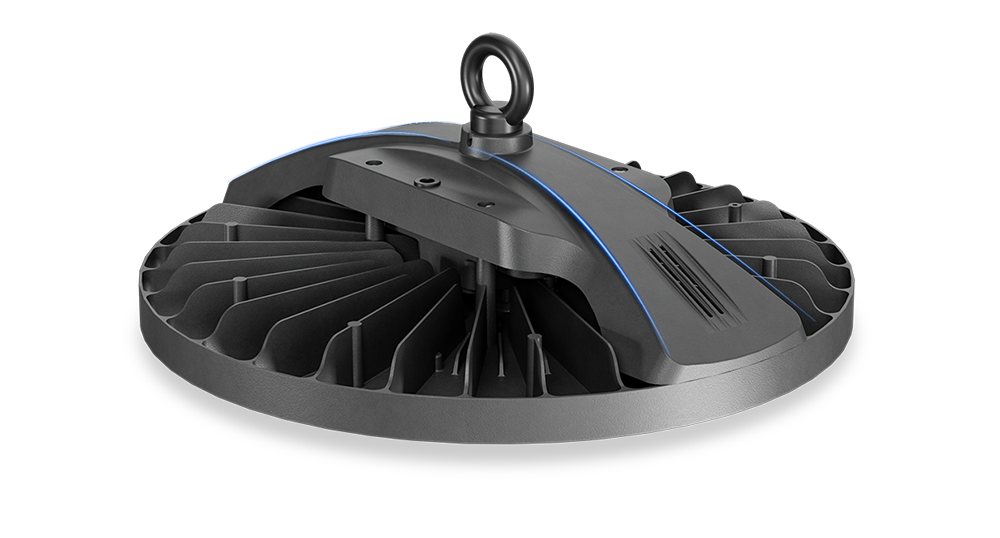

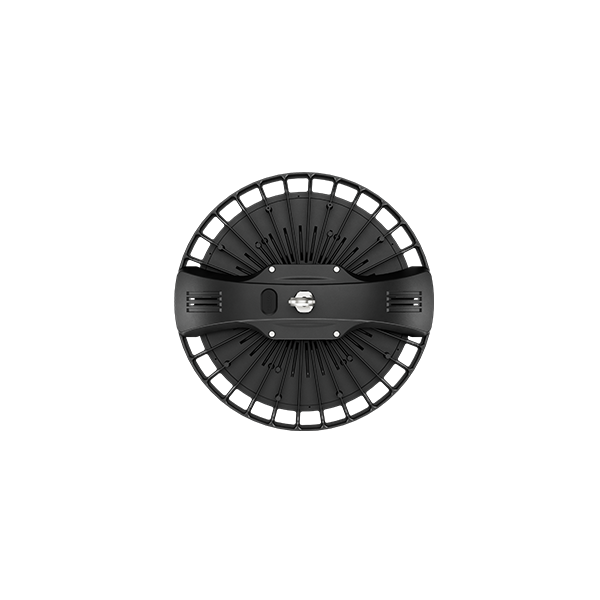

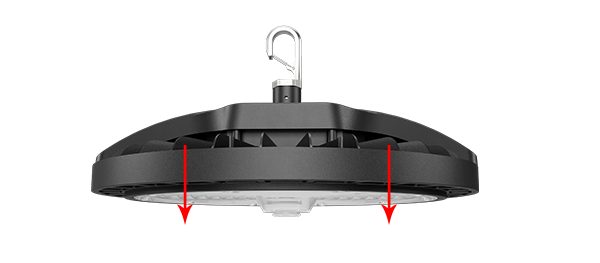

Unique curved driver box design with compact shape highlights the beauty of curves.

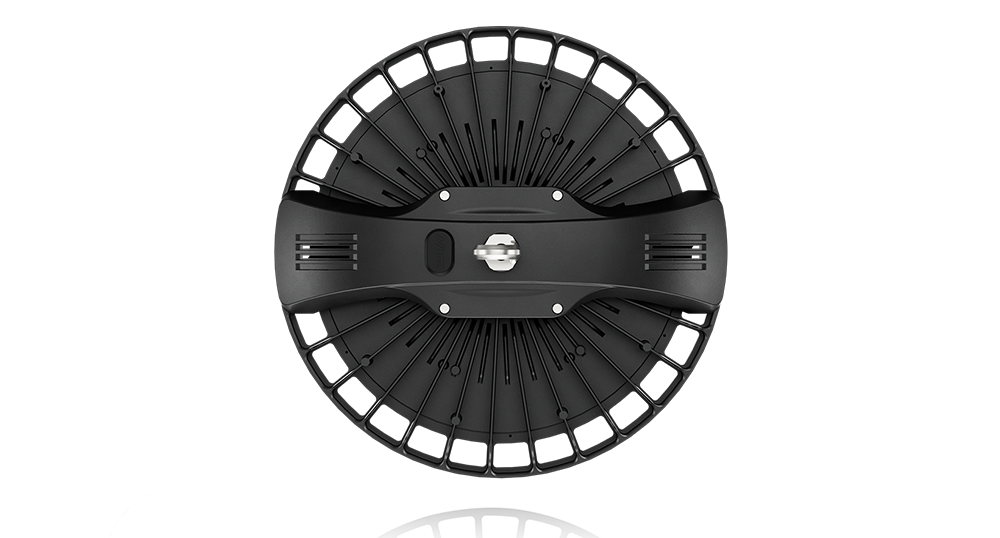

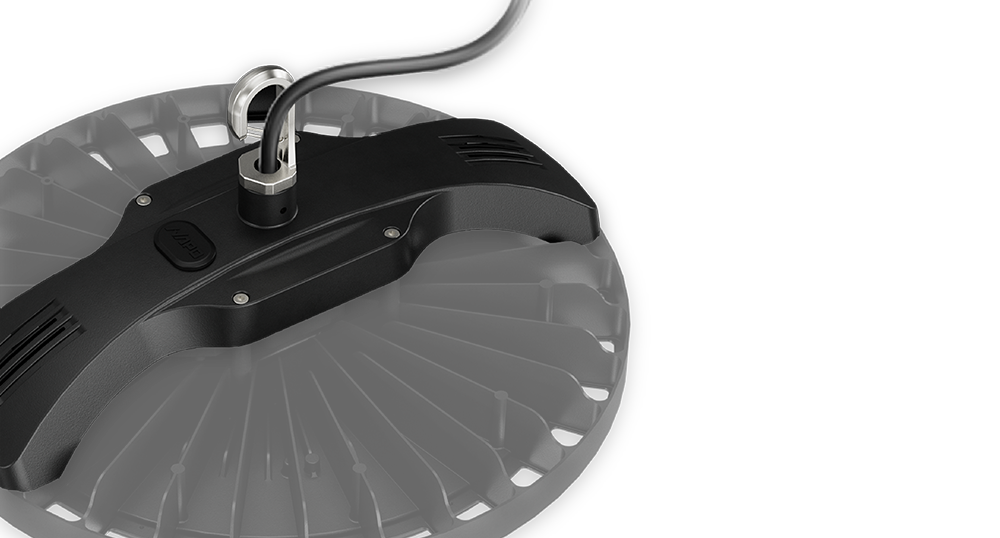

Curved-shaped power box structure across the whole housing, giving the power supply and light source enough space for heat dissipation.

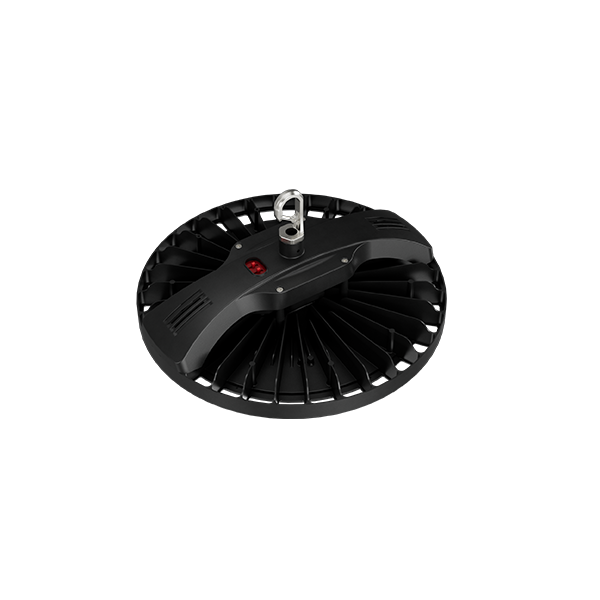

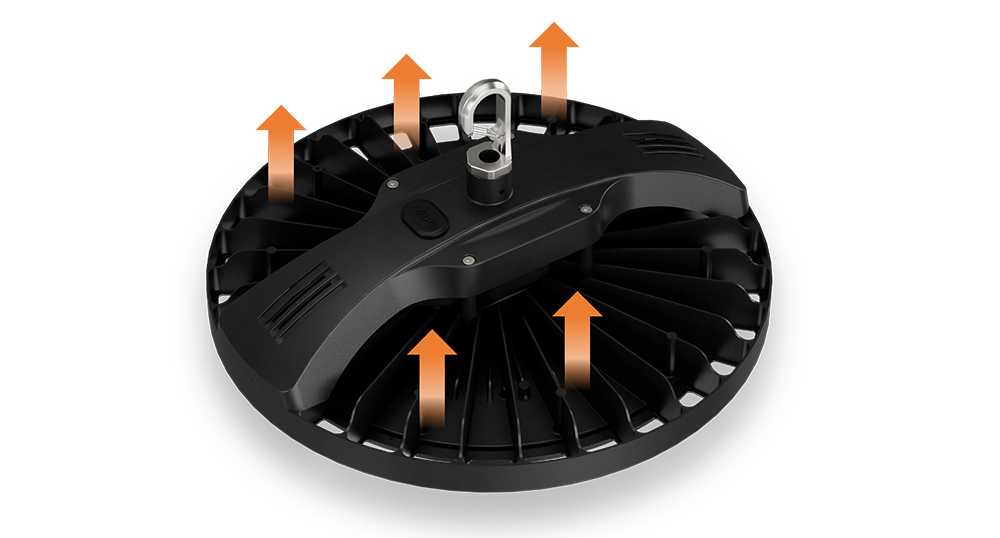

Good efficient heat dissipation thanks to all-aluminum fin design
Aluminum fins has good dissipation performace,

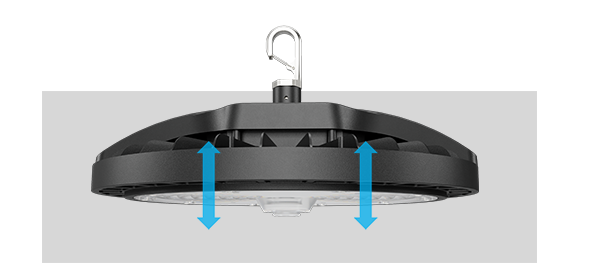

Furthermore, heat can ventilte through space between aluminum fins.
Overhead driver design, enable heat of LEDs and driver ventilate seperately
· Lightweight housing, 3D heat dissipation

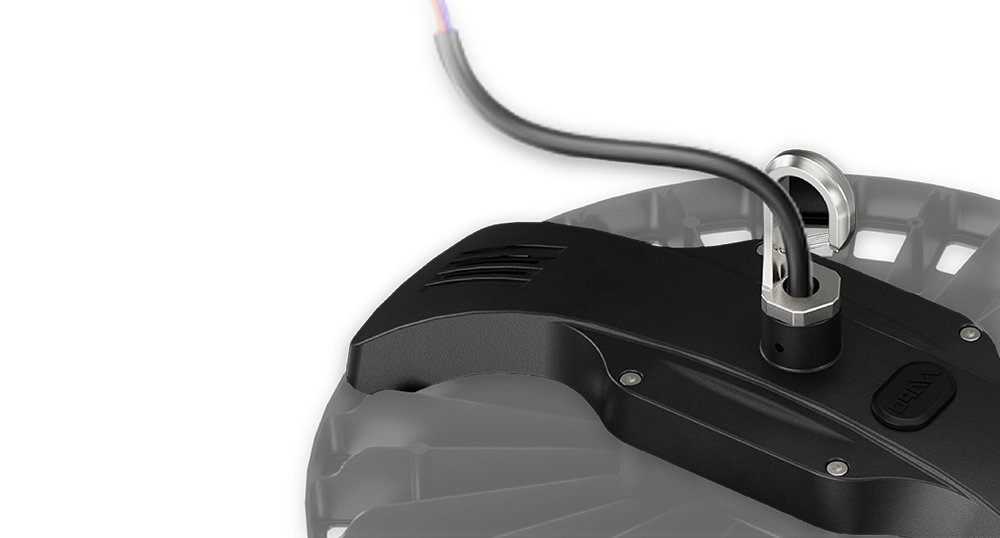

Cable come out from the reserved hole of the hook
Making wiring more orderly and tidier.
One-piece die-cast aluminum filled with glue, wide voltage constant current power supply, with over-temperature, over-voltage,short circuit protection, SPD protection, etc.
High efficiency
Surge resistance
Power protection
Made of industrial pure aluminum with high corrosion resistance and thermal conductivity, one-piece die-casting process.
It has excellent anti-corrosion and anti-rust properties and is suitable for harsh working environments.
Industrial pure aluminum with high thermal conductivity
Corrosion and rust resistance

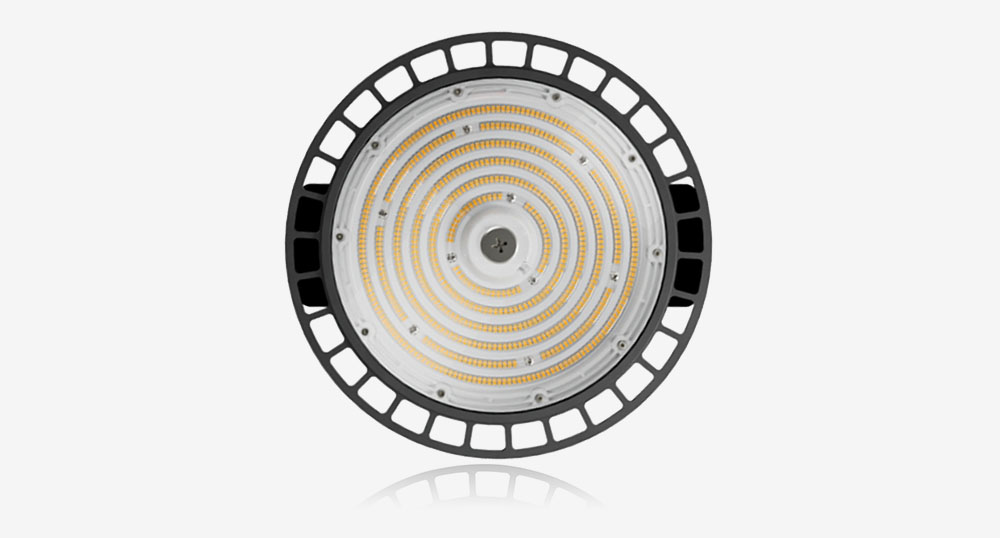

Flat and widened housing design, larger illuminated surface, uniform and comfortable light distribution

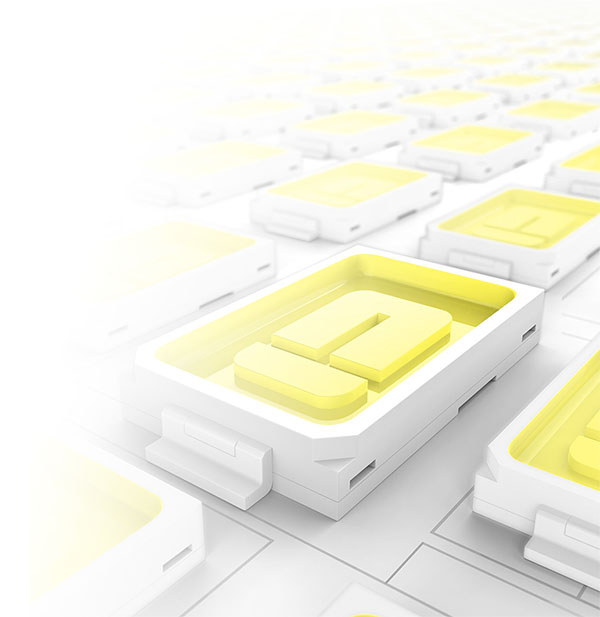

high brightness, low light depreciation, energy saving
≥ 30000 hrs
Durable and reliable
Chromaticity tolerances: SDCM≤5 CRI:Ra≥80

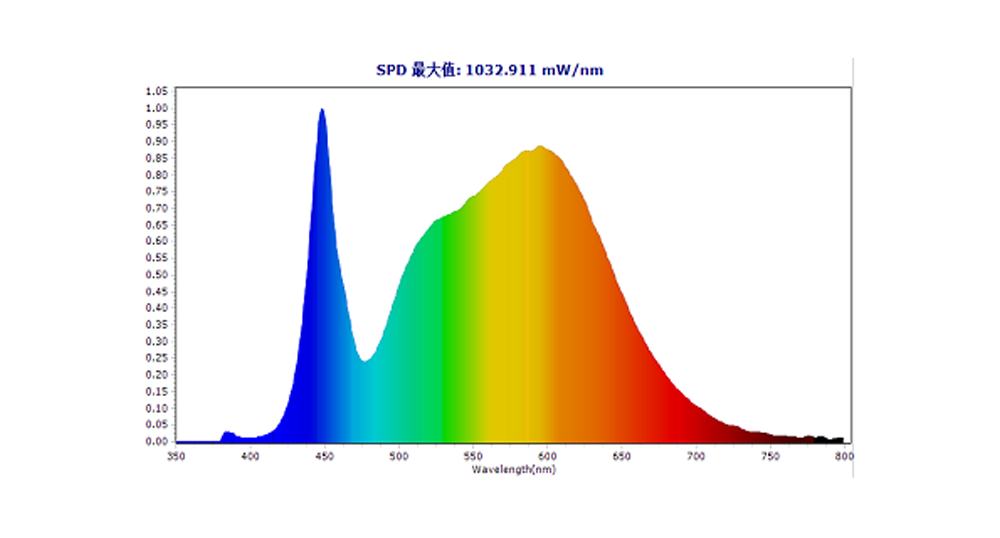

Energy distribution graph
Color rendering index: Ra=83.08 Color fidelity index: Rf =84.67 Color saturation index: Rg =95.83 Full color gamut index (GAI): 91.31
R1=81.3 R2=87.8 R3=93.6 R4=83.5 R5=1.7 R6=83.7 R7=87.0 R8=66.0
R9=8.5 R10=71.7 R11=83.2 R12=63.6 R13=83.4 R14=96.5 R15=75.0

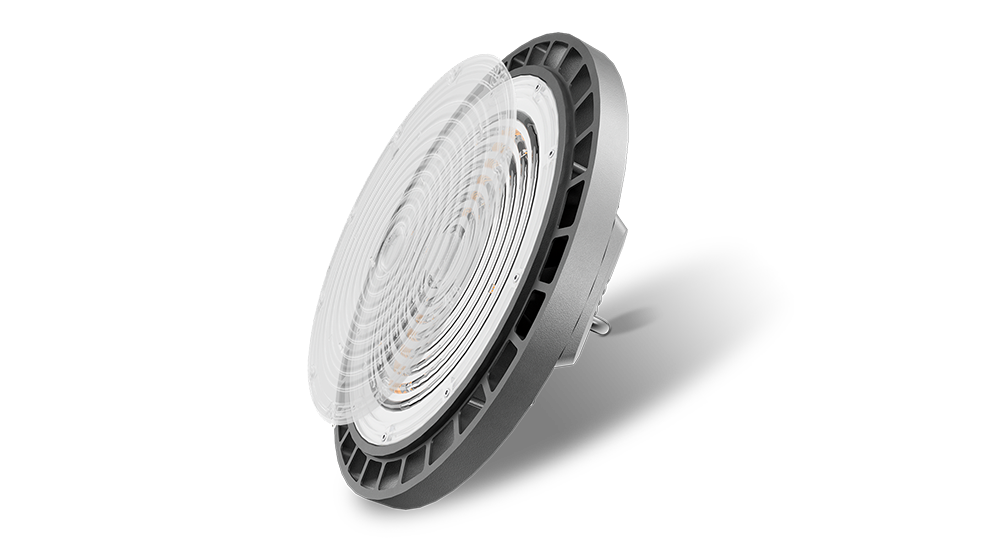

High light transmission, uniform light output
Comfortable lighting with good glare control
The support part between the center of the lens and housing prevent deformation under high temperature.

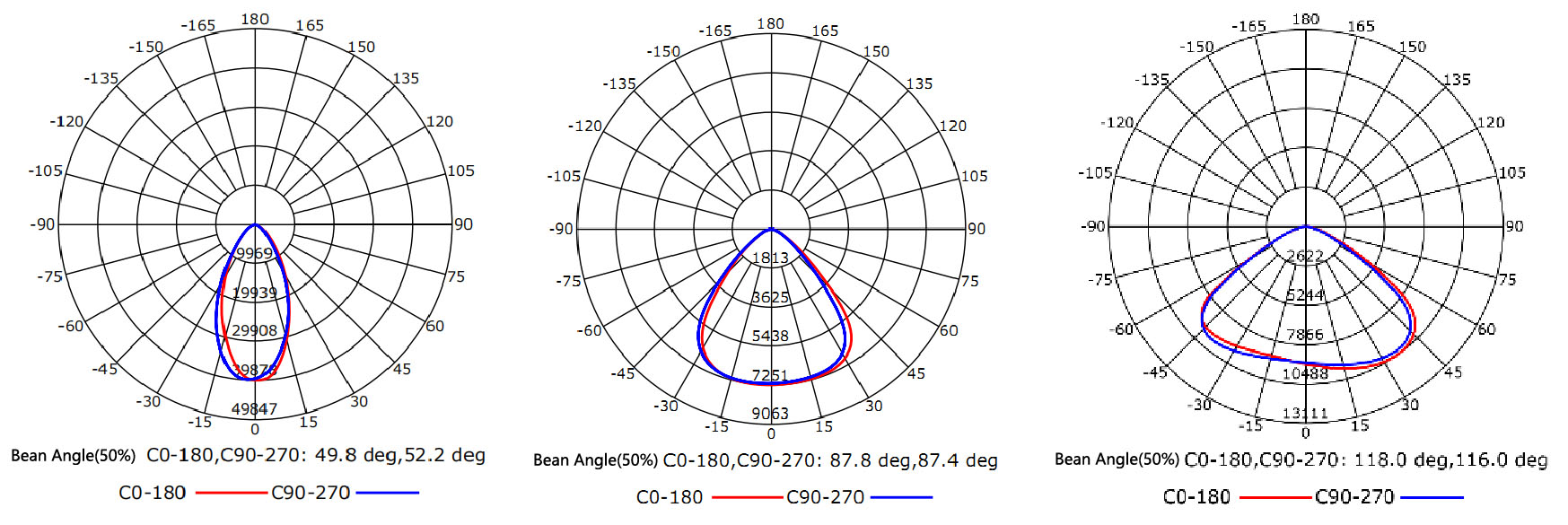

Light distribution curve
Model | CCT | Beam Angle | Lumen Output (lm) | Light Efficiency (lm/W) | Center Light Intensity (cd) |
| U03-100 | 4000K | 90° | 15807 | 161 | 8438 |
| U03-150 | 4000K | 90° | 24500 | 163 | 13004 |
| U03-200 | 4000K | 90° | 33050 | 165 | 17315 |
| U03-240 | 4000K | 90° | 40048 | 168 | 20376 |

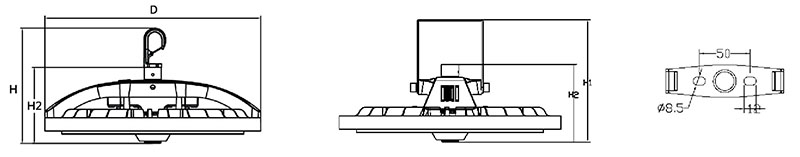

Product size (Unit: mm)
Model | D | H1 | H2 | H3 |
| U03-100 | Ø240 | 168 | 175 | 108 |
U03-150 | Ø290 | 170 | 176 | 110 |
U03-200 | Ø330 | 176 | 183 | 116 |
U03-240 | Ø330 | 176 | 183 | 116 |
Model | U03-100 | U03-150 | U03-200 | U03-240 |
| Power | 100W | 150W | 200W | 240W |
| Power(Tunable) | 60W/80W/100W | 80W/120W/150W | 120W/150W/200W | 150W/200W/240W |
| LED quantity | 168LEDs | 252LEDs | 336LEDs | 420LEDs |
Lumen Output | 15000lm | 22500lm | 30000lm | 36000lm |
| Size（hook & bracket not included) | Ø240×108mm | Ø290×110mm | Ø330×116mm | Ø330×116mm |
| Weight | 1.6kg | 1.8kg | 2.2kg | 2.3kg |
Light efficacy | ≥150lm/W | THD | ＜20% | Protection level | IP65,IK06 |

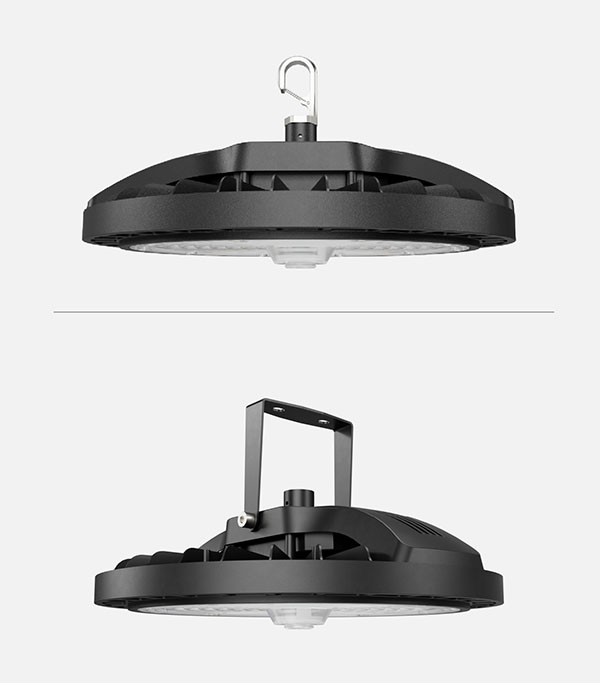

| CCT | 3000K/4000K/5700K/6500K Tunable:4000K/5700K | Isolative protection | Class I | Installation | Suspended mounted/wall mounted/ceiling mounted |
| CRI | Ra≥8 | surge protection | L-N 4KV L/N-PE 6KV | Application | indoor/outdoor |
Chromaticity tolerance | SDCM≤5 | control method | On/off,0-10V,MW/PIR sensing | Operating temperature | -35℃ ~ 50℃ |
Beam angl | 60°/90°/120° | shell material | Housing: die-cast aluminum Light-emitting surface: PC | Storage temperature | -40℃~ 85℃ |
Input voltage | AC120~277V 50/60Hz | surface treatment | Surface spray / black | life | L70@25℃ 30000H |
Power facto | ≥0.92 | Outlet specifications | 3x 1mm² rubber thread（L=240mm） | Standards | GB7000.1-2015/IEC 60598-1：2014 |

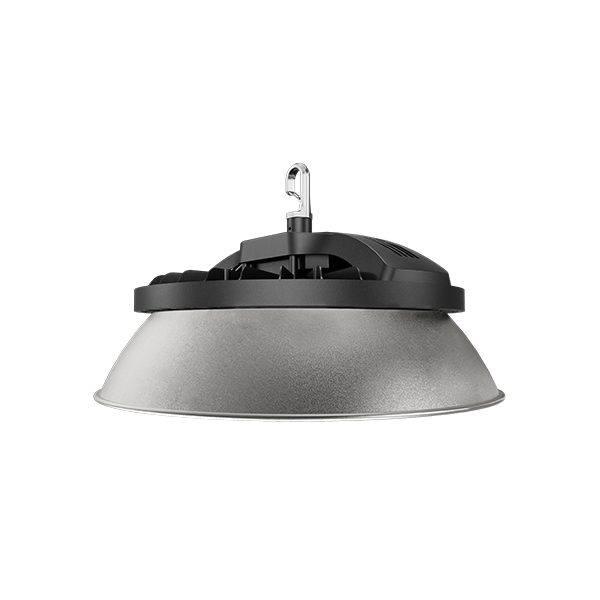

Accessories | Anti-glare reflector, U -shaped bracket | Waterproof method | Structure waterproof | Certification | CCC, CE |
