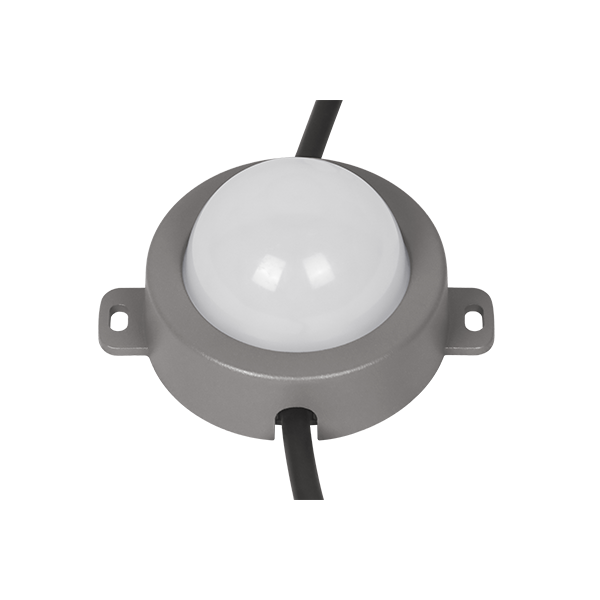

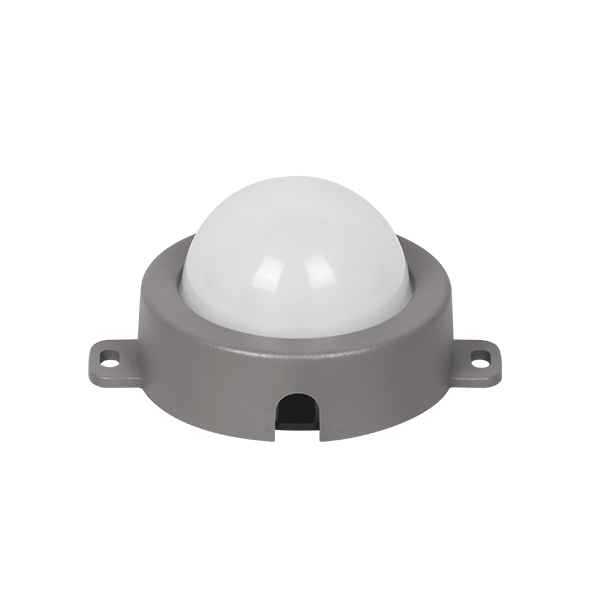

Hipo Lighting HDM-411 is a high-performance LED point light source for outdoor architectural lighting and outdoor landscape lighting.

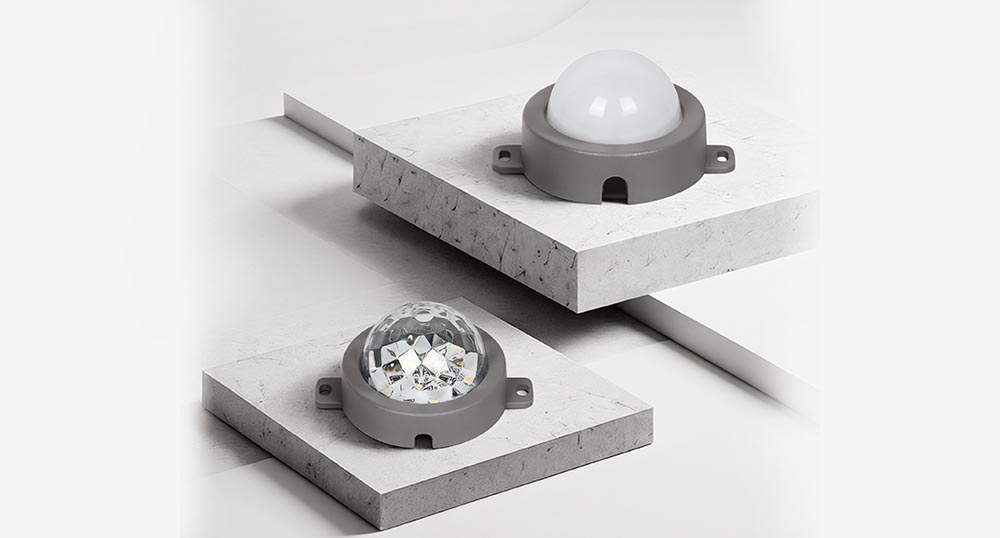

This product has two modes: PC milky white cover and PC prism cover, providing two power supply schemes of DC24V/DC48V. The control mode adopts on/off control or DMX512 programmable control, and the best lighting scheme can be selected according to different projects.
It is produced according to strict industrial production standards, made of aluminum alloy and PC engineering plastic, with IP66 waterproof performance, and has passed 500 hours of salt spray test. It can work stably in an environment temperature between -30 ℃ and 45 ℃. This product has passed CQC certification and has good structural adaptability. It is easy to install and can be installed in different environments such as ancient roof tiles, landscape columns, trees, commercial districts, tourist attractions, etc.

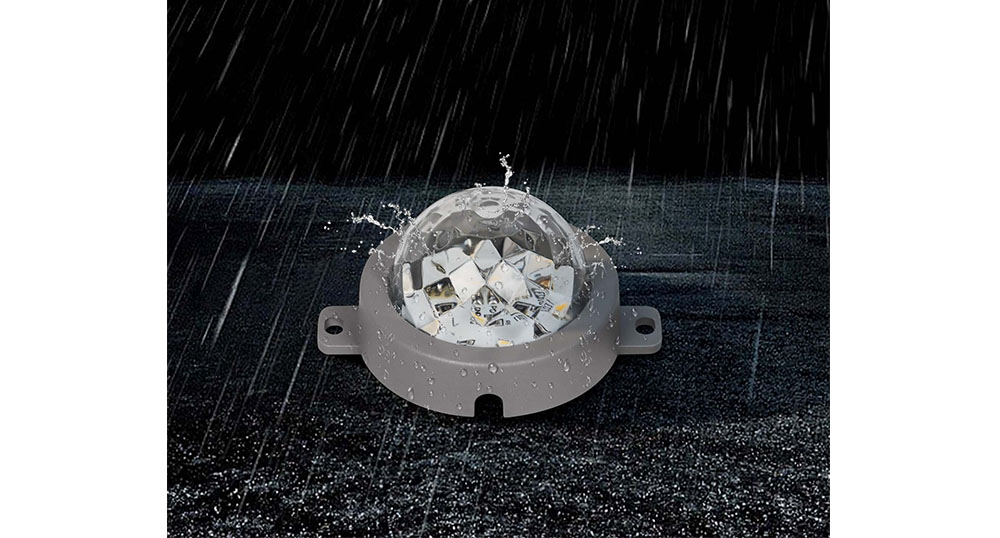

IP65 Waterproof Rating
Superior outdoor waterproof performance ensures stable operation in rainy weather and extended service lifespan.
Corrosion-proof
Excellent corrosion resistance. It has undergone 500-hour neutral salt spray test and fits well in coastal areas with severe corrosion.
Operating temperature
Strong environmental adaptability. Operating temperature: -30℃ to 45℃, compatible with climates nationwide.
Adopting die-cast aluminum combined with PC material, the product delivers excellent heat dissipation, impact resistance and aging resistance.
The eco-friendly PC material ensures safety, durability, dust and water resistance.

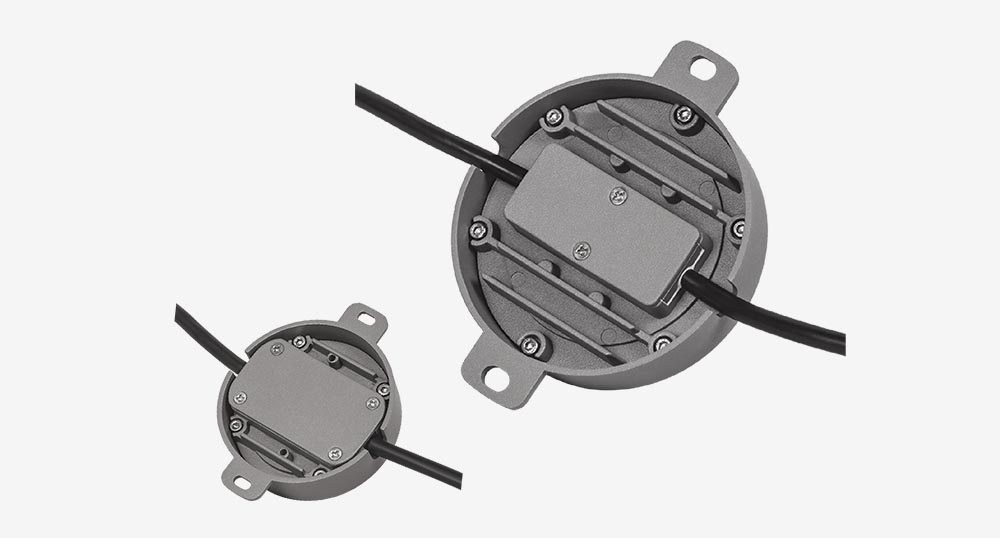

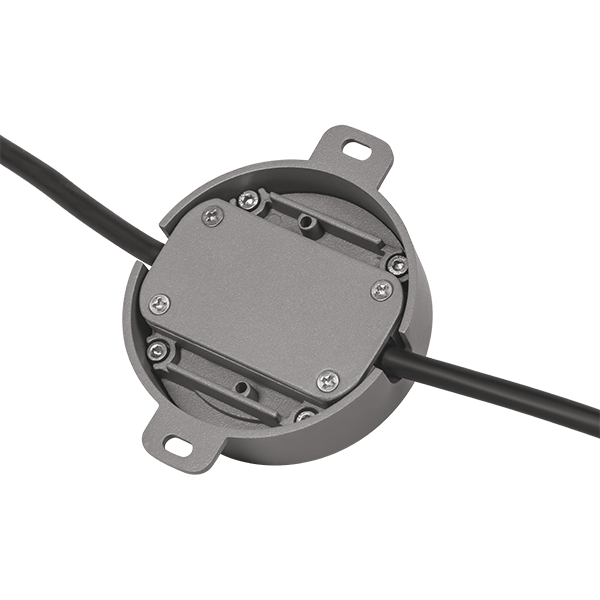

Hidden wiring design
Recessed outlet at base keeps wires concealed for neat look and enhanced waterproof sealing.

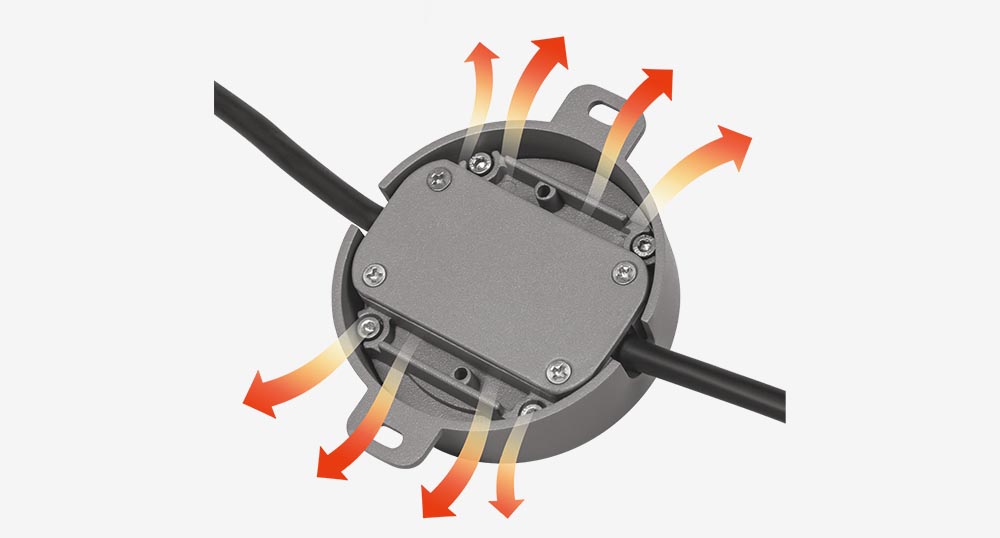

High-efficiency heat dissipation
Die-cast aluminum body with optimized structure ensures stable operation of lamp beads.

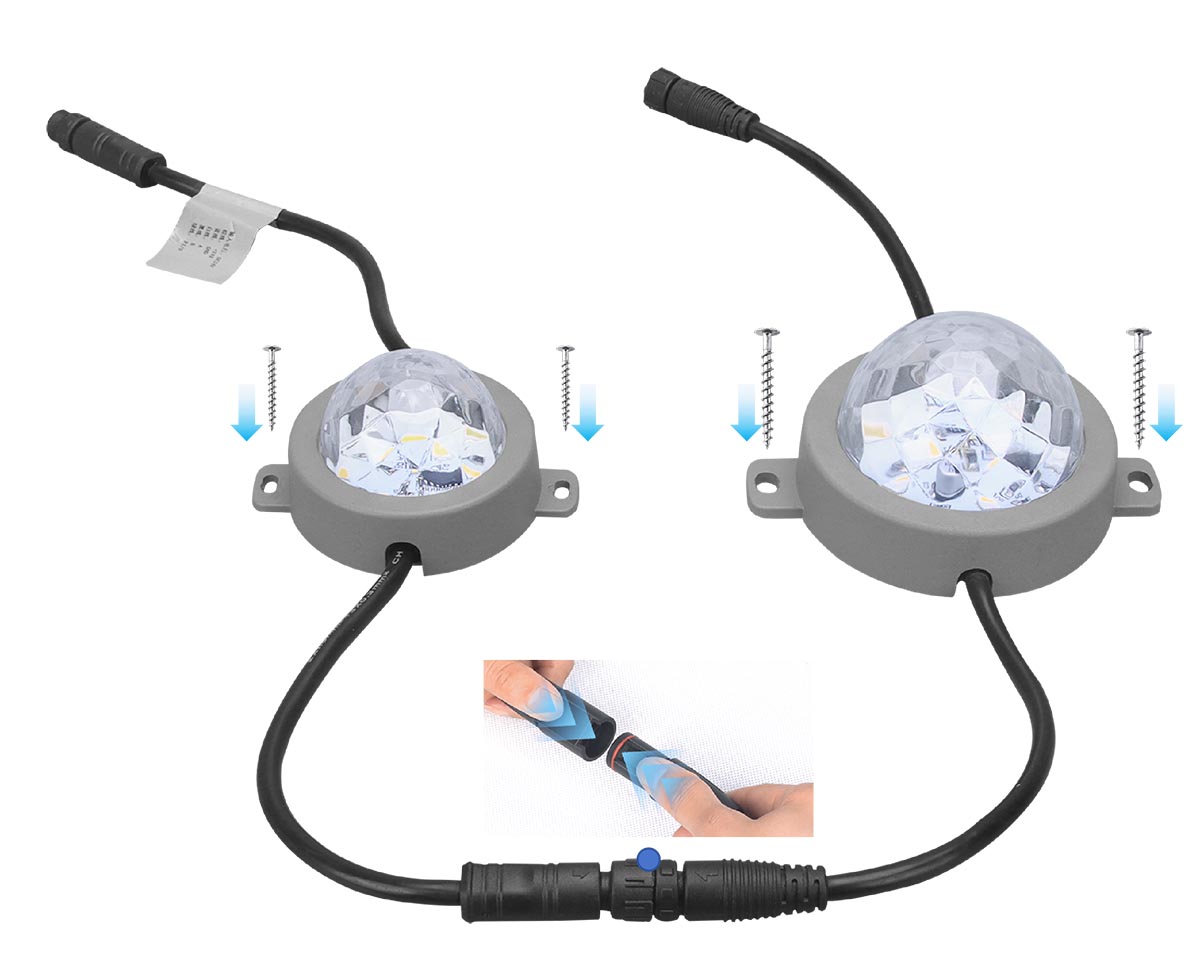

Easy installation
The fixture is fixed directly with screws.
Wiring connection is easy and convenient
Simply match and connect the male and female connectors.
Installation Instructions

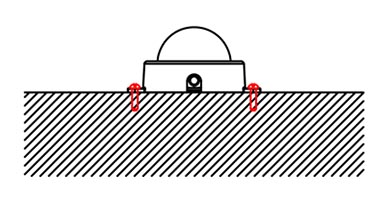

1.Fasten the luminaire with screws.

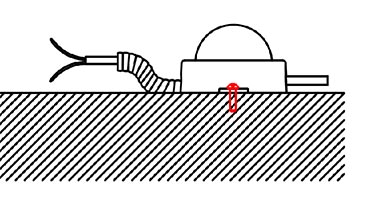

2.Fit metal conduit over the input cable of the luminaire.

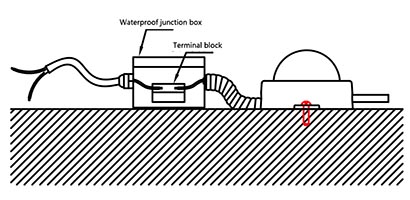

3.Connect the luminaire input end to the power supply end via the waterproof junction box.

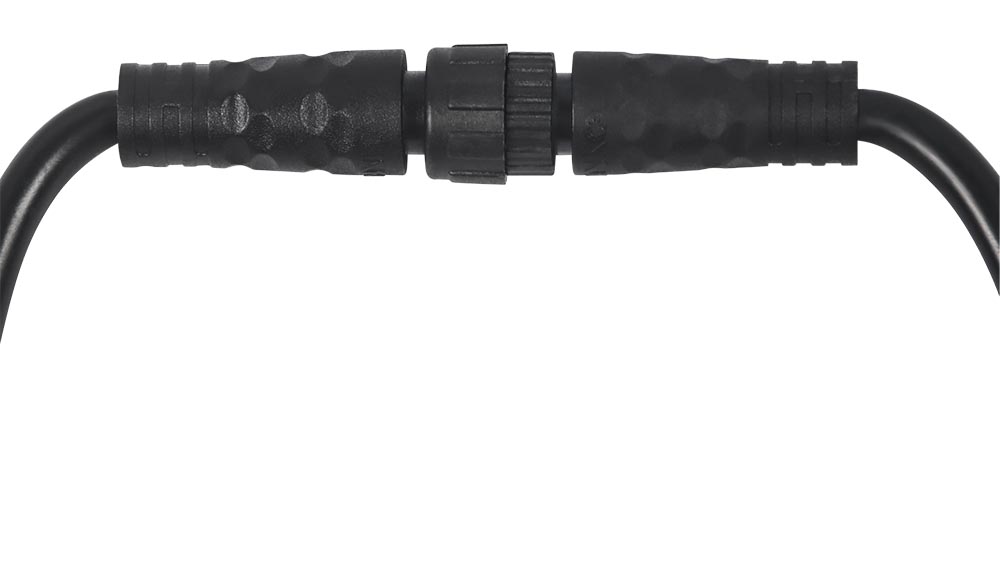

M12 Waterproof Connector
Comes with M12 quick plug-and-play waterproof connector for easy installation and high protection level.

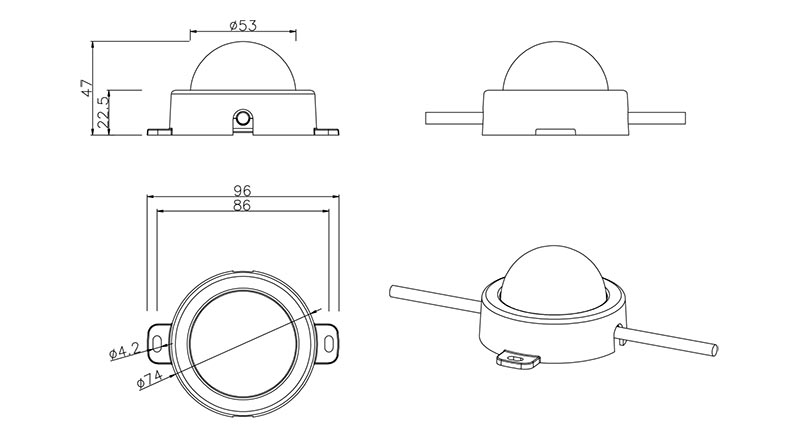

| Model | HDM-411 |
| Light Source | 12/16pcs |
| CCT | 3000K/RGBW3000K |
| Beam Angle | 120° |
| CRI | 80/80(W) |
| Housing Material | Die-cast Aluminum + PC |
| Color | Sand Gray |
| Emitting Surface | PC Prismatic Cover / PC Opal Cover |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Power | 3W/6W |
| Operating Voltage | DC24V/DC48V |
| Control Mode | On-Off/DMX1 |
| Bracket Type | Base Mounting |
| Neutral Salt Spray | 500h |
| Operating Environment | -30~45℃ |
| Warranty | 30000h |
